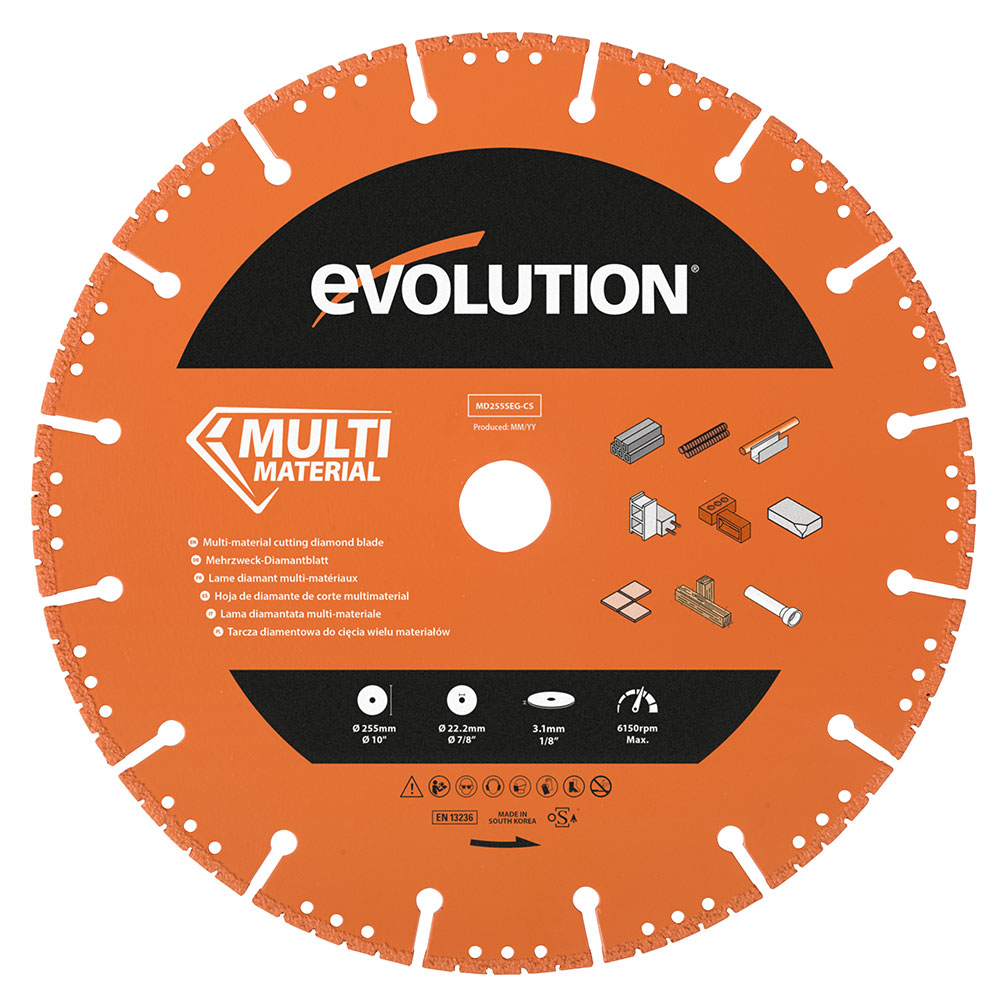

Evolution MD255SEG-CS | 10 in. | Segmented Edge | 7/8 in. Arbor | Multi-Purpose, Metal Cutting Diamond Blade
Evolution MD255SEG-CS | 10 in. | Segmented Edge | 7/8 in. Arbor | Multi-Purpose, Metal Cutting Diamond Blade
SKU: MD255SEG-CS
EAN/UPC: 00849713091598
- Multi-material Cutting: One saw & One blade will cut most common building materials including ferrous & non-ferrous metals, reinforced concrete, bricks, tiles, plastics & more saving you time and money
- 30x Longer Life: Up to 30x longer blade life than abrasive discs when cutting metal Diamond cutting edge is incredibly tough and can make over 1,000 cuts through steel
- Constant Diameter: Steel blade body with diamond cutting edge maintains its full diameter so you have maximum cutting capacity for the lifetime of the blade
Specifications
| Blade Size | 10 In. |
| Number Of Teeth | 16 |
| Bore | 7/8 In. |
| Kerf | 0.122 In. |
Evolution MD255SEG-CS | 10 in. | Segmented Edge | 7/8 in. Arbor | Multi-Purpose, Metal Cutting Diamond Blade
$140.00
Save
$0.00
Only 5 left!
Frequently Bought Together
Videos
- Description
- Downloads
Description
Multi-material cutting diamond edge blade offers versatile cutting and superior blade life.
- Compatible with the R255DCT Concrete Cutting Saw
- Multi-material Cutting: One saw & One blade will cut most common building materials including ferrous & non-ferrous metals, reinforced concrete, bricks, tiles, plastics & more saving you time and money.
- 30x Longer Life: Up to 30x longer blade life than abrasive discs when cutting metal. Diamond cutting edge is incredibly tough and can make over 1,000 cuts through steel.
- Constant Diameter:Steel blade body with diamond cutting edge maintains its full diameter so you have maximum cutting capacity for the lifetime of the blade.
- Cleaner & Safer: The steel body won’t shatter, unlike abrasives, which can cause serious injury. Less dust, less sparks & less odour vs abrasive discs, make this a safer cutting solution.
- Cooling holes close to the edge expel heat to maintain optimum cutting performance.
- Heavily concentrated diamonds give a coarser cutting edge compared to standard diamond blades.
- Superior quality diamonds for longer blade life.
- Segmented rim design with sub-segmented cutting edge improves efficiency & removes debris from the cut.
- Thick body plate strengthens the blade for stability and accuracy.
Specifications
| Dia. Ø: | 10 in. |
| Max. Speed: | 6150 RPM |
| Bore / Arbor Ø: | 7/8 in. |
| Rim: | Segmented |
| Base Thickness: | 0.071 in. |
| Segment / Tooth Thickness: | 0.122 in. |
| Segment / Tooth Height: | 0.118 in. |
| Segment / Tooth Quantity: | 16 |
| Sub-Segment / Tooth Quantity: | 80 |
Downloads
-
Instruction Manual
Download
Description
Description
Multi-material cutting diamond edge blade offers versatile cutting and superior blade life.
- Compatible with the R255DCT Concrete Cutting Saw
- Multi-material Cutting: One saw & One blade will cut most common building materials including ferrous & non-ferrous metals, reinforced concrete, bricks, tiles, plastics & more saving you time and money.
- 30x Longer Life: Up to 30x longer blade life than abrasive discs when cutting metal. Diamond cutting edge is incredibly tough and can make over 1,000 cuts through steel.
- Constant Diameter:Steel blade body with diamond cutting edge maintains its full diameter so you have maximum cutting capacity for the lifetime of the blade.
- Cleaner & Safer: The steel body won’t shatter, unlike abrasives, which can cause serious injury. Less dust, less sparks & less odour vs abrasive discs, make this a safer cutting solution.
- Cooling holes close to the edge expel heat to maintain optimum cutting performance.
- Heavily concentrated diamonds give a coarser cutting edge compared to standard diamond blades.
- Superior quality diamonds for longer blade life.
- Segmented rim design with sub-segmented cutting edge improves efficiency & removes debris from the cut.
- Thick body plate strengthens the blade for stability and accuracy.
Specifications
| Dia. Ø: | 10 in. |
| Max. Speed: | 6150 RPM |
| Bore / Arbor Ø: | 7/8 in. |
| Rim: | Segmented |
| Base Thickness: | 0.071 in. |
| Segment / Tooth Thickness: | 0.122 in. |
| Segment / Tooth Height: | 0.118 in. |
| Segment / Tooth Quantity: | 16 |
| Sub-Segment / Tooth Quantity: | 80 |
Specifications
Specifications
Downloads
Downloads
-
Instruction Manual
Download
