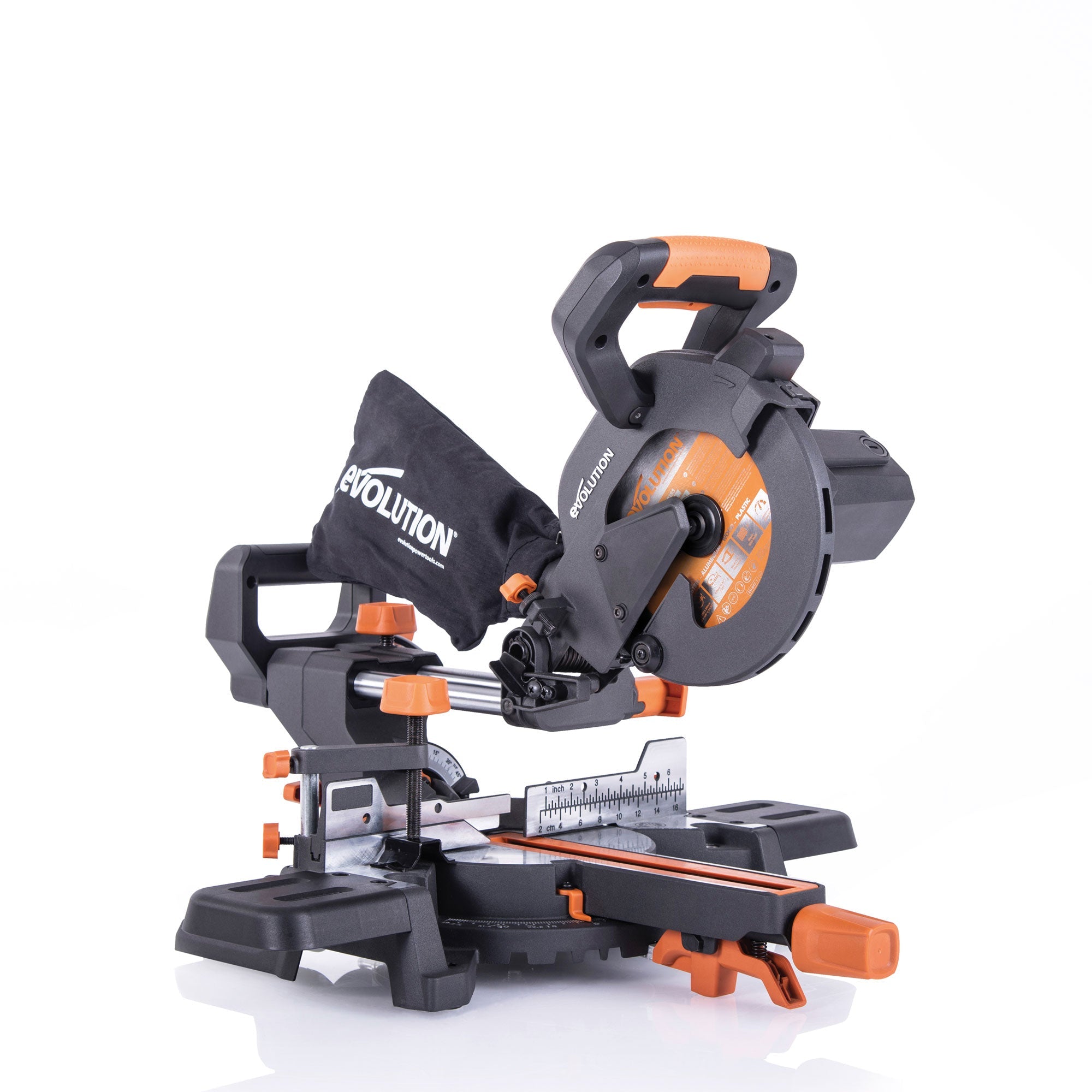

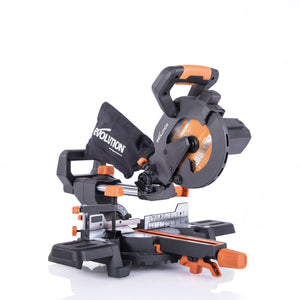

Evolution R185SMS+: Single Bevel Sliding Miter Saw With 7-1/4 in. Multi-Material Cutting Blade
$279.00
×
Evolution R185SMS+: Single Bevel Sliding Miter Saw With 7-1/4 in. Multi-Material Cutting Blade
SKU: R185SMS+
EAN/UPC: 849713090379
- Multi-Material Cutting: Includes 7-1/4" TCT blade.
- Accurate Cuts: Laser guide, adjustable depth, 9 miter stops.
- Flexible Angles: 50° miter, 0°-45° bevel, 8-1/4" x 2-1/4" crosscut.
- Portable: Lightweight, carry handles, dust collection, 10ft power cable. Read more
Specifications
| Blade Size | 7-1/4 In. |
| Warranty | 3 Years |
| Power Type | Corded |
| Max Mitre |
|
3 Years Year Warranty Register Your Warranty
45 Day Returns
Earn 280 EVO Points + 5% off your first order
$279.00
* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes cannot be used in the same order.
Frequently Bought Together
Description
Light-weight, compact and portable miter saw with all the accessories you need to get the job done. Equipped with a 7-1/4inch 20 tooth multi-material cutting, this sliding miter saw shines when cutting 6mm thick mild steel. Features a 50 - 50-degree rotary base for miter and compound cutting and an adjustable depth stop with 8-1/4 inch slide makes light work of trench cutting.
Features

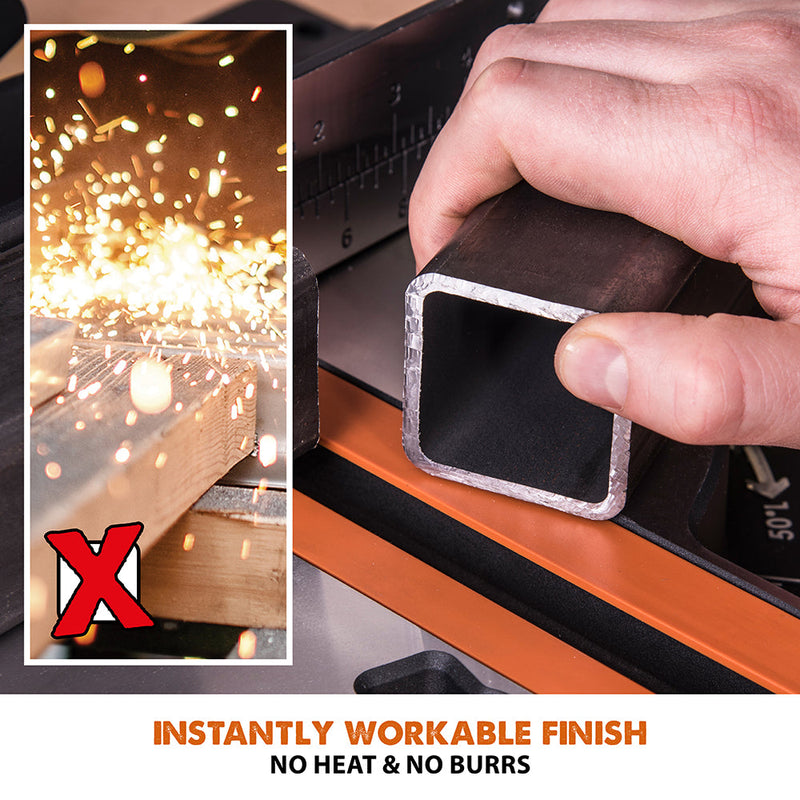

- Multi-Material cutting technology. One saw, one blade, cuts all.*

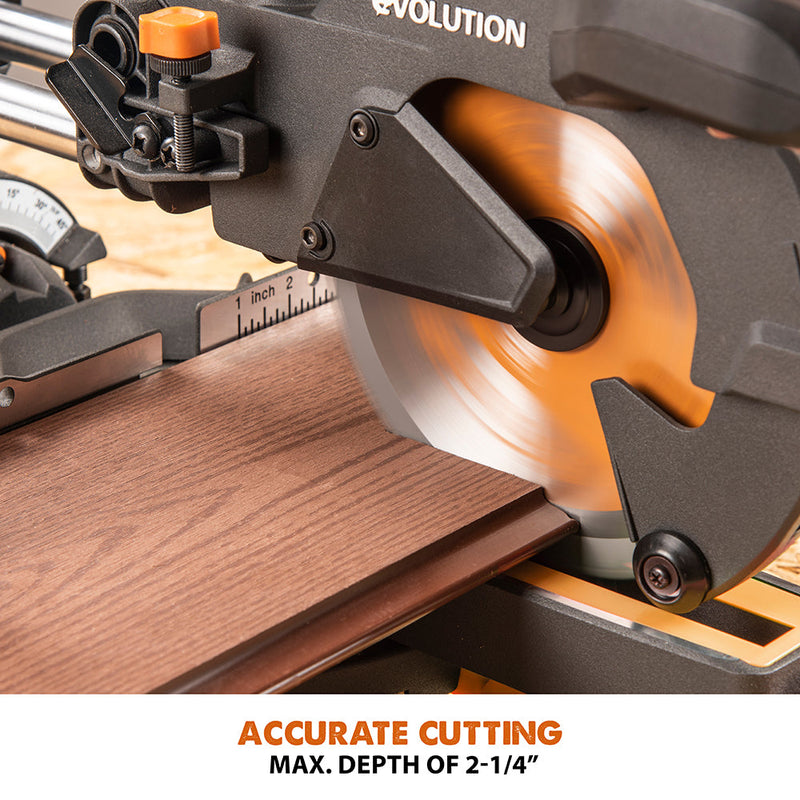

- Accurate cutting with laser guidance, smooth sliding functionality, adjustable depth of cut, and 9 positive miter stops.
- Reliable, smooth square cutting every time in a variety of materials.

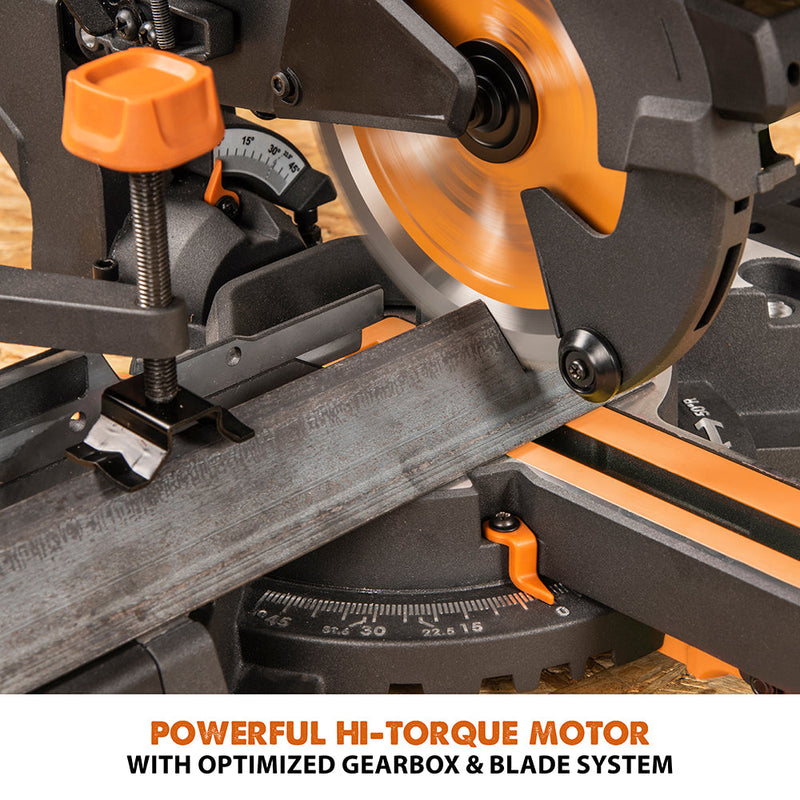

- Powerful 10A hi-torque motor with an optimized gearbox & blade system.

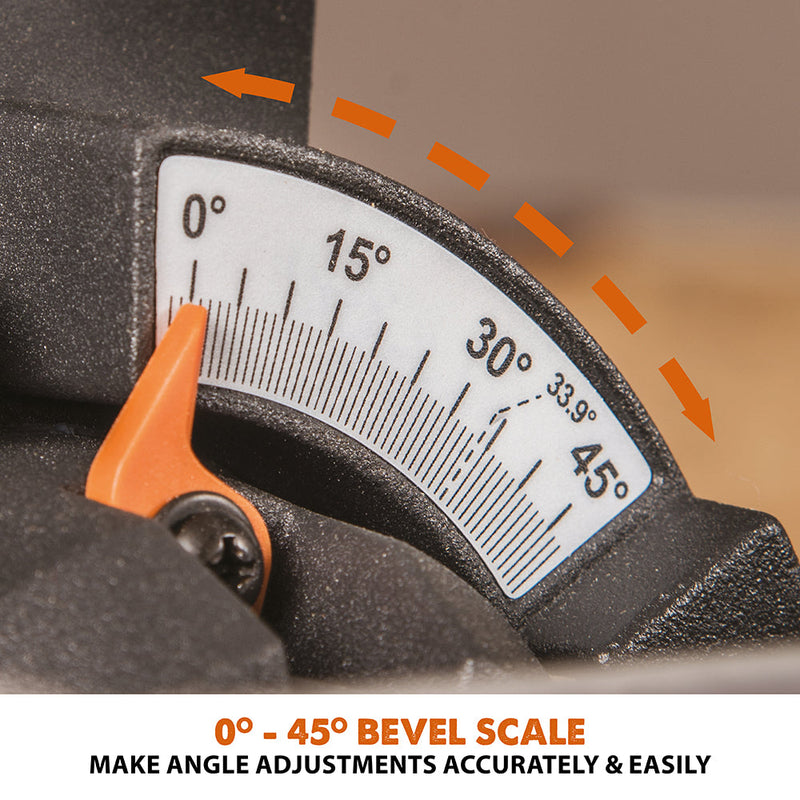

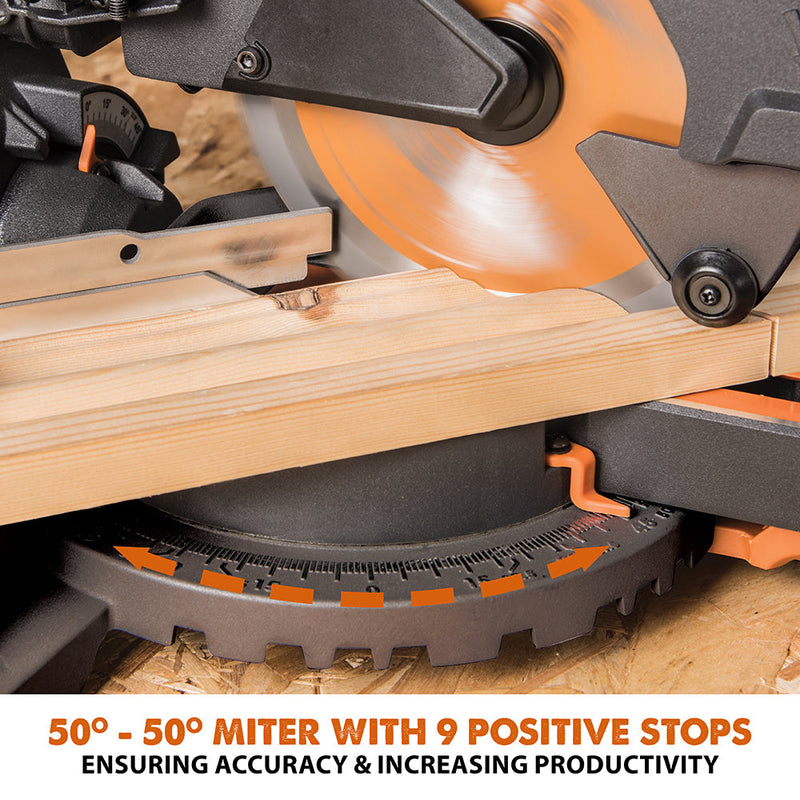

- 0° - 45° bevel tilt and 50˚ - 50˚ miter covers all common cutting angles accurately and easily.
- 8-1/4 x 2-1/4 inch max. crosscut capacity.

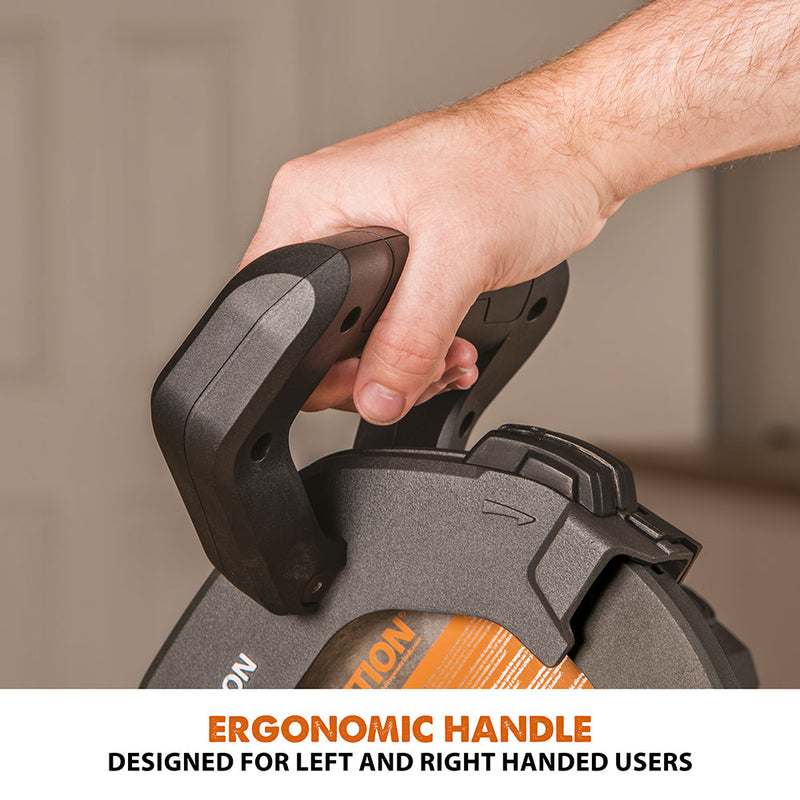

- Ergonomic trigger handle designed for left and right-handed use.

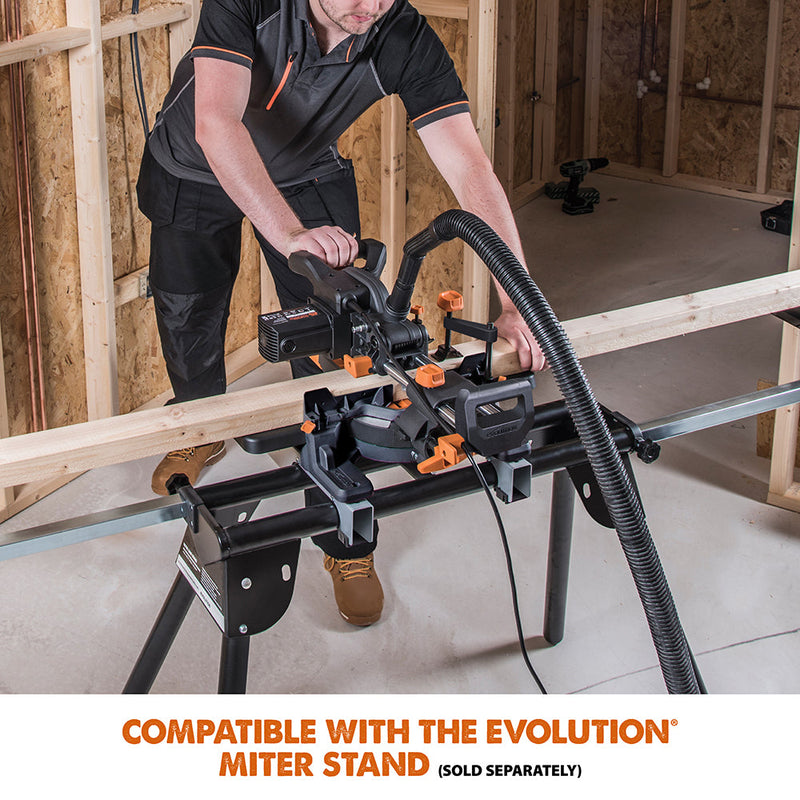

- Compatible with the Evolution Miter Saw Stand.
- Compact, lightweight & robust design, weighing under 20 lbs.
- Japanese Tungsten-Carbide-Tipped (TCT) 7-1/4 inch blade included.
- 3 Year limited warranty.
+PLUS Features

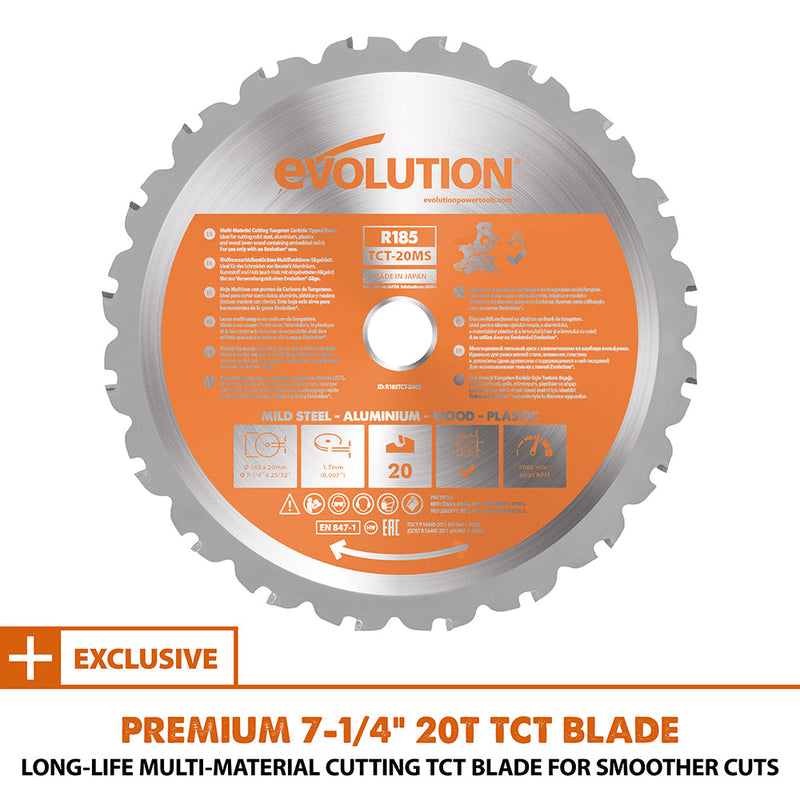

- Premium Japanese Tungsten-Carbide-Tipped (TCT) 7-1/4 inch blade included.

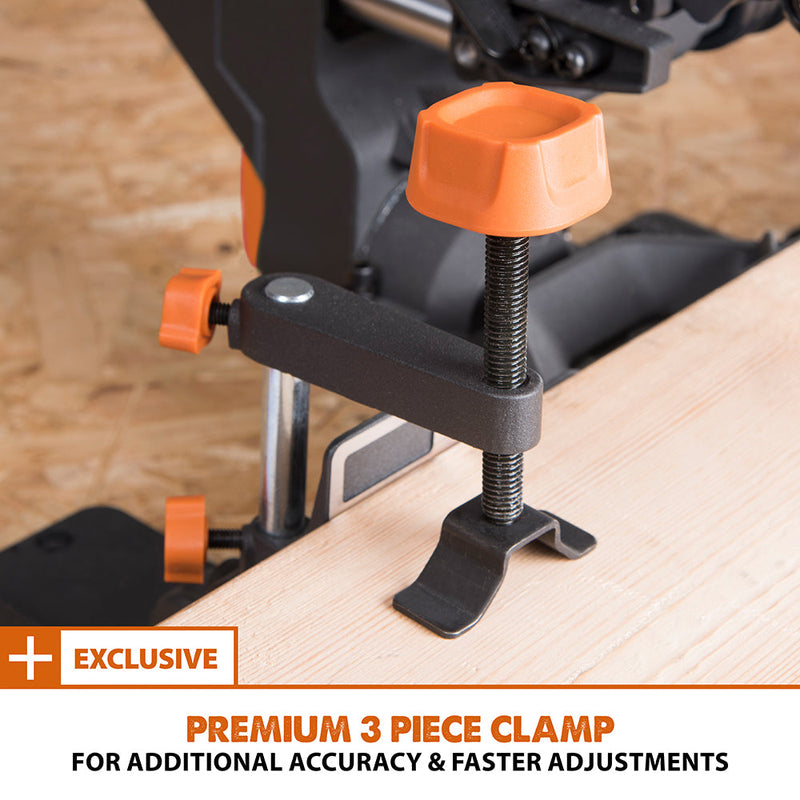

- 3pc clamp included for additional accuracy and faster adjustments.

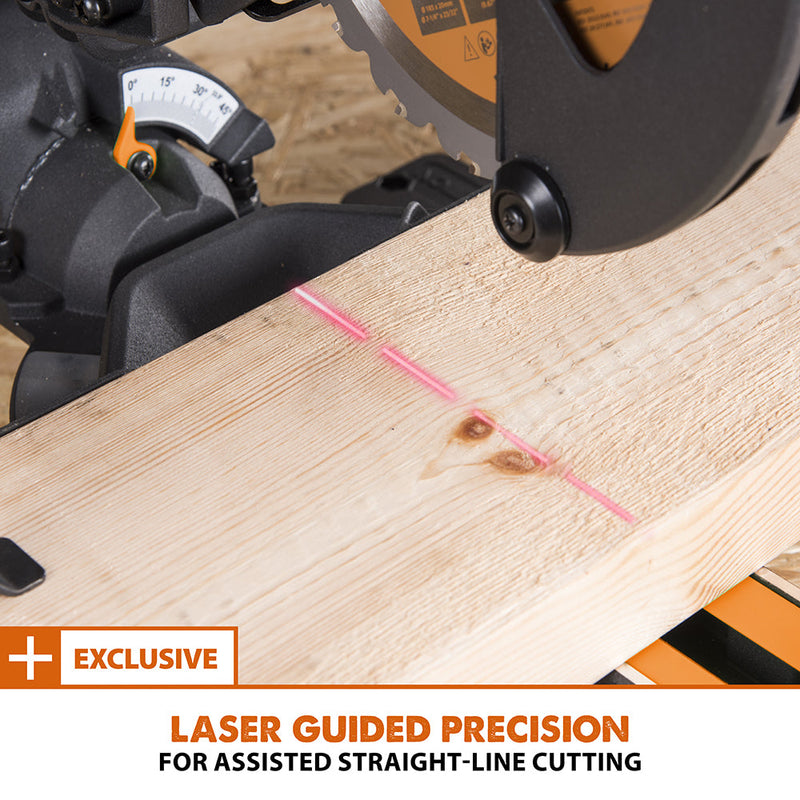

- Laser-Guided Precision for assisted straight-line cutting.

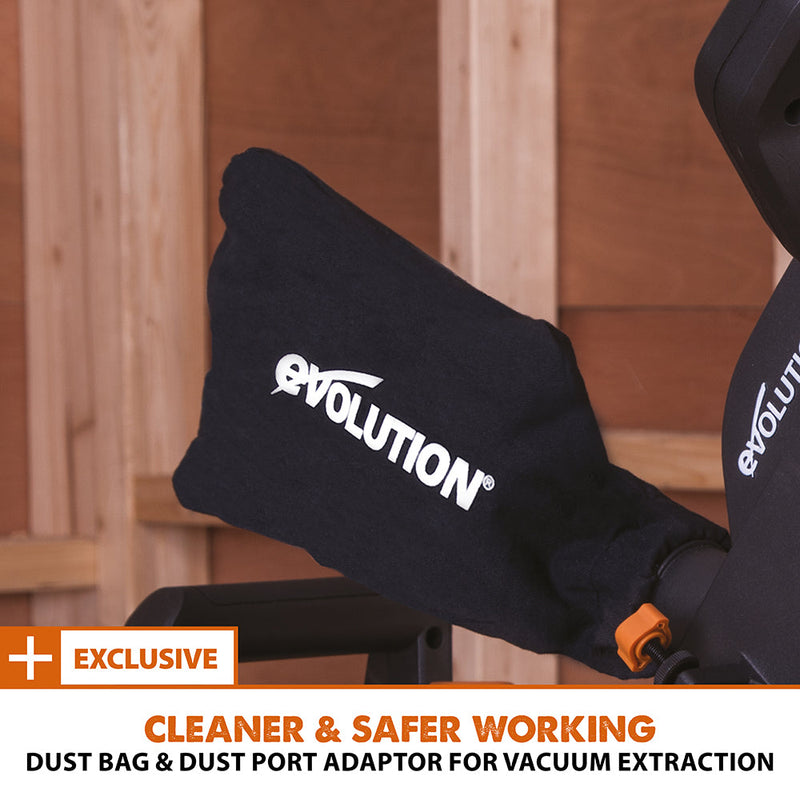

- Cleaner and safer working environment with a dust collection bag and dust port adaptor for use with vacuum extraction.

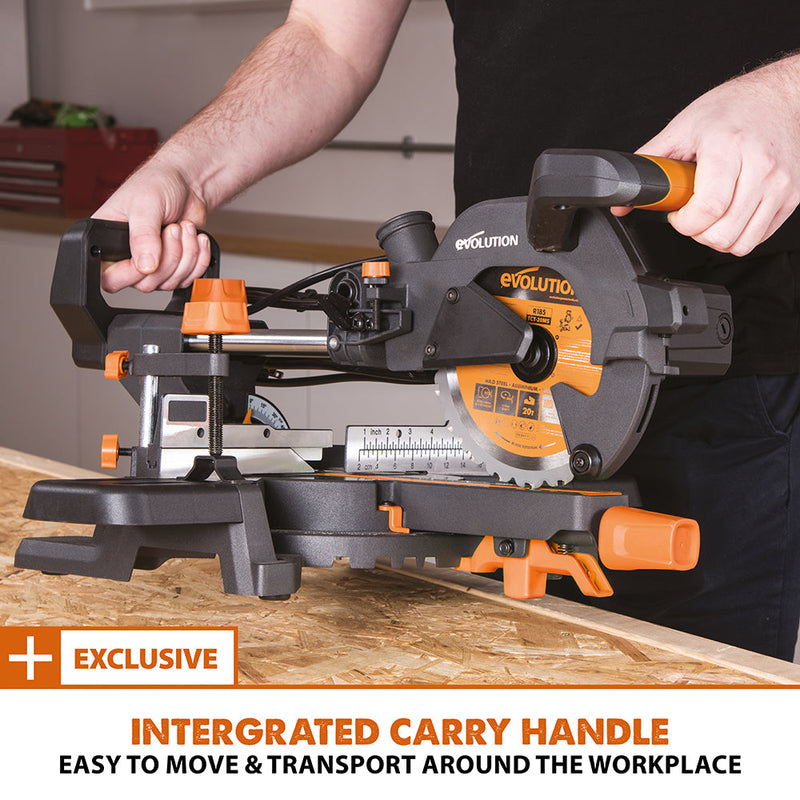

- Integrated carry handles - easy to carry and transport around the workplace.

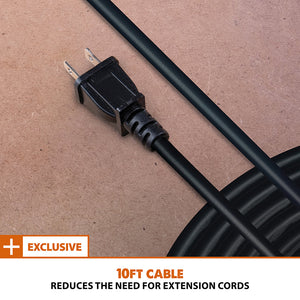

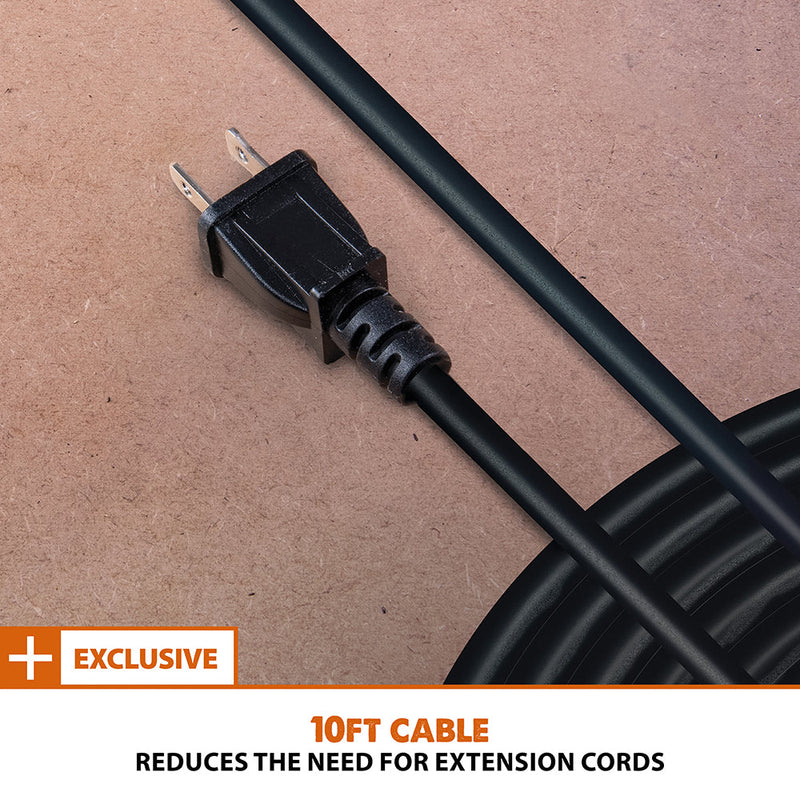

- 10ft power cable reduces the need for extension leads.
Specifications
Machine Spec
| Motor (120V 60Hz): | 10 A |
| Speed No Load: | 3700 rpm |
| Max. Bevel (Left): | 45° |
| Max. Miter: | 50° |
| Cable Length: | 10ft |
Blade Spec
| Blade Dia.: | 7-1/4 In. |
| No. of Teeth: | 20 |
| Bore: | 25/32 In. |
| Kerf: | 0.066 in. |

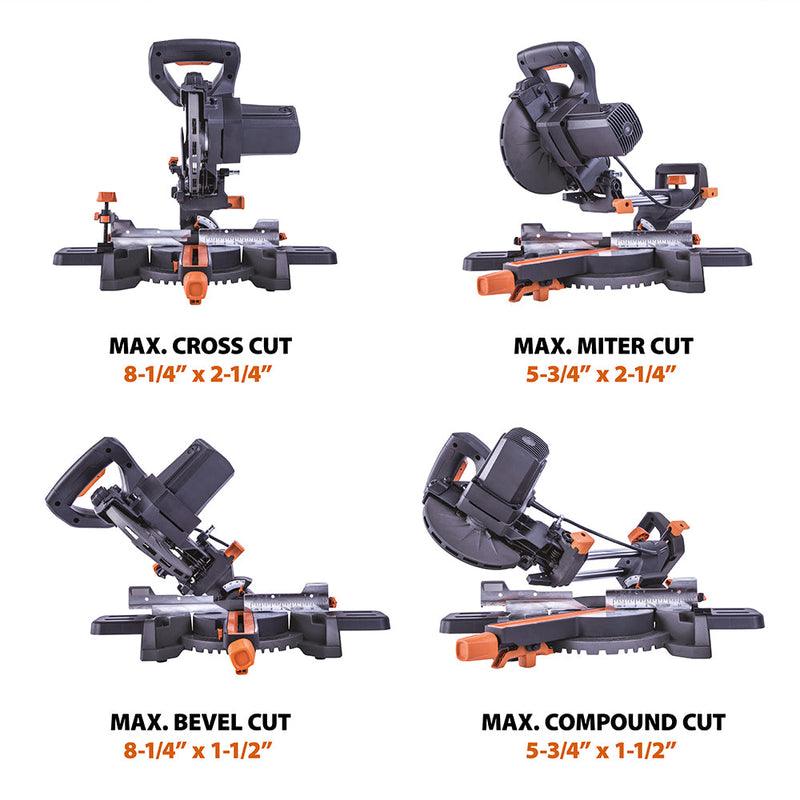

Cutting Capacities
| Max. Cross Cut (0° x 0°): | 8-1/4 In. x 2-1/4 In. |
| Max. Bevel Cut (0° x 45°): | 8-1/4 In. x 1-1/2 In. |
| Max. Miter Cut (45° x 0°): | 5-3/4 In. x 2-1/4 In. |
| Max. Compound Cut (45° x 45°): | 5-3/4 In. x 1-1/2 In. |
| Mild Steel Box Section (Max. Wall Thickness): | 1/4 In. |
| Mild Steel Plate (Max. Thickness): | 1/4 In. |
Dimensions & Weights
| Product Dimensions: | 11-3/8 In. x 23-1/2 In. x 22-1/4 In. |
| Packaging Dimensions: | 17-33⁄64 In. x 17-1⁄8 In. x 12-13⁄32 In. |
| Product Weight: | 19.7lbs |
| Packaged Weight: | 23.5lbs |
Noise Data
| Sound Pressure Level LPA: | 91,9dB(A) K=3 dB(A) |
| Sound Power Level LWA: | 104,9dB(A) K=3 dB(A) |
Items Included
| 20T Multi-Material TCT Blade | 3 Pc Hold Down Clamp |
| Machine Table Extensions | Dust Collection Bag |

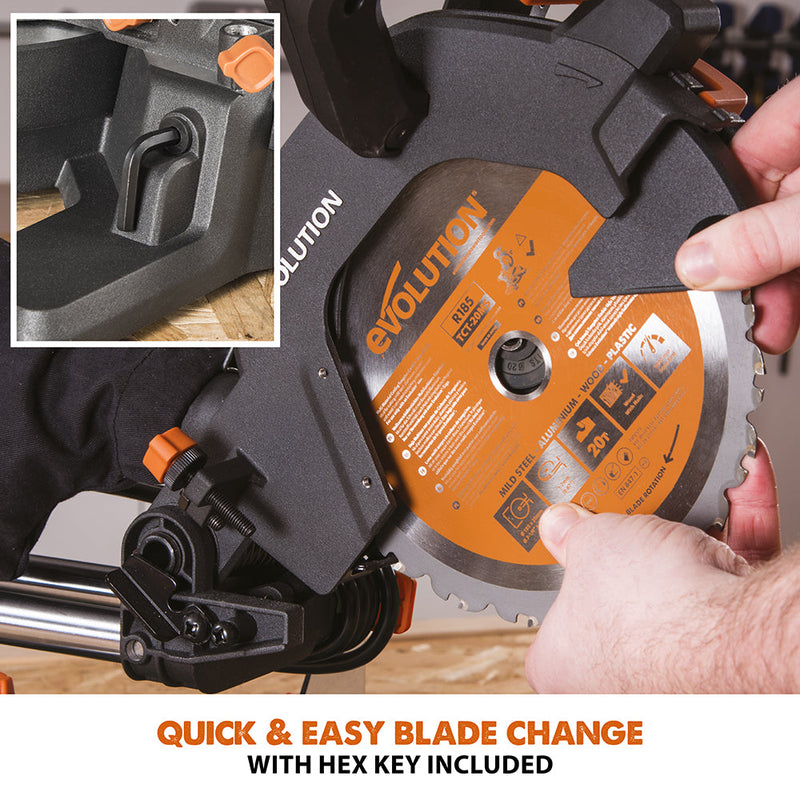

| Double Ended Hex Key (M6 & M4) | Rotary Table And Neck |
| Cutting Head | Carriage Slides |
| Miter Locking Knob | Mains Cable Guide/Clamp (1 Fitted) |
| Self Tapping Cap Screw | Socket Headed Screws (Fitted) |
| Cable Clamp Component | Laser Lens Cap (Fitted) |
| Dust Port Adaptor | Rear Carry Handle |
| 10ft Cable |

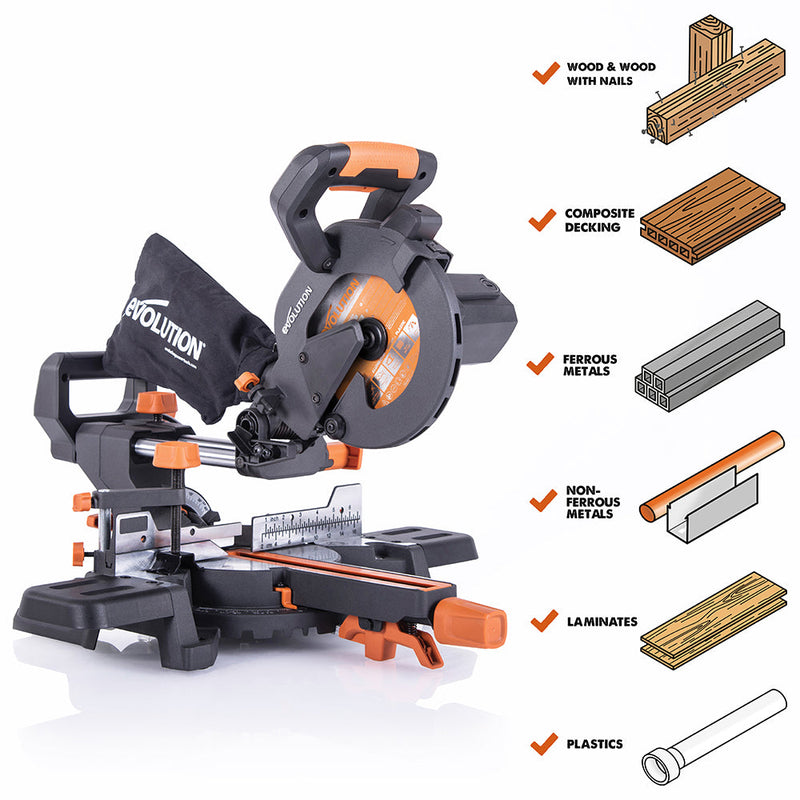

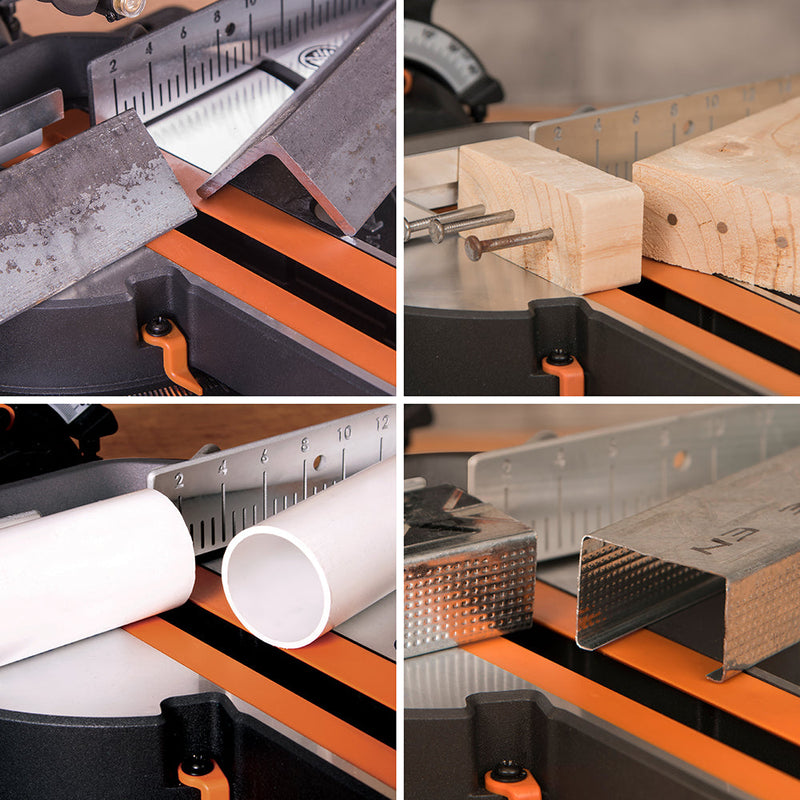

Cutting Applications
| Wood | Hardwood & tanalized decking, MDF laminates, moldings, reclaimed wood with nails, scaffold boards & poles, stud-work. |
| Ferrous Metal | Mild Steel, angled, box section, square tube, metal stud drywalling, rebar, RSJs, plate (1/4 inch), unistrut. |
| Non-Ferrous Metal | Aluminum, armored cables, cable tray, copper, floor edgings, roof flashings, stair nosings. |
| Plastic | Electrical conduit, plastic pipes, plexiglass, rubber & reinforced hoses, (WPC) Wood Plastic Composites. |
| Not Recommended | Hardened high carbon, coated and stainless steel. Note: Cutting galvanized steel may reduce blade life. |
Miter Saw Cross Cut Capacities
| R185SMS+ 7-1/4" Miter Saw |
R255SMS+ 10" Miter Saw |
R255SMS-DB+ 10" Miter Saw |
||
| Max. Cross Cut | 2-1/4" x 8-1/4" (Actual) |
3-9/16" x 11-13/16" (Actual) |
3-1/2" x 11-13/16" (Actual) |
|
| Nominal Size Lumber |
Actual Size Lumber |
|||
| 1" x 2" | 3/4"x 1-1/2" | ✔ | ✔ | ✔ |
| 1" x 3" | 3/4"x 2-1/2" | ✔ | ✔ | ✔ |
| 1" x 4" | 3/4"x 3-1/2" | ✔ | ✔ | ✔ |
| 1" x 5" | 3/4"x 4-1/2" | ✔ | ✔ | ✔ |
| 1" x 6" | 3/4"x 5-1/2" | ✔ | ✔ | ✔ |
| 1" x 7" | 3/4"x 6-1/4" | ✔ | ✔ | ✔ |
| 1" x 8" | 3/4"x 7-1/4" | ✔ | ✔ | ✔ |
| 1" x 10" | 3/4"x 9-1/4" | - | ✔ | ✔ |
| 1" x 12" | 3/4"x 11-1/4" | - | ✔ | ✔ |
| 1-1/4" x 4" | 1" x 3-1/2" | ✔ | ✔ | ✔ |
| 1-1/4" x 6" | 1" x 5-1/2" | ✔ | ✔ | ✔ |
| 1-1/4" x 8" | 1" x 7-1/4" | ✔ | ✔ | ✔ |
| 1-1/4" x 10" | 1" x 9-1/4" | - | ✔ | ✔ |
| 1-1/4" x 12" | 1" x 11-1/4" | - | ✔ | ✔ |
| 1-1/2" x 4" | 1-1/4" x 3-1/2" | ✔ | ✔ | ✔ |
| 1-1/2" x 6" | 1-1/4" x5-1/2" | ✔ | ✔ | ✔ |
| 1-1/2" x 8" | 1-1/4" x 7-1/4" | ✔ | ✔ | ✔ |
| 1-1/2" x 10" | 1-1/4" x 9-1/4" | - | ✔ | ✔ |
| 1-1/2" x 12" | 1-1/4" x 11-1/4" | - | ✔ | ✔ |
| 2" x 2" | 1-1/2" x 1-1/2" | ✔ | ✔ | ✔ |
| 2" x 4" | 1-1/2" x 3-1/2" | ✔ | ✔ | ✔ |
| 2" x 6" | 1-1/2" x 5-1/2" | ✔ | ✔ | ✔ |
| 2" x 8" | 1-1/2" x 7-1/4" | ✔ | ✔ | ✔ |
| 2" x 10" | 1-1/2" x 9-1/4" | - | ✔ | ✔ |
| 2" x 12" | 1-1/2" x 11-1/4" | - | ✔ | ✔ |
| 3" x 6" | 2-1/2" x 5-1/2" | - | ✔ | ✔ |
| 4" x 4" | 3-1/2" x 3-1/2" | - | ✔ | ✔ |
| 4" x 6" | 3-1/2" x 5-1/2" | - | ✔ | ✔ |
| 4" x 8" | 3-1/2" x 7-1/4" | - | ✔ | ✔ |
| 4" x 10" | 3-1/2" x 9-1/4" | - | ✔ | ✔ |
| 4" x 12" | 3-1/2" x 11-1/4" | - | ✔ | ✔ |
| 4" x 14" | 3-1/2" x 13-1/4" | - | - | - |
