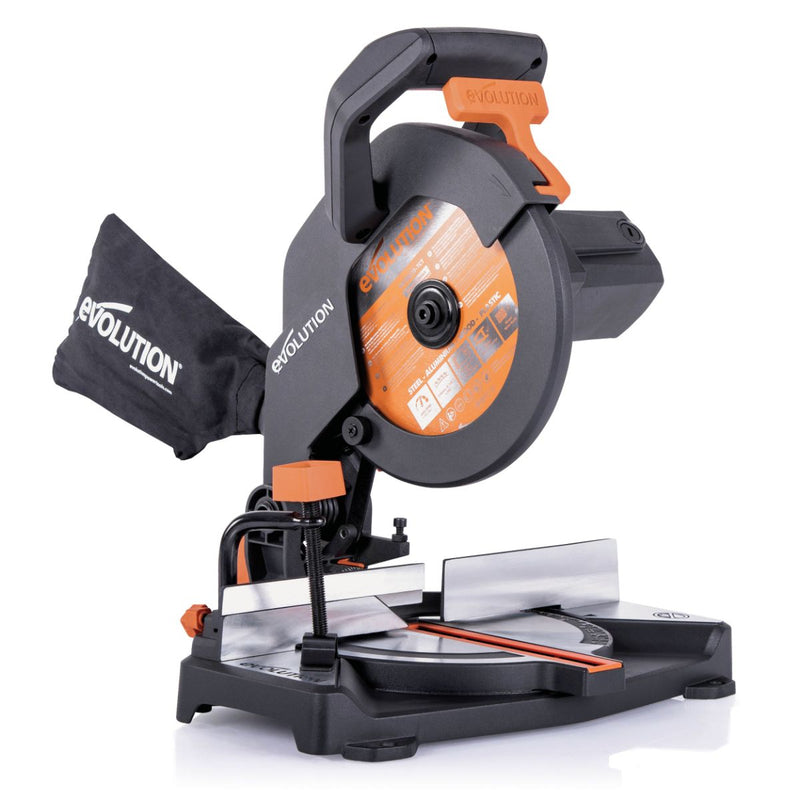

Evolution R210CMS: Compound Miter Saw With 8-1/4 In. Multi-Material Cutting Blade
Evolution R210CMS: Compound Miter Saw With 8-1/4 In. Multi-Material Cutting Blade
SKU: 046-0004A
- TCT Blade: Cuts wood, steel, aluminum, and more.
- Precision: Miter detents and bevel capacity (0-45°).
- Portable: Lightweight, compact with ergonomic handle.
- High Torque Motor: Burr-free, lasts 14x longer than abrasive discs.
Specifications
| Blade Size | 8-1/4 In. |
| Power | Corded |
| Max Mitre |
|
Evolution R210CMS: Compound Miter Saw With 8-1/4 In. Multi-Material Cutting Blade
$235.00
Save
$0.00
In stock
Frequently Bought Together
Videos
- Description
- Specifications
- 3 Years Warranty
- Downloads
Description

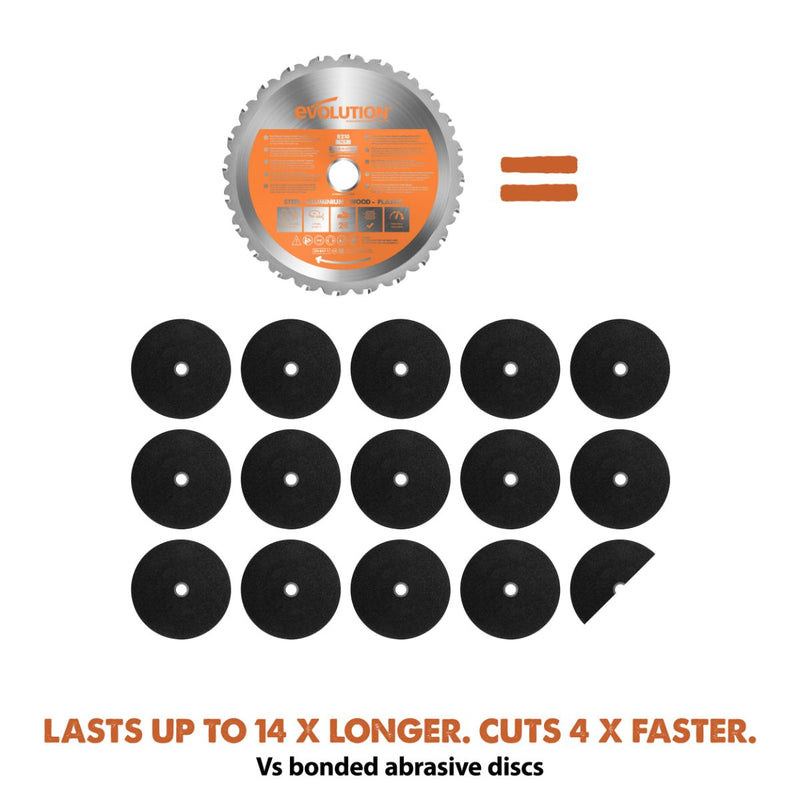

The compact and portable Evolution R210CMS comes loaded with a Premium Japanese Tungsten Carbide-Tipped (TCT) Multi-Material blade and a powerful, high-torque motor and gearbox. This combination produces burr-free cuts through mild steel, lasts up to 14 x longer*, and cuts 4 x times faster than abrasive discs!

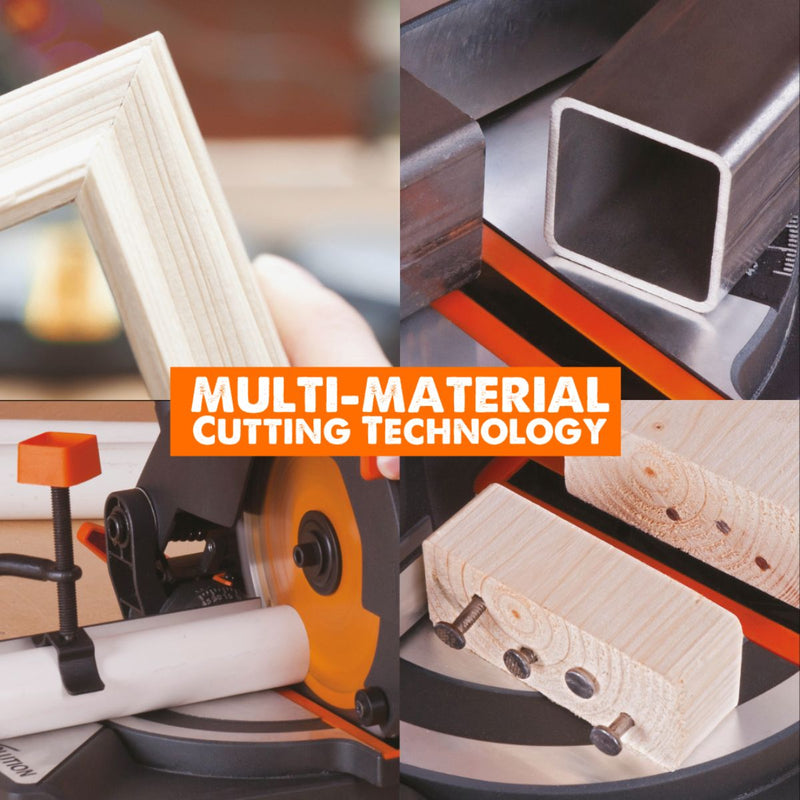

The 8 ¼" Compound Miter Saw with Multi-Material Cutting Capability can cut virtually any common construction material including: Hard & Soft Wood, Reclaimed wood with hidden nails, Mild Steel, Aluminum, Copper, PVC, Composite Decking & more! * Based on internal testing data cutting 2” angle iron. Evolution 14” Multi-Material blades averaged 1000 cuts per blade. 14” abrasive discs averaged 69 cuts per blade.

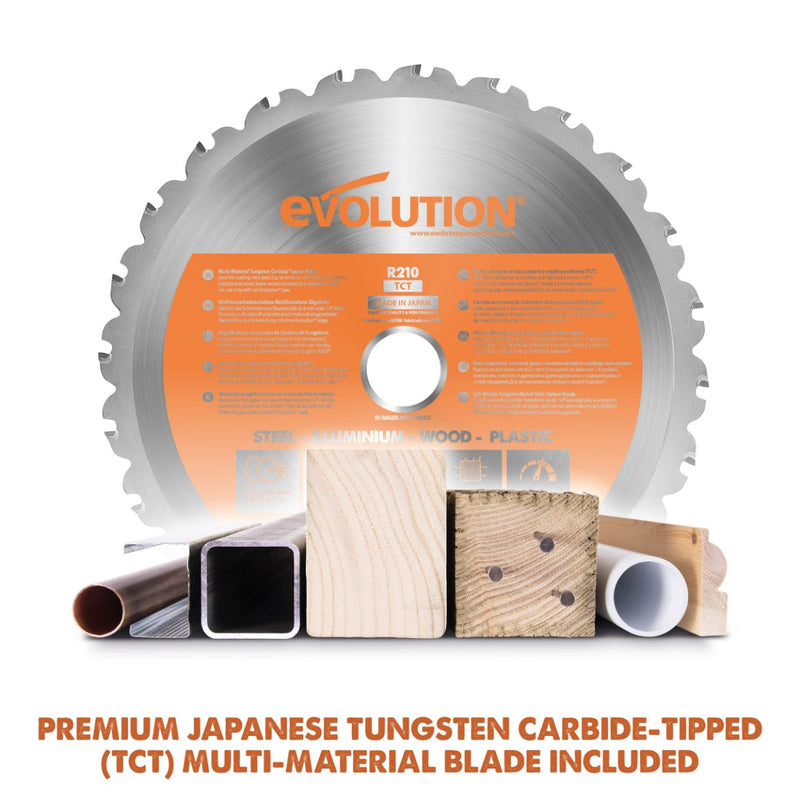

- 8-1/4” Premium Japanese Tungsten Carbide Tip Blade
- Miter detents at 0, 15, 22.5, 30 and 45 degrees

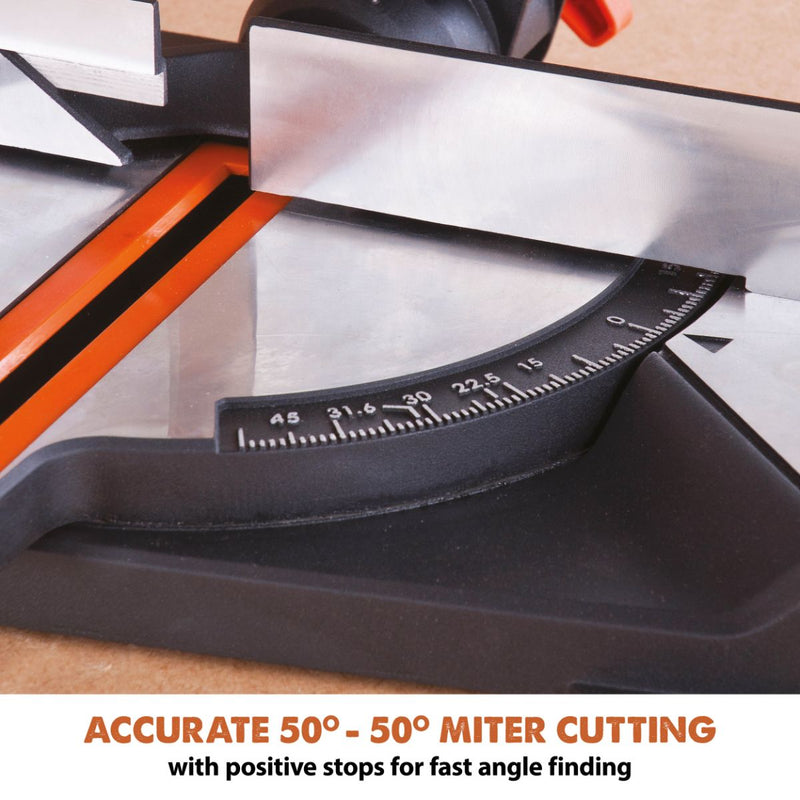

- Accurate miter table with 9 positive stops for fast angel finding.

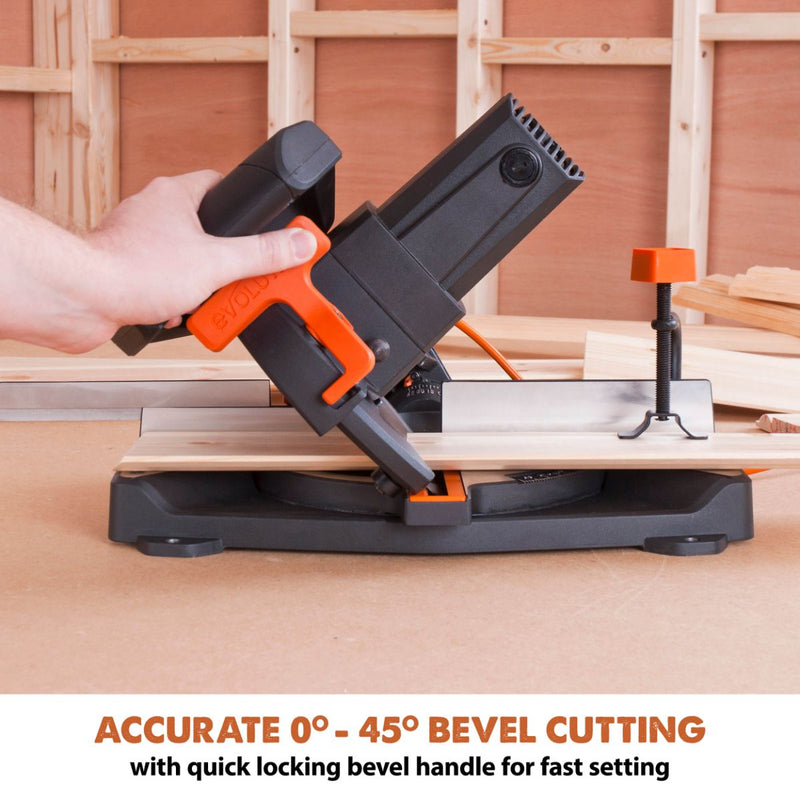

- Bevel capacity range from 0-45
- Strong cast aluminum base with bench mounting holes.
- Head lock-down pin for safe and compact storage.
- Ergonomic horizontal handle and trigger provides comfort over long periods of use.

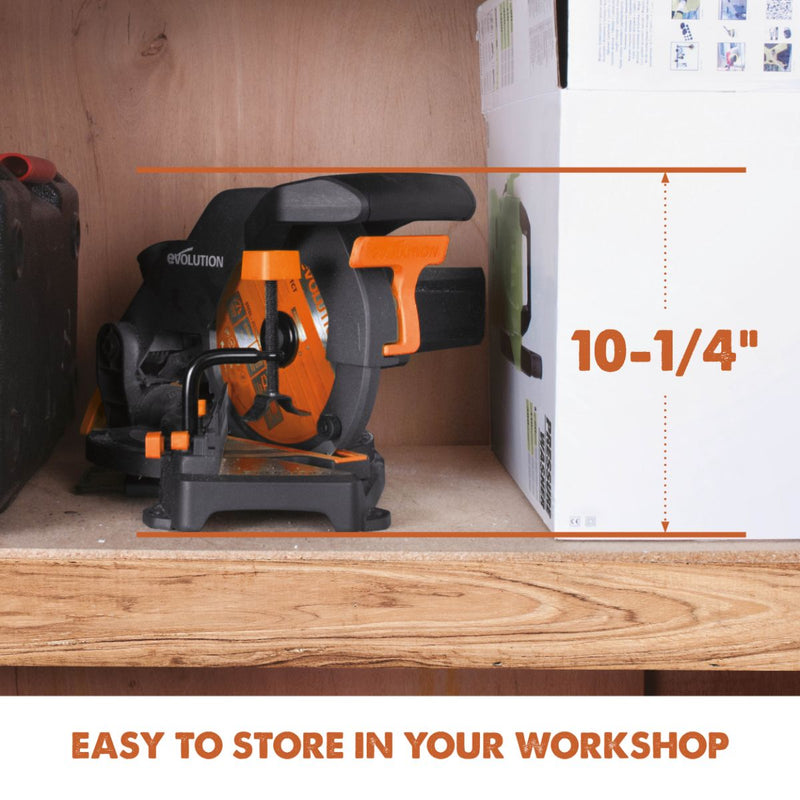

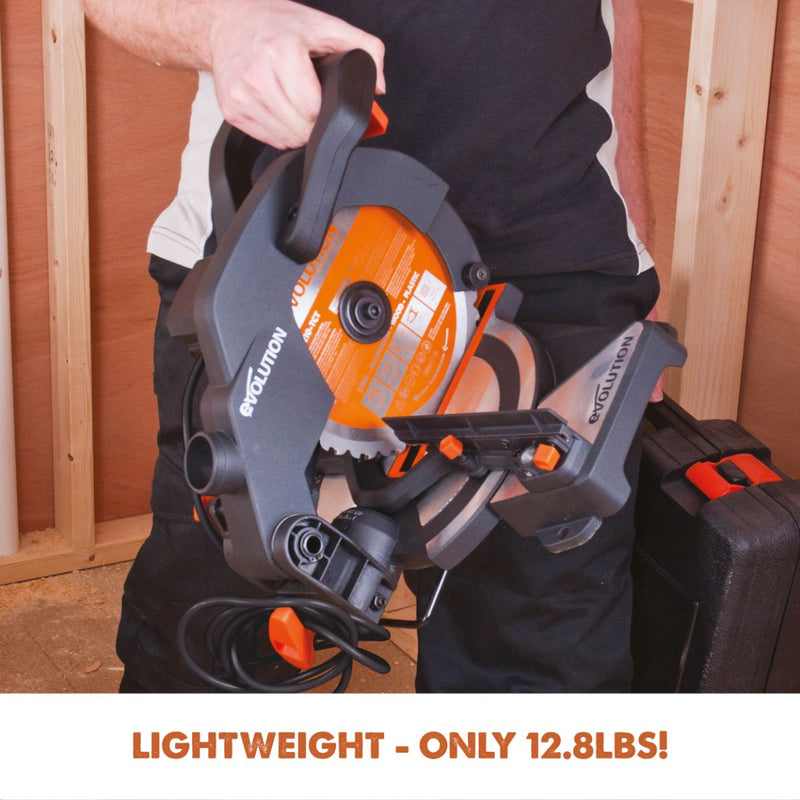

- Lightweight and portable. Small footprint provides easy storage.

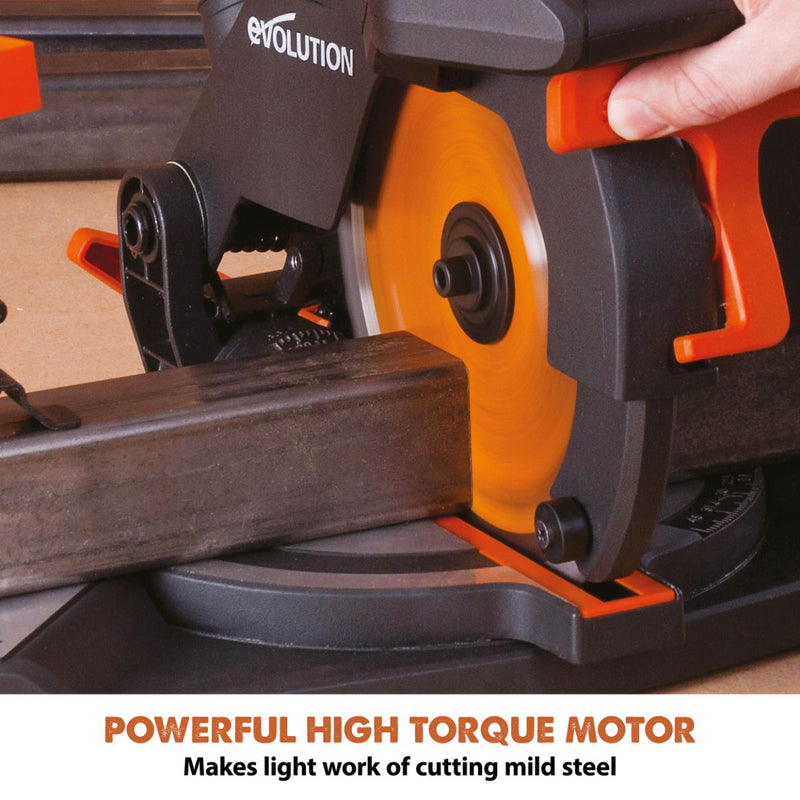

- Powerful high torque motor with optimized low RPM cuts through steel. Results in cool, smooth, burr-free cuts.
Specifications
| Motor (120V): | 10A |
| Speed No Load: | 3750 RPM |
| Max. Miter: | 45°L - 45°R |
| Max. Bevel (Left): | 45° |
| Blade Guard: | Cast Aluminum |
| Cable Length: | 6-9/16 ft (2m) |
| Dust Port Diameter: | 1-3/8 In. (35mm) |
| Blade Dia.: | 8-1/4In. (210mm) |
| No. of Teeth: | 24T |
| Bore: | 1 In. (25.4mm) |
| Kerf: | .067 In. (1.7mm) |
| Product Dimensions: | 10-15/64 x 15-15/32 x 15 In (260mm x 393mm x 381mm) |
| Packaging Dimensions: | 16.54 In. x 11.42 In. x 12.2 In (420mm x 290mm x 310mm) |
| Product Weight: | 12.8 lbs (5.8 kg) |
| Packaged Weight: | 15.8736 lbs (7.2 kg) |
Items Supplied
| 24T Multi-Material TCT Blade |
| Dust Collection Bag |
| Top Hold Down Clamp |
| Allen Key 6mm (Blade Change) |
Documents
3 Years Warranty
Please keep your proof of purchase / delivery.
- The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under warranty will not extend the period of warranty.
- The warranty provides benefits which are additional to and do not affect your statutory rights as a consumer.
- The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the warranty period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
- Overseas users should contact the official importer for that country.
Evolution does not warrant the repair or replacement of a product when the following has occurred;
- Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
Downloads
-
