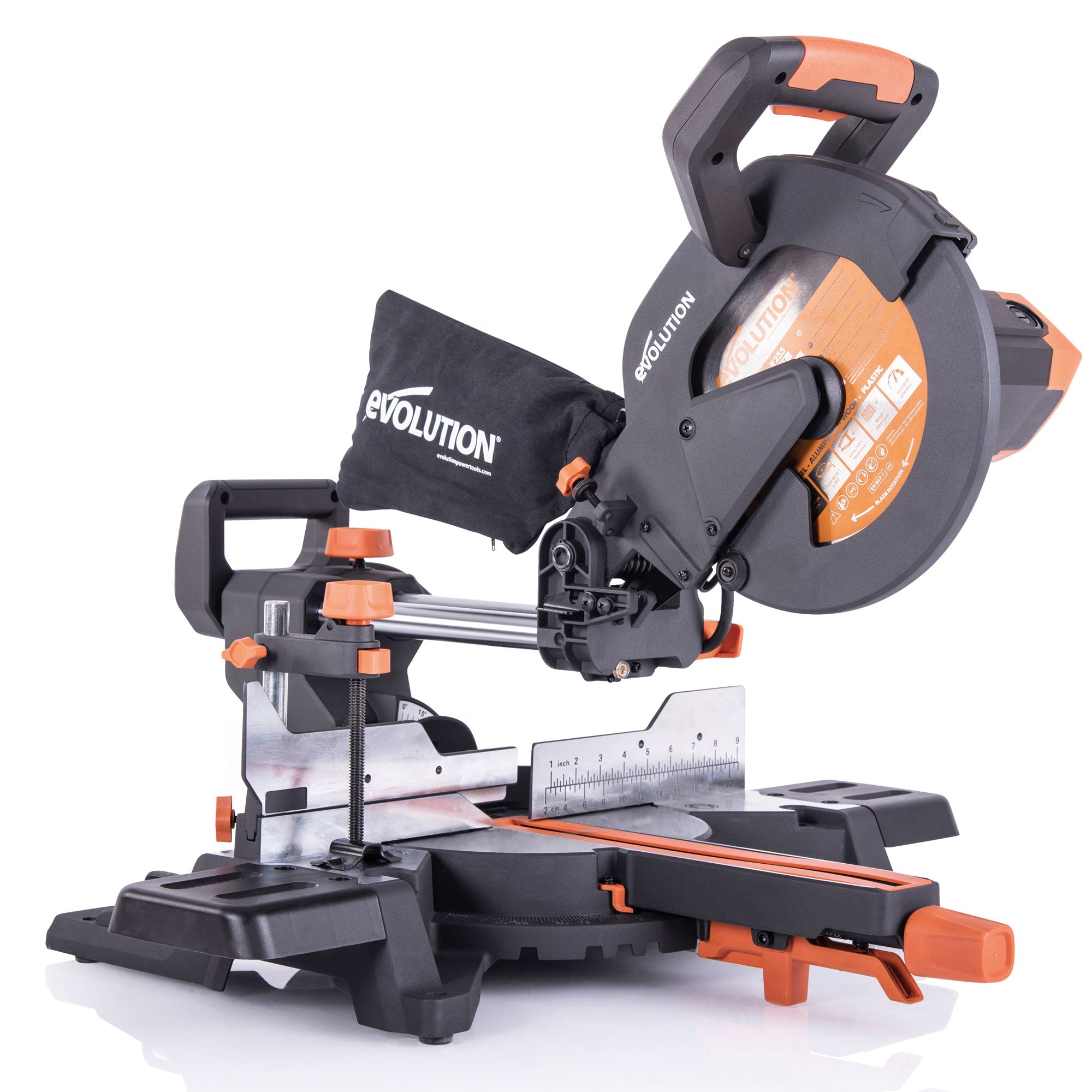

Evolution R255SMS+: Single Bevel Sliding Miter Saw With 10 in. Multi-Material Cutting Blade
R255SMS+ Miter Saw
Evolution R255SMS+: Single Bevel Sliding Miter Saw With 10 in. Multi-Material Cutting Blade
SKU: R255SMS+
EAN/UPC: 00849713083869
- Multi-Material Cutting: Cuts wood, steel, and more with a 10" TCT blade.
- Precision & Versatility: 11-3/4" sliding function, adjustable depth, and laser guide.
- Powerful Performance: 15A hi-torque motor handles 4x4" posts easily.
- User-Friendly: Ergonomic handle, dust collection, and quick-release clamp.
Specifications
| Blade Size | 10 In. |
| Power | Corded |
| Max Mitre |
|
Evolution R255SMS+: Single Bevel Sliding Miter Saw With 10 in. Multi-Material Cutting Blade
$400.00
Save
$0.00
In stock
Frequently Bought Together
Videos
- Description
- Specifications
- Cutting Capacities
- 3 Years Warranty
- Downloads
Description
The Evolution R255SMS+ is everything you asked for in a miter saw and more. Capable of cutting 4-inch posts, cornices, skirting and hardwoods such as oak, walnut, maple and more. The speed and power of the hi-torque motor and the configuration of the Evolution blade tooth design allow you to cut through a variety of materials with ease. Including wood with embedded nails. Every detail of this design has been considered and refined to deliver accuracy, power, and reliability.
- Multi-Material cutting technology. One saw, one blade, cuts all.*

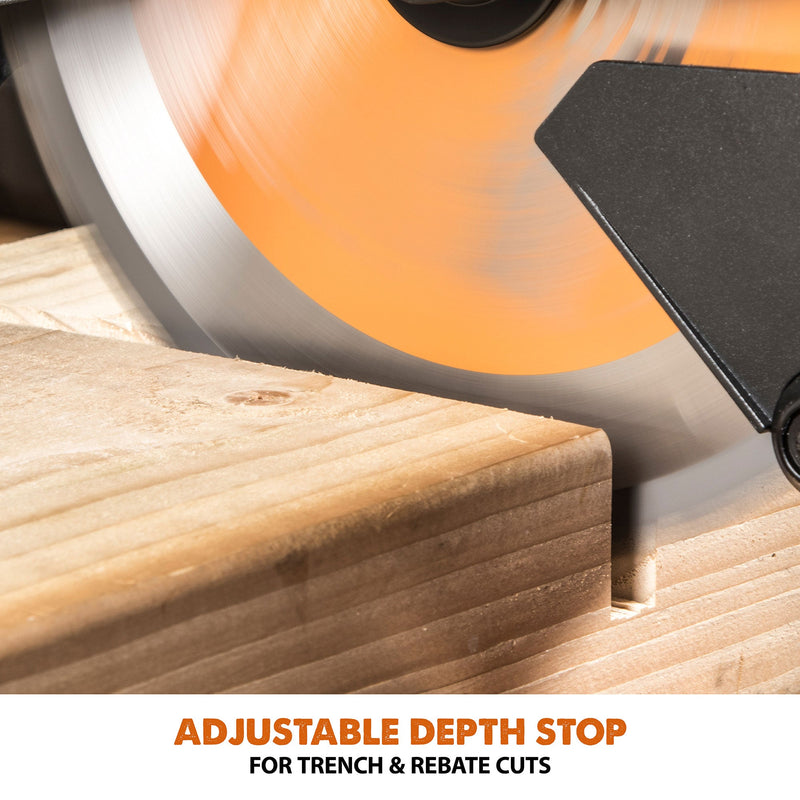

- Accurate cutting with 11-3/4 inch sliding functionality, adjustable depth of cut and laser precision guidance.

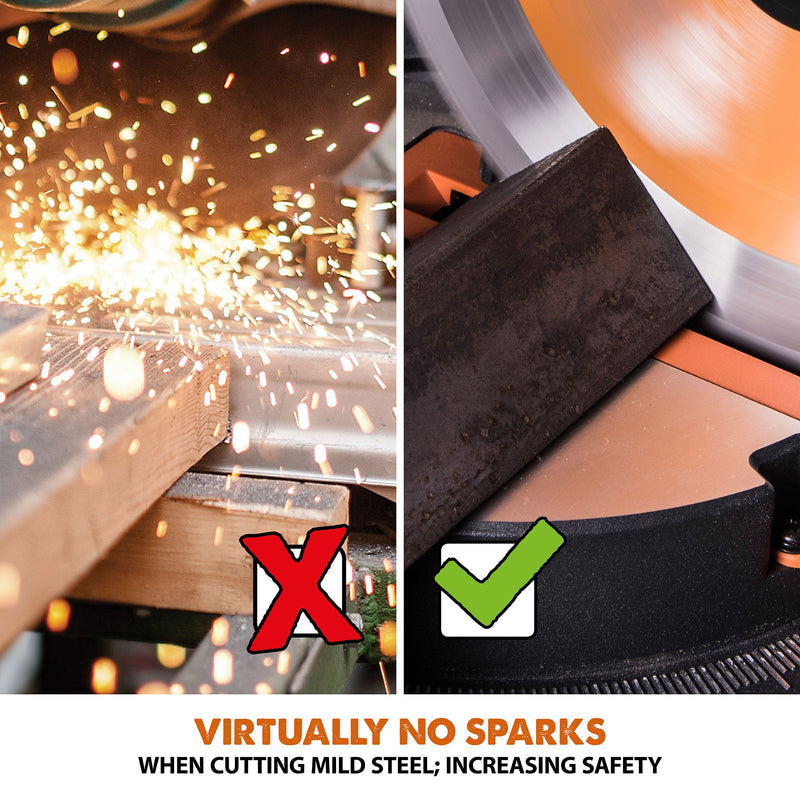

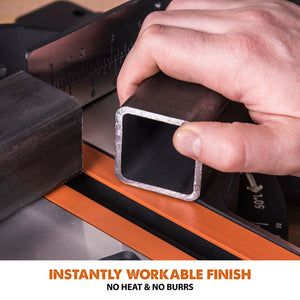

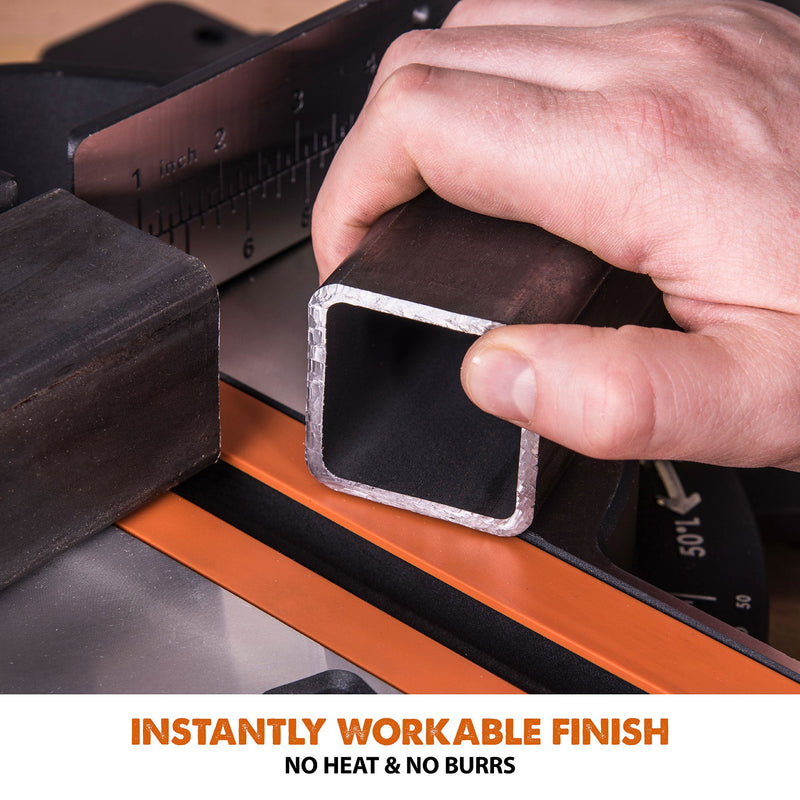

- Smooth, square, reliable cutting every time in a variety of materials. Cut mild steel with no heat, no burrs, and virtually no sparks.

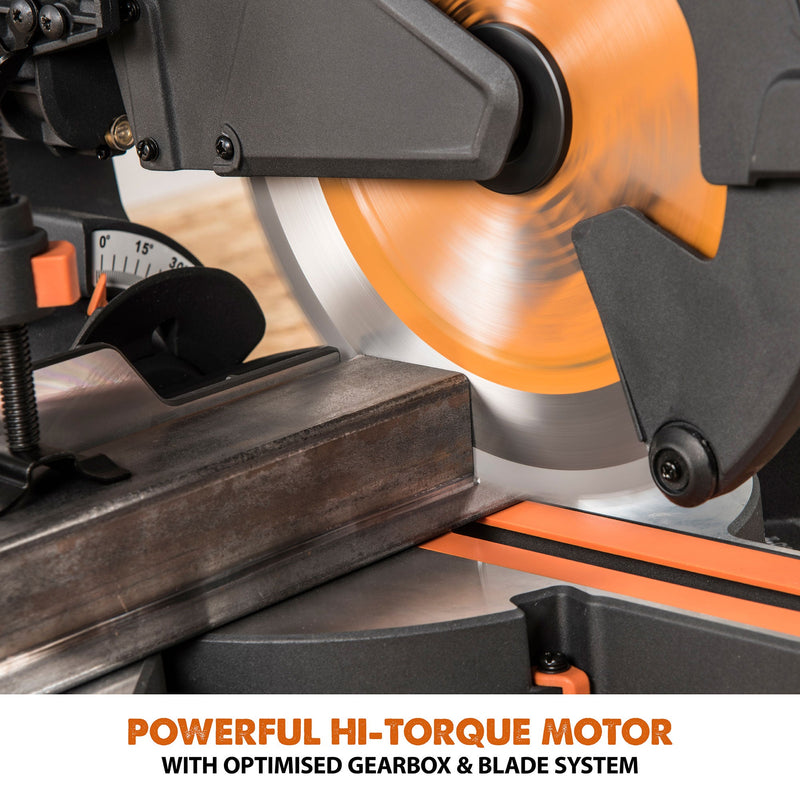

- Powerful 15A hi-torque, optimized gearbox, and blade system increase motor and blade life to cut through a variety of materials with ease.
- Perform accurate Crosscuts, Miter cuts, Bevel cuts and Compound cuts with adjustable precision settings.

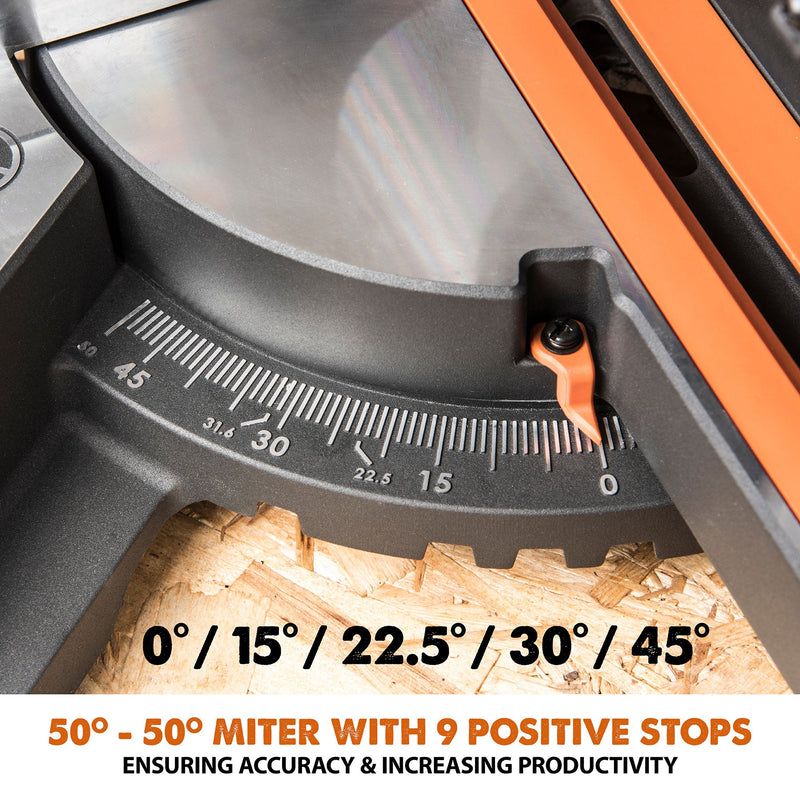

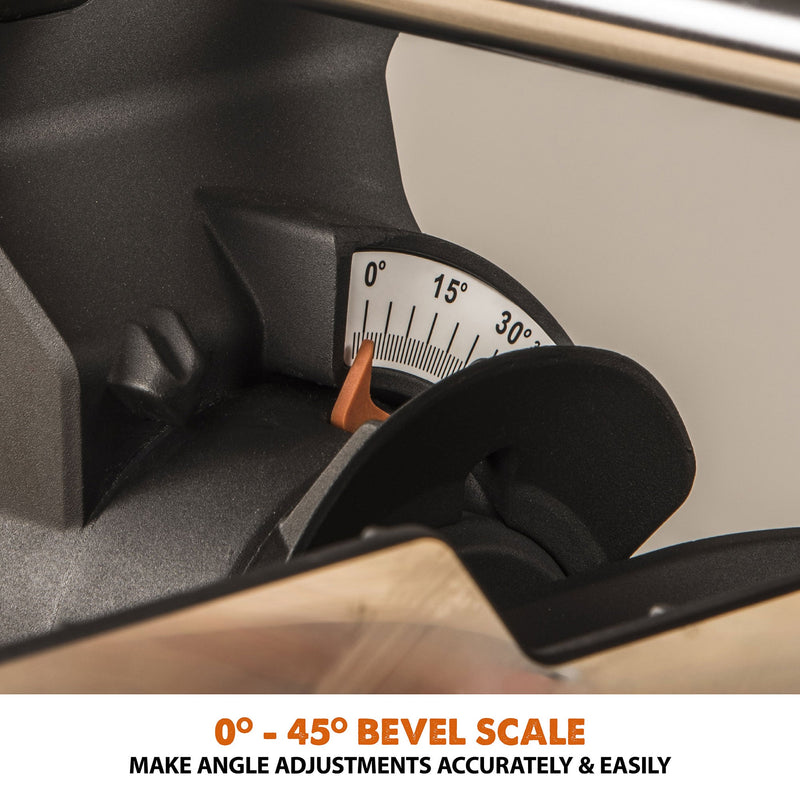

- Cut to within +/- 0.5˚ with 0° - 45° bevel tilt and 50˚ - 50˚ miter angles with quick click miter stops at 0˚, 15, 22.5, 30, and 45˚ both left and right.

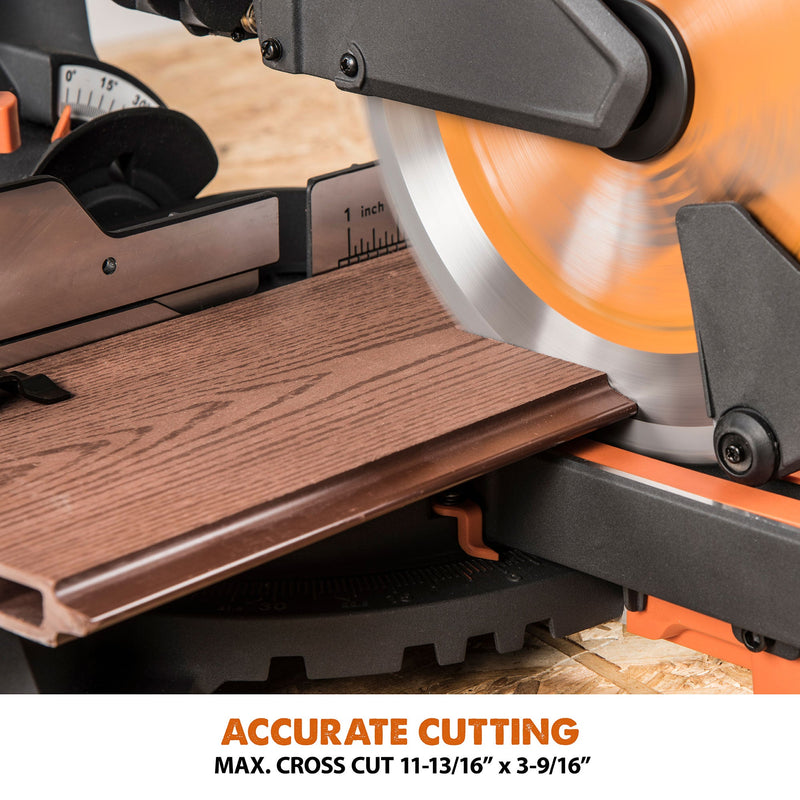

- An impressive 11-3/4 x 3-9/16 inch max. crosscut capacity enables you to cut 4 x 4-inch posts.

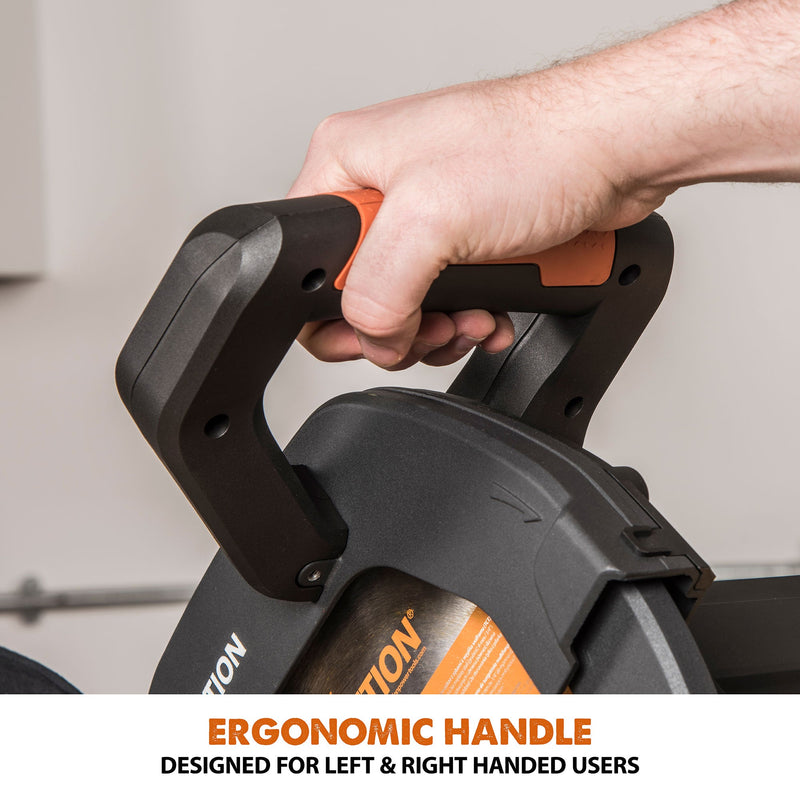

- Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combat repetitive strain.

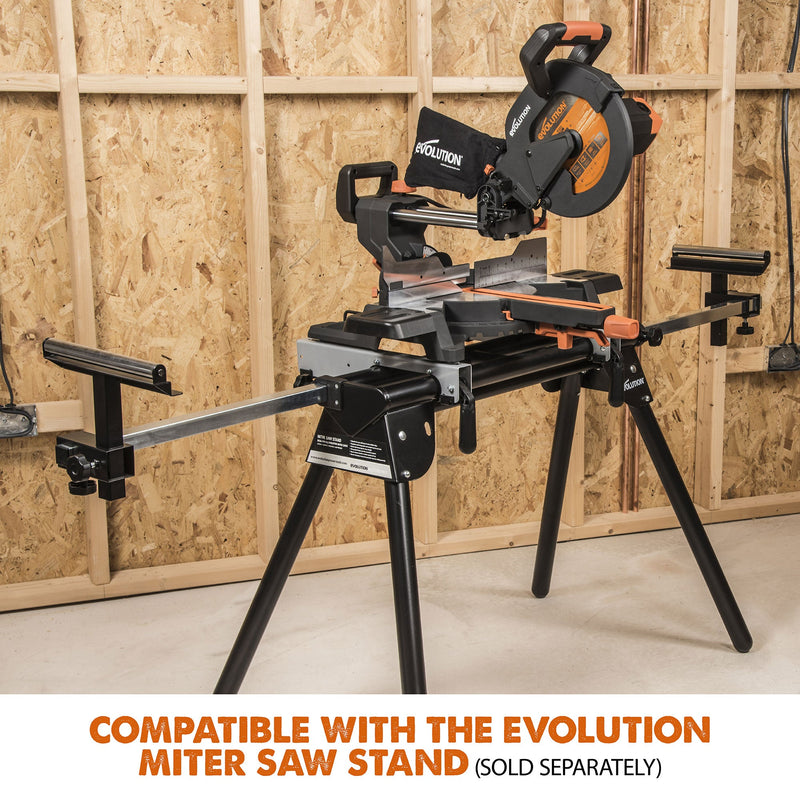

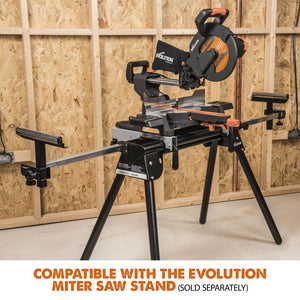

- Compatible with Evolution's Mitre Saw Stand, giving you full control to cut accurate repeated lengths on wide and long materials with ease.
- The Evolution 10 inch Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
- 3 Year limited warranty.
+PLUS Features

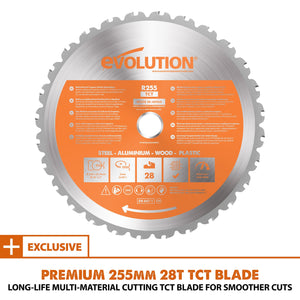

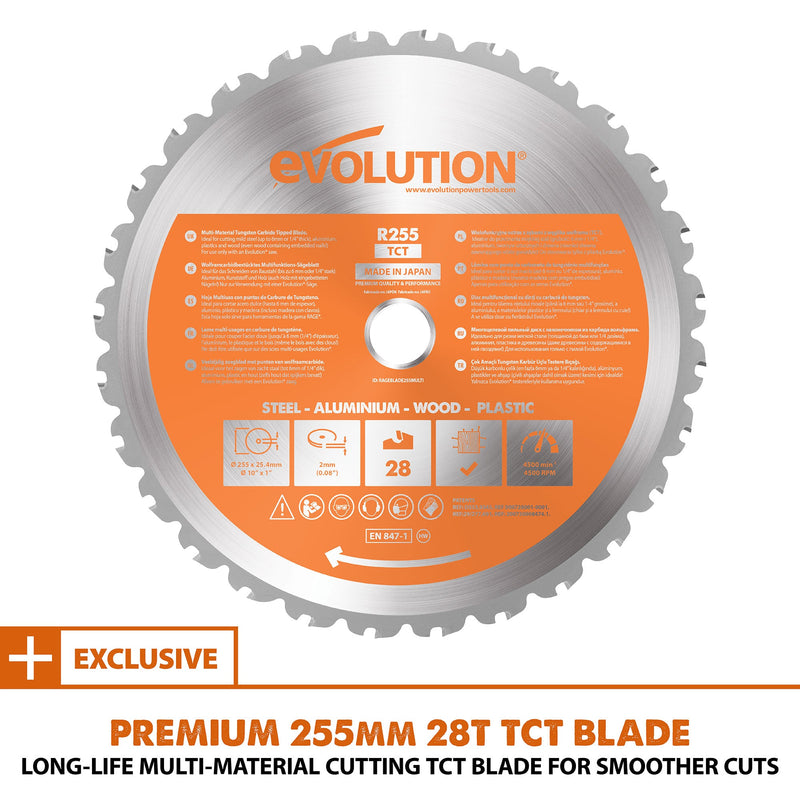

- Premium Japanese Tungsten-Carbide-Tipped (TCT) 10-inch blade included for long-life, multi-material cutting.

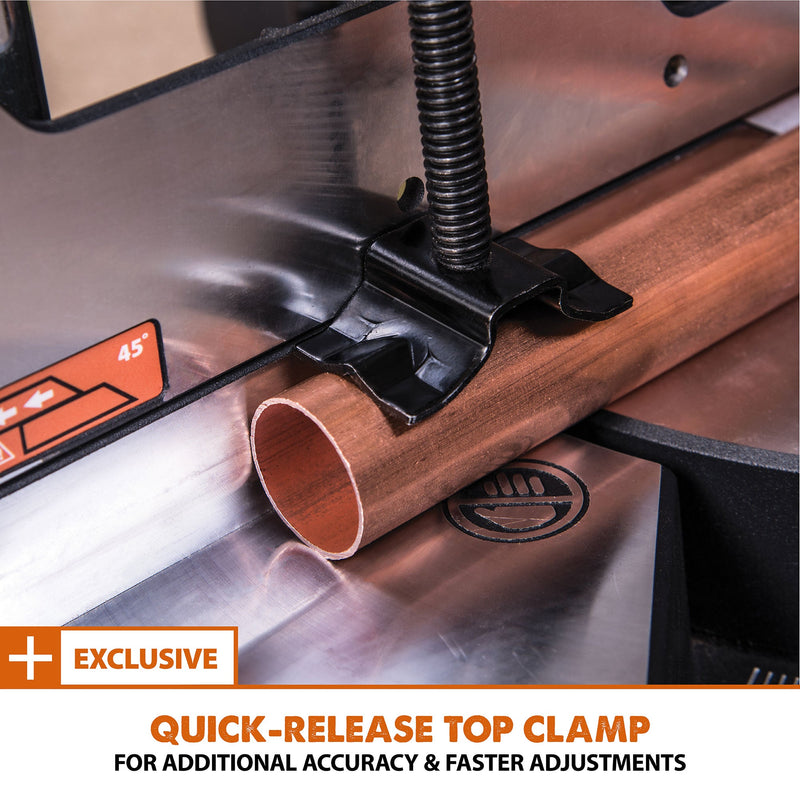

- Quick-Release top clamp included for additional safety and faster adjustments.

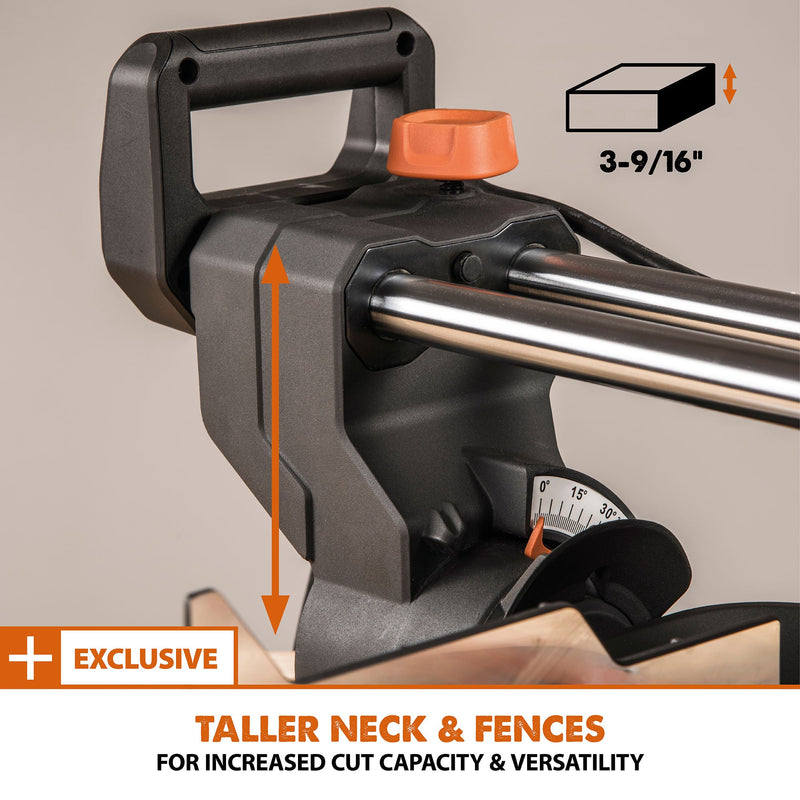

- Tall neck and fences for increase cut capacity and versatility when cutting materials stood upright such as skirting and cornices.

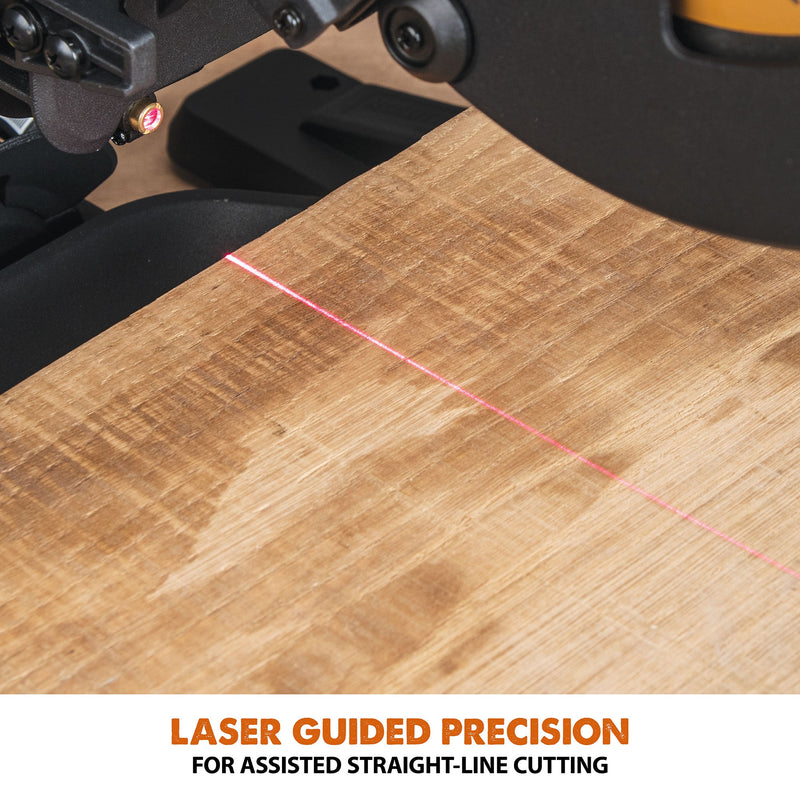

- Laser-guided precision projects the cutting line on your workpiece for assisted straight-line cutting.

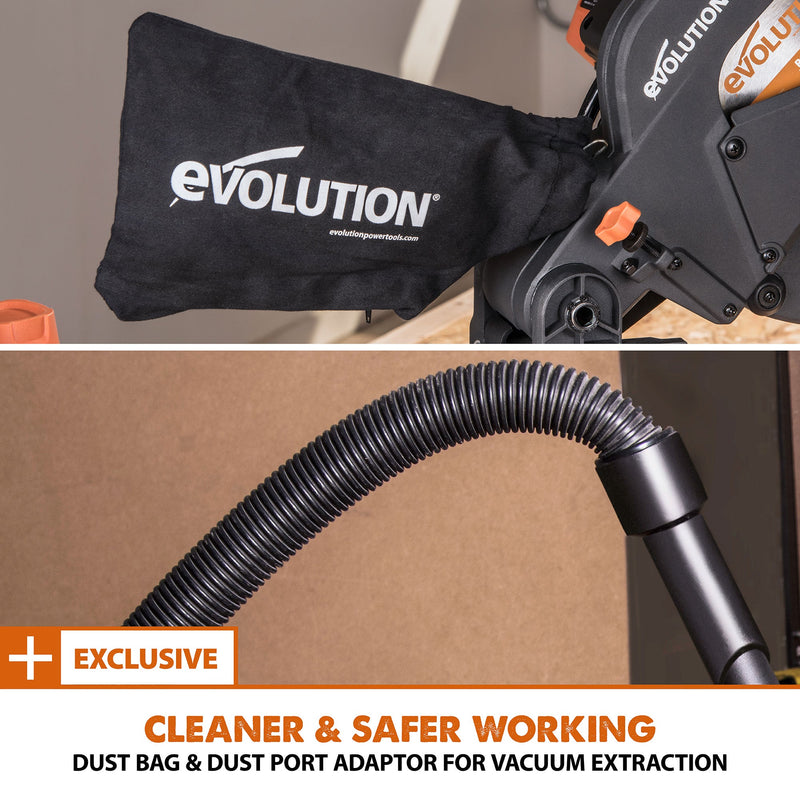

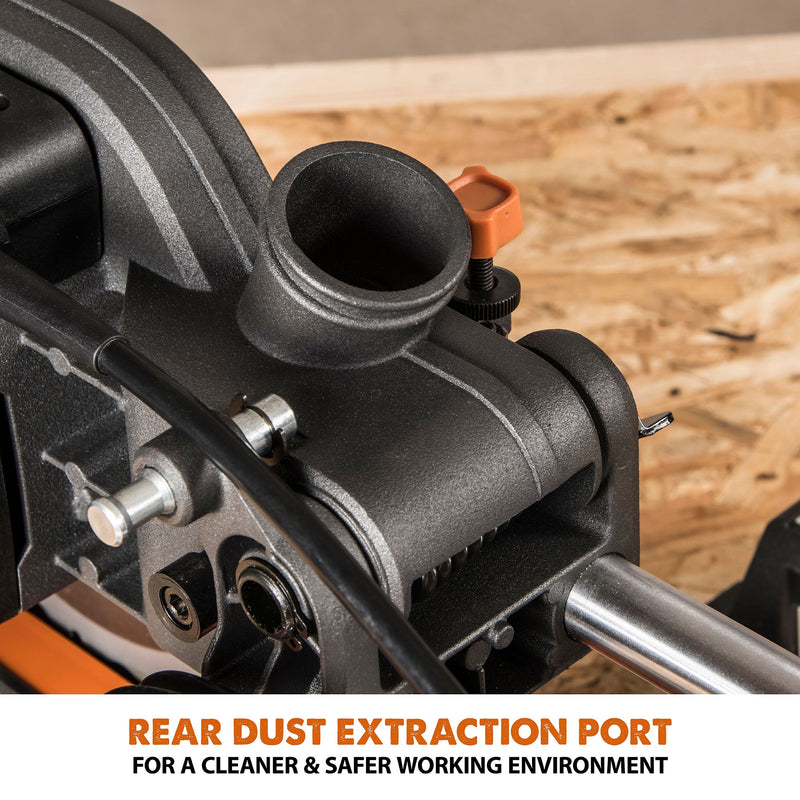

- Cleaner and safer working environment with a dust collection bag and dust port adaptor for use with vacuum extraction.

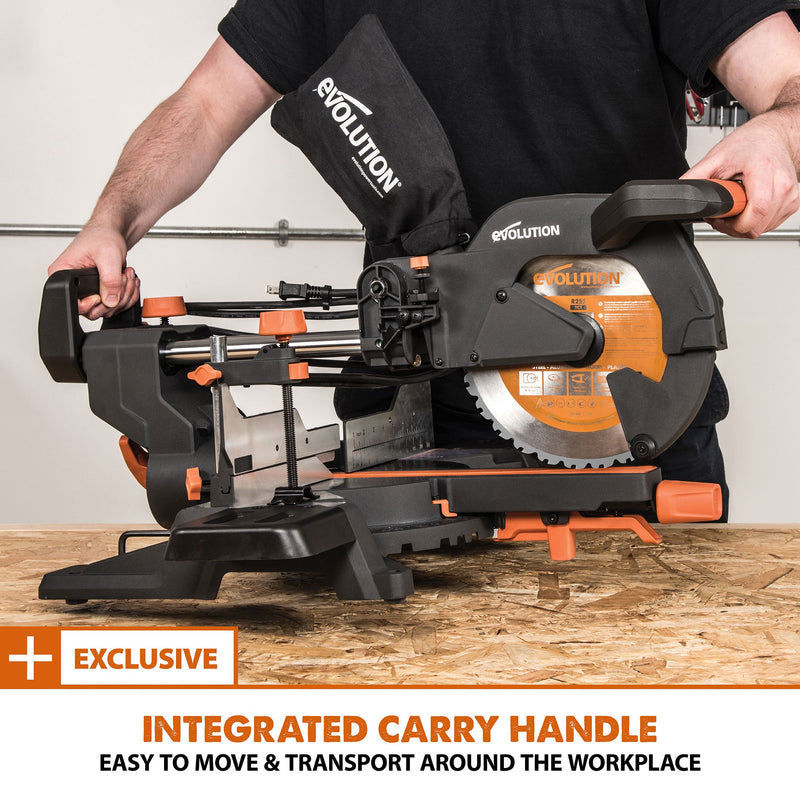

- Integrated carry handles - easy to carry and transport around the workplace.

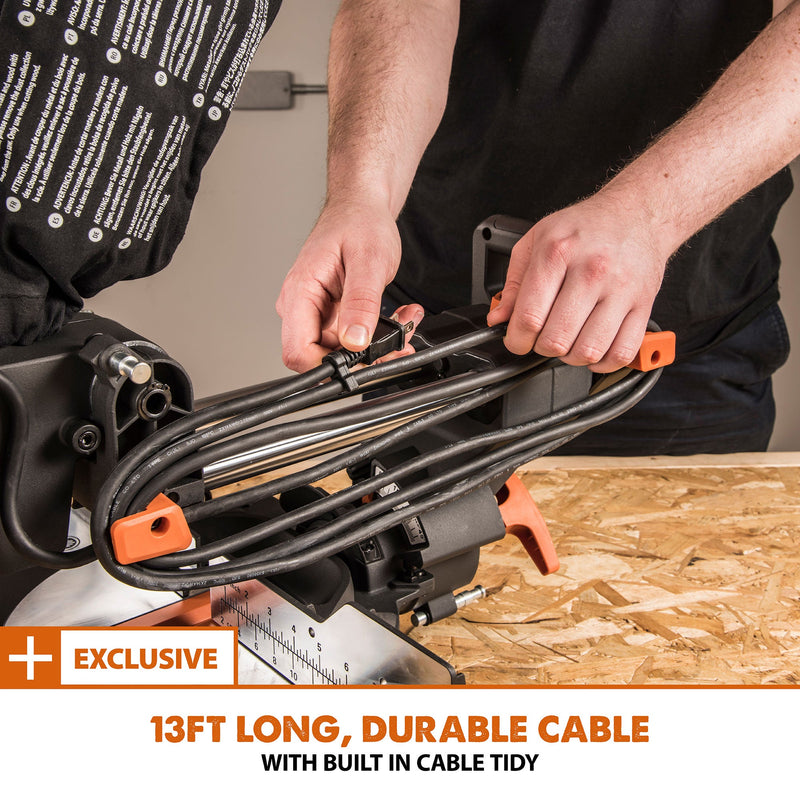

- 13ft rubber power cable gives you the power and reaches you need to get the job done.
Specifications
Machine Specs
| Motor (120V 60Hz): | 15 A |
| Speed No Load: | 2500 rpm |
| Max. Bevel (Left): | 0° - 45° |
| Max. Miter: | 50° - 50° |
| Cable Length: | 10 ft |
Blade Specs
| Blade Dia.: | 10 in. |
| No. of Teeth: | 28 |
| Bore: | 1 in. |
| Kerf: | 0-5/64 in. |
Dimensions
| Product Dimensions: | 14-3/16 x 27-3/4 x 28-47/64 in. |
| Packaging Dimensions: | 22-1⁄4 x 14-3⁄8 x 20-15⁄32 in. |
| Product Weight: | 33.7 lbs |
| Packaged Weight: | 39.2 lbs |
Noise Data
| Sound Pressure Level LPA: | 95,8 dB(A) K=3 dB(A) |
| Sound Power Level LWA: | 108,8 dB(A) K=3 dB(A) |
Items Included
| Machine Table Extensions | Double Ended Hex Key (M6 & M5) |
| Rotary Table And Neck | Cutting Head |
| Carriage Slides | Mitre Locking Knob |
| Mains Cable Guide/Clamp | Self Tapping Cap Screw |
| Socket Headed Screws | Cable Clamp Component |
| Laser Lens Cap | Double Ended Cable Clip |
| Carry Handle | Tall Fence |
| Dust Port Adaptor | Dust Collection Bag |
| 3pc Hold Down Clamp | 10 inch 28 Tooth Blade |

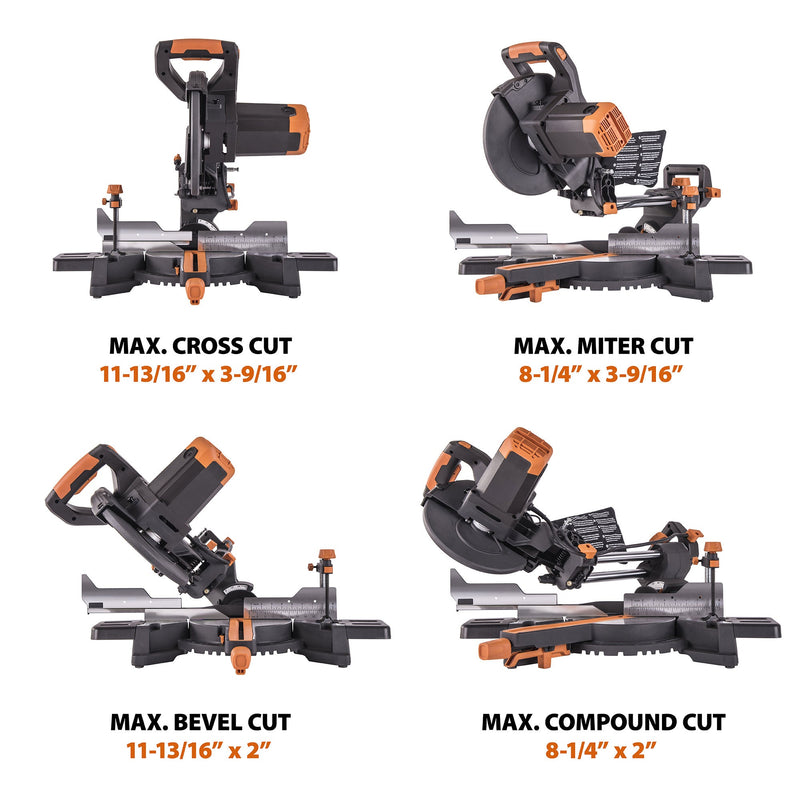

Cutting Capacities
| Max. Cross Cut (0° x 0°): | 11-3/4 x 3-9/16 in. |
| Max. Bevel Cut (0° x 45°): | 8-1/4 x 3-9/16 in. |
| Max. Miter Cut (45° x 0°): | 11-3/4 x 2 in. |
| Max. Compound Cut (45° x 45°): | 8-1/4 x 2 in. |
| Mild Steel Plate (Max. Thickness): | 1/4 in. |
| Mild Steel Box Section (Max. Wall Thickness): | 1/8 in. |

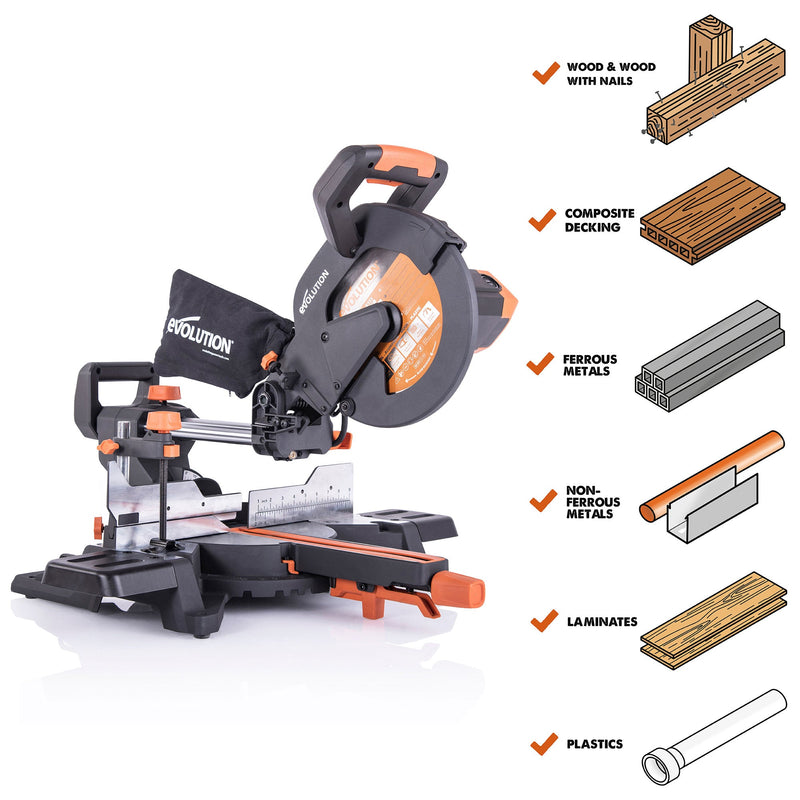

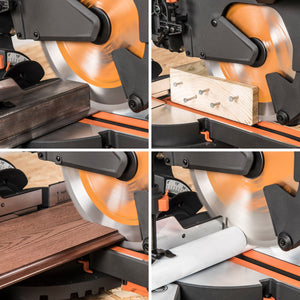

Cutting Applications
| Wood | Hardwood & tanalized decking, MDF laminates, moldings, reclaimed wood with nails, scaffold boards & poles, stud-work. |
| Ferrous Metal | Mild Steel, angled, box section, square tube, metal stud drywalling, rebar, RSJs, plate (1/4 inch), unistrut. |
| Non-Ferrous Metal | Aluminum, armored cables, cable tray, copper, floor edgings, roof flashings, stair nosings. |
| Plastic | Electrical conduit, plastic pipes, plexiglass, rubber & reinforced hoses, (WPC) Wood Plastic Composites. |
| Not Recommended | Hardened high carbon, coated and stainless steel. Note: Cutting galvanized steel may reduce blade life. |
3 Years Warranty
Please keep your proof of purchase / delivery.
- The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under warranty will not extend the period of warranty.
- The warranty provides benefits which are additional to and do not affect your statutory rights as a consumer.
- The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the warranty period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
- Overseas users should contact the official importer for that country.
Evolution does not warrant the repair or replacement of a product when the following has occurred;
- Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
