Evolution R10TBLX Multi-Material Table Saw with Wheeled Scissor Stand | 10 in. Multi-Material Cutting Blade
SKU: 119-0019
EAN/UPC: 5056583007757

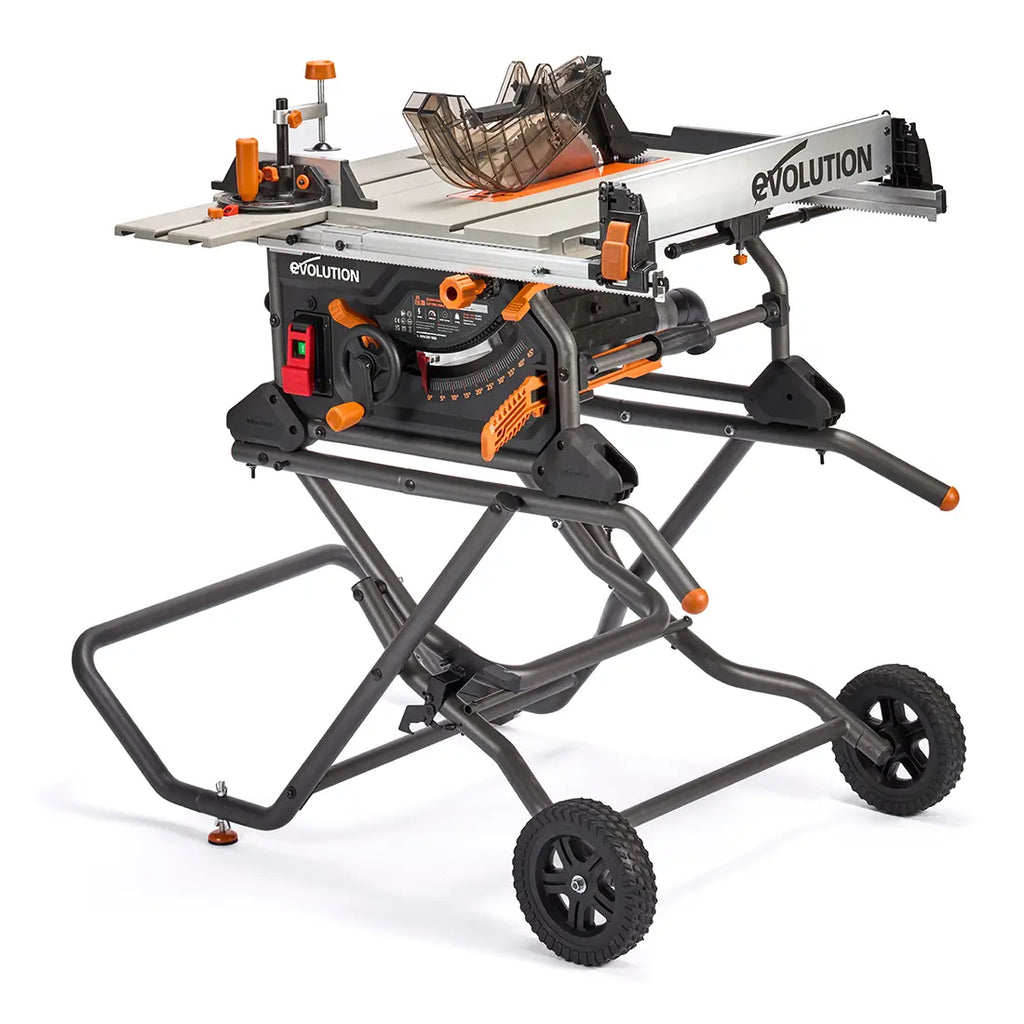

- R10TBLX Bundle: R10TS Table Saw with Compact Wheeled Scissor Stand
- Powerful. Fine-tuned 15A motor delivers maximum torque to rip through the toughest materials, including mild steel.
- Portable. Lightweight steel frame with carry handles design makes it easy to transport to and from job sites.
- Accurate. Dual rack and pinion fence rails, tool-free parallel blade alignment and sway-free blade height adjustment deliver the perfect cuts first time, every time.
- Safe. Advanced safety features include a split blade guard with anti-kickback pawls, a large paddle switch for quick shutoff, and an electronic blade brake to stop the blade in seconds. Read more
Specifications
Blade Size | 10 In. |
Warranty | 3 Years |
Power Type | Corded |
Max Cut Depth Bevel 0° | 3-11/32" | 85mm |
3 Years Year Warranty Register Your Warranty
45 Day Returns
Earn 796 EVO Points + 5% off your first order
Frequently Bought Together
Recommended Accessories
Description

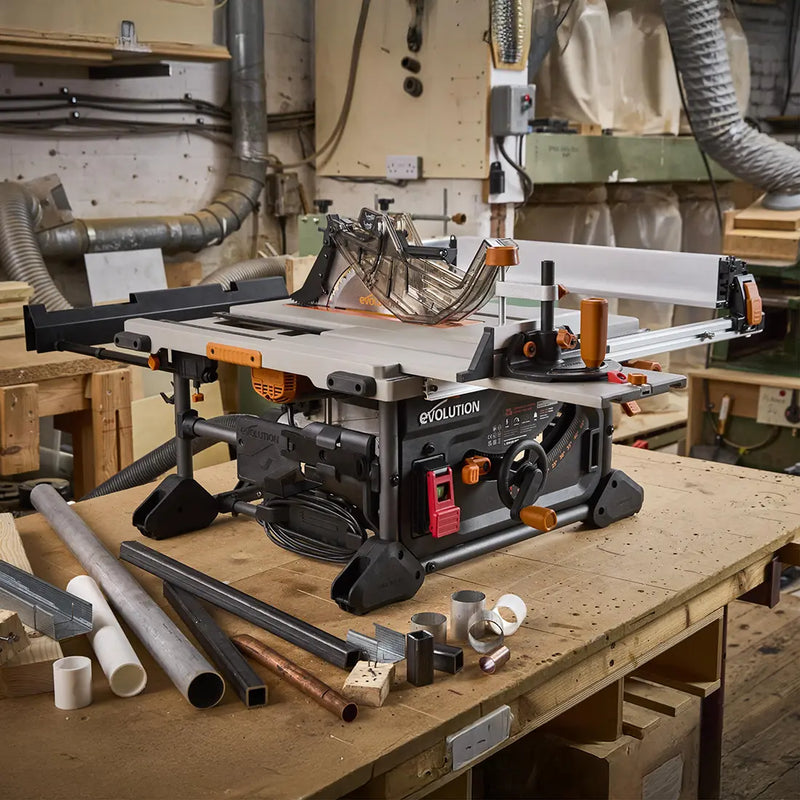

The all new Evolution R10TBLX (R10TS + compact wheeled scissor stand)is a professional jobsite table saw engineered to deliver maximum power, precision, and versatility. Equipped with Evolution’s patented Multi-Material cutting technology - this saw produces fine finish cuts through hard & soft wood, risk free cuts through reclaimed material with embedded nails and fasteners, burr-free and cool to the touch cuts through mild steel, accurate cuts through composites, laminates and more! With a 3-3/8” maximum cut depth, 26” rip capacity and 45º bevel capability - you’ve got a solution for all your on-site cutting needs.

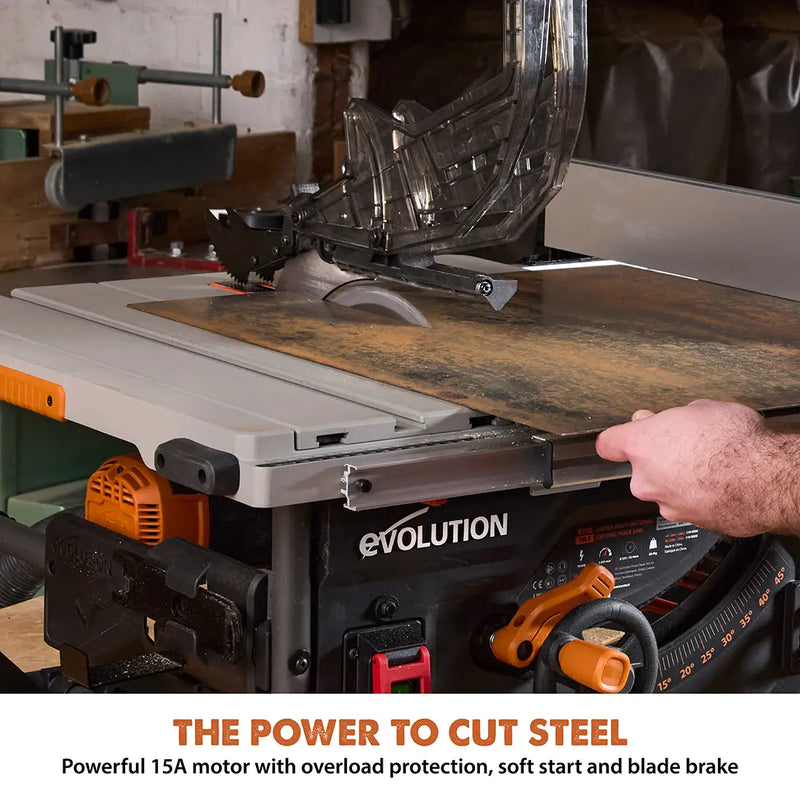

POWERFUL The powerful 15A motor is fine tuned to deliver maximum torque to rip through the toughest materials with ease, while the premium 10” multi-material tungsten carbide tipped (TCT) blade ensures the perfect cut through almost any material you’re working with. The motor features soft start technology to prevent power trips on start-up and an electronic blade brake that stop the blade in seconds. Meanwhile the overload protection actively monitors the motor to optimize performance and prolong tool life.
PORTABLE. Designed to go where your work takes you, the supplied folding roller stand simplifies setup and transport. Key features include a collapsible frame that folds with a simple foot pedal, large all-terrain wheels for easy mobility across job sites, and a compact design that fits through standard internal doorways. The heavy-duty steel chassis offers excellent durability handling onsite knocks and drops with ease.
ACCURATE. Built for long-lasting accuracy, this saw features dual rack and pinion fence rails for micro-adjustable rip fence positioning, a multi-point locking rip fence to keep it perfectly parallel with the blade, and a blade height adjustment mechanism engineered to eliminate lateral movement during blade height adjustments ensuring every cut is precise. The blade to rip fence parallelism can be fine-tuned on-site without the need for tools for absolute accuracy.
SAFE. The supplied quick-release riving knife has 2 pre-set positions for safe through and non-through cuts without the risk of kickback, a large paddle switch for easy, rapid shutoff in emergencies and a height adjustable steel blade throat that maintains a stable and flat cutting surface close to the blade enhancing accuracy and safety. The supplied blade guard features anti-kickback pawls to prevent material lifting during cuts ensuring your work environment stays safe and under control.
Get more from your table saw today with the Evolution R10TBLX.
Features

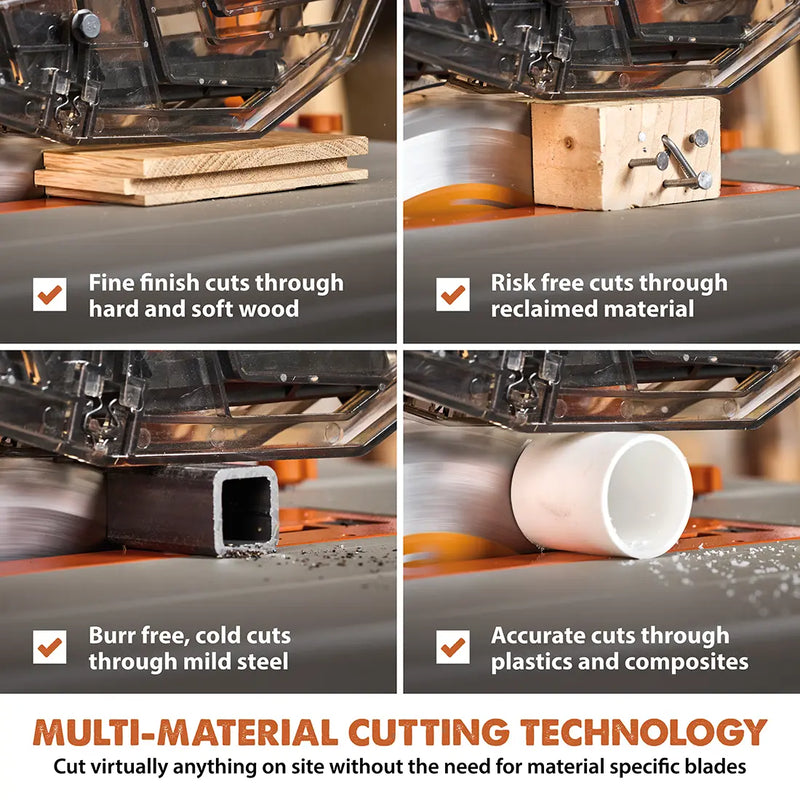

- Multi-Material Cutting technology – cuts wood (even wood with embedded nails), mild steel, aluminium, composites, and more.

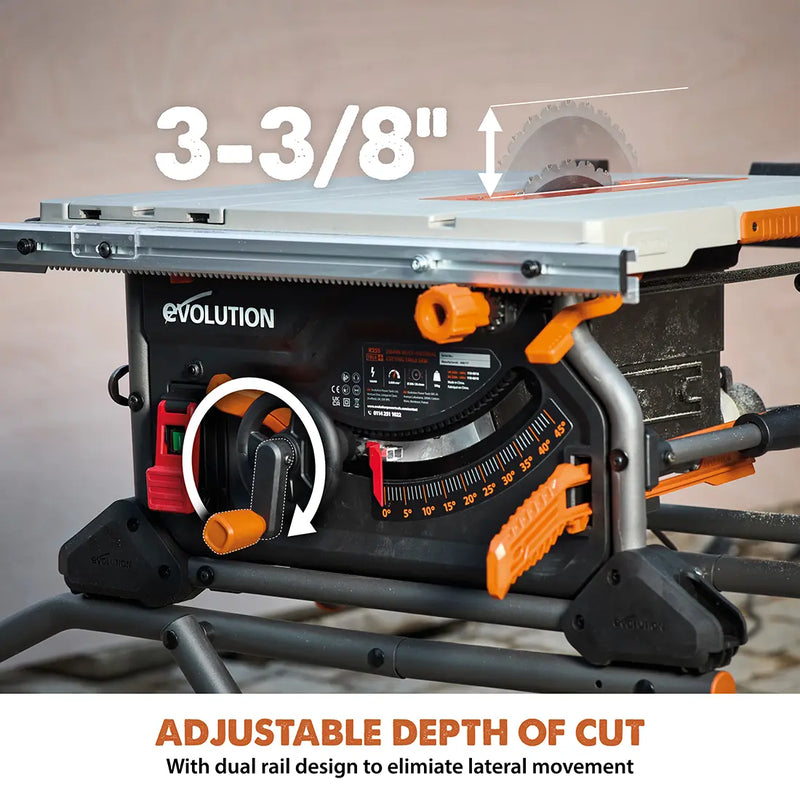

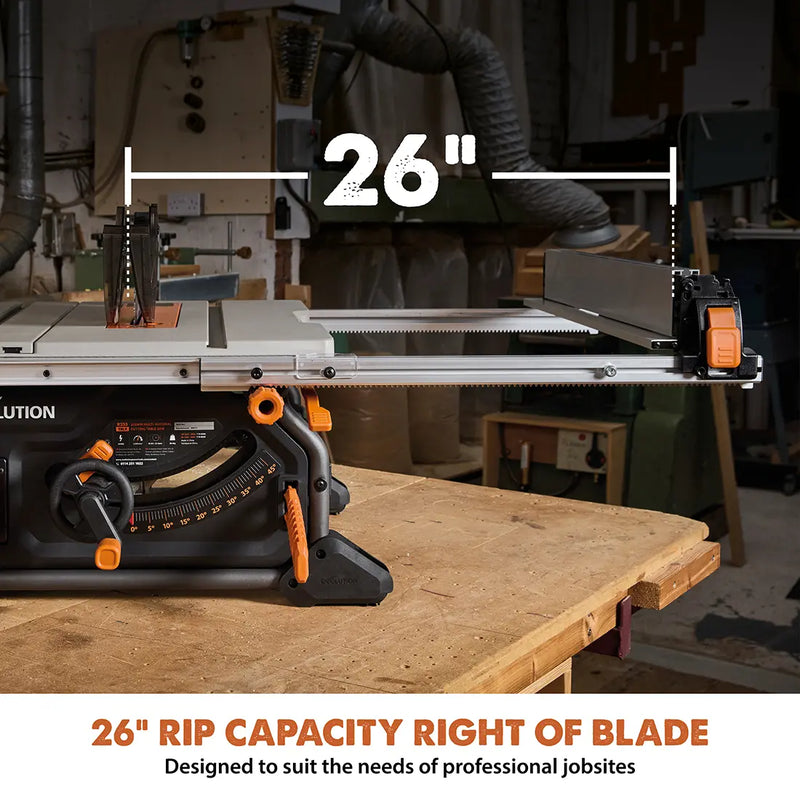

- 3-3/8” max cut depth and 26” max rip capacity to the right.

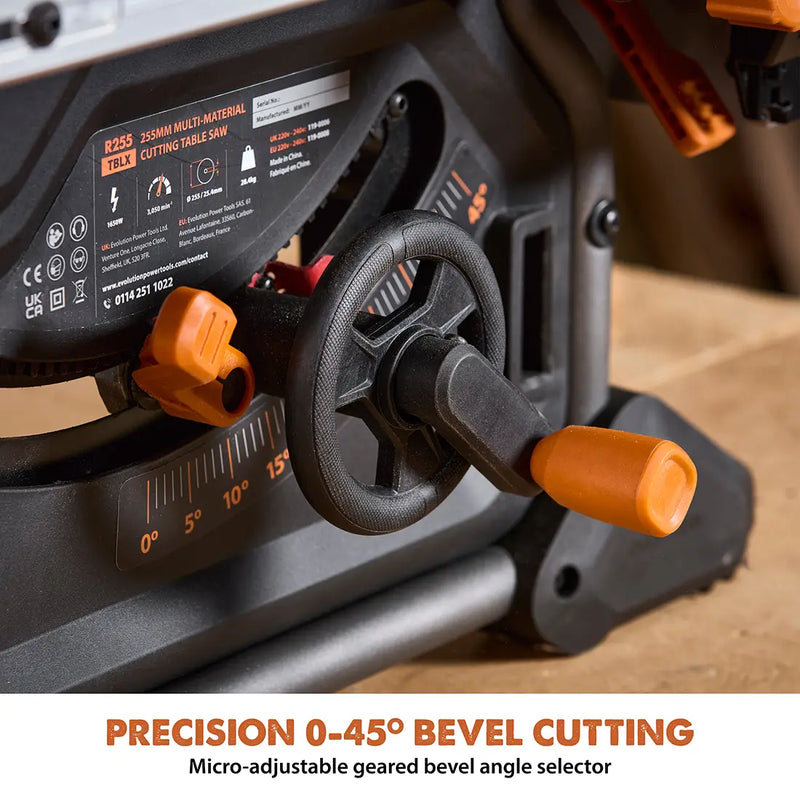

- Accurate 0–45° bevel with geared angle selector for precise angle setting.
- High torque 15A motor with soft start and overload protection.
- Premium 10” multi-material cutting TCT blade supplied.

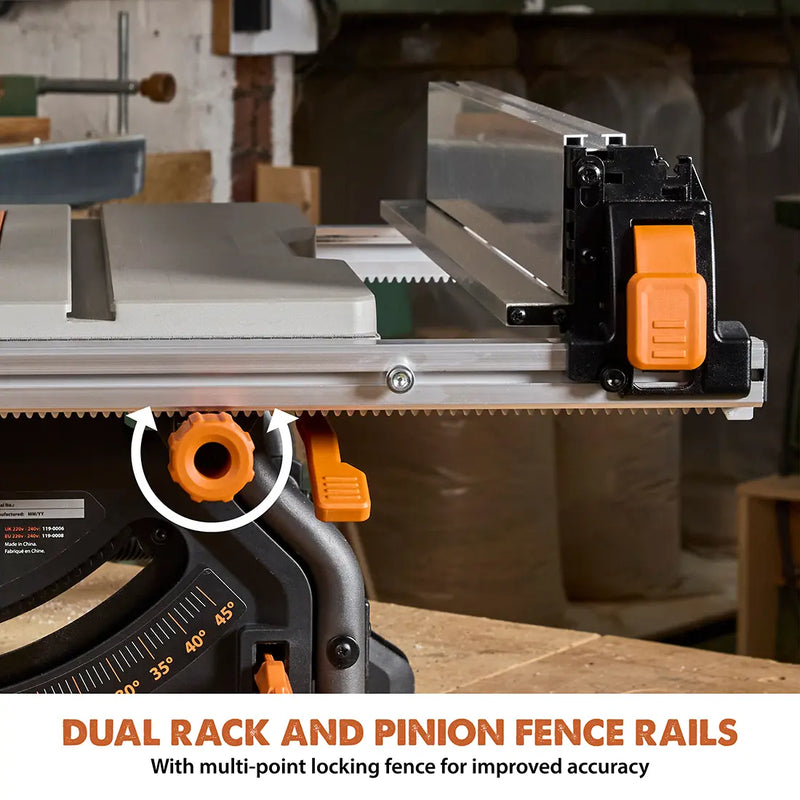

- Dual rack and pinion fence rails ensure precise rip cuts.
- Full-length rip fence with integrated auxiliary fence.

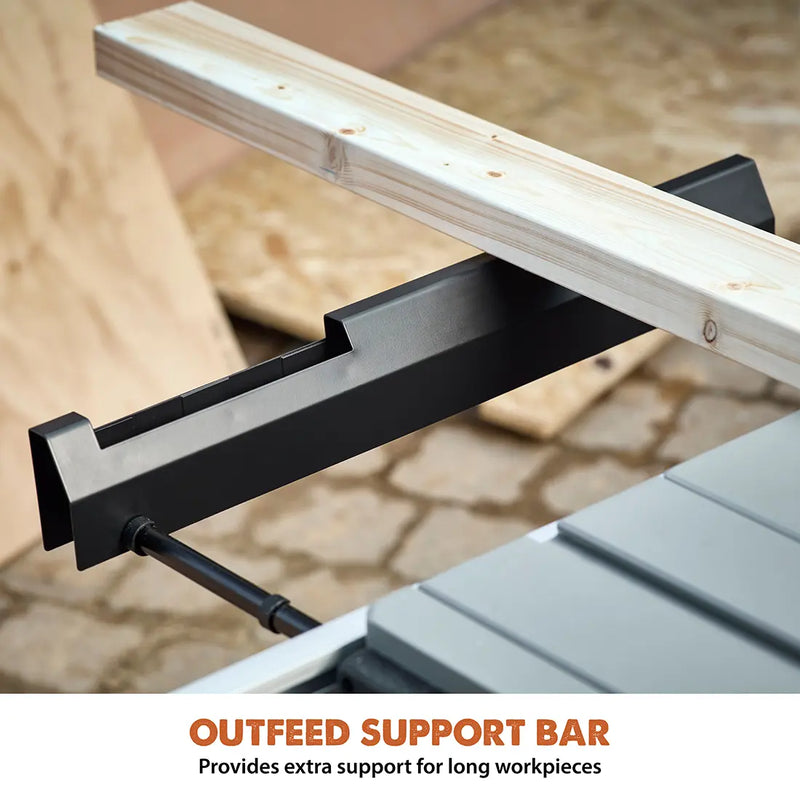

- Outfeed support bar extends the table surface for handling sheet material.

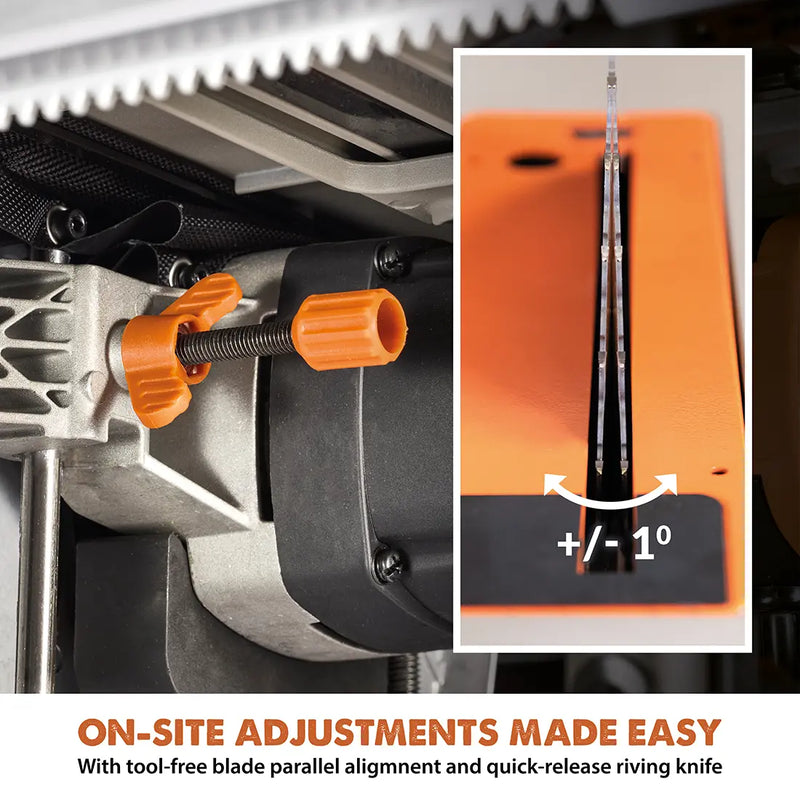

- Tool-free blade-to-fence parallelism adjustment.
- Wheeled scissor stand for portability.

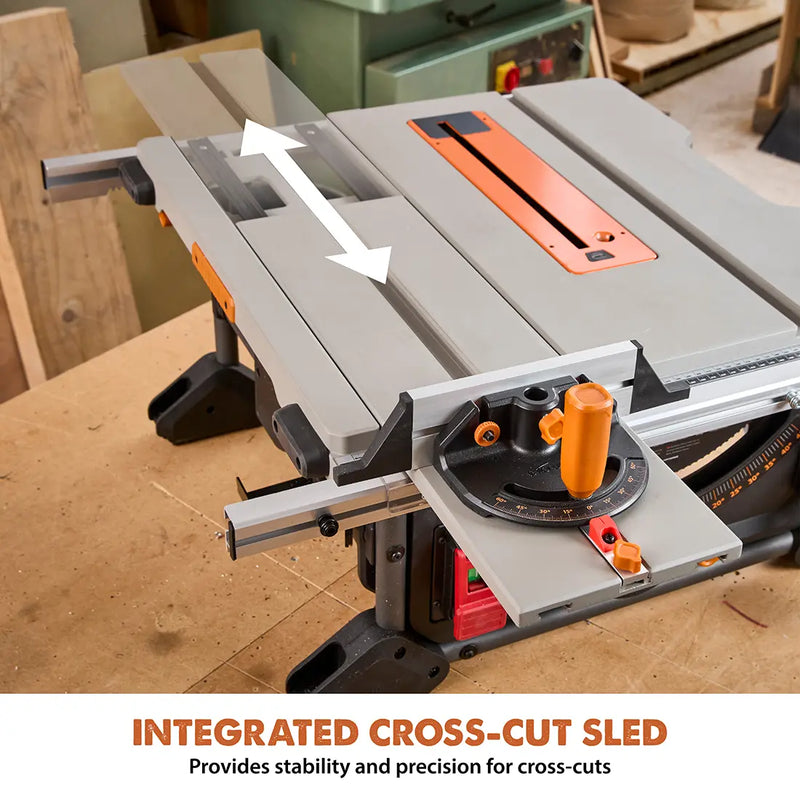

- Integrated cross-cut sled for improved workpiece stability and safety.

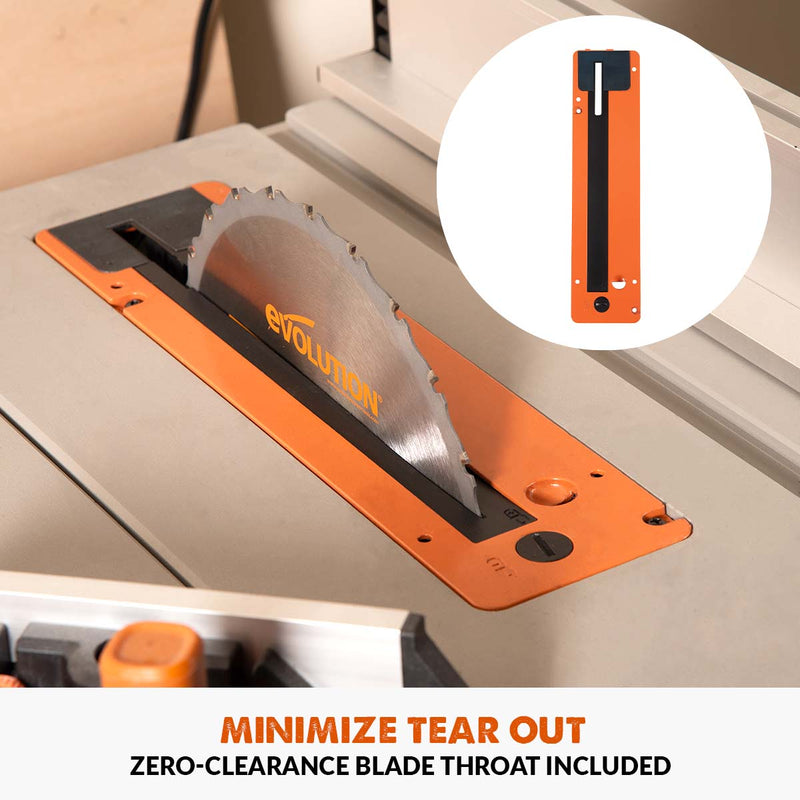

- Height-adjustable steel blade throat.
- Soft start eliminates power trips on startup and prolongs motor life.
Specifications
Motor (120V/ 60Hz): | 15A |
Speed No Load: | 3300rpm |
Max. Bevel (Left): | 45° (-2 to 47° with stop washers removed) |
Blade Dia.: | 10" | 255mm |
No. of Teeth: | 28 |
Bore: | 5/8" & 1"| 25.55mm |
Kerf: | 1/16" | 2mm |
Max. Depth of Cut (90°): | 3-11/32" | 85mm |
Max. Depth of Cut (45°): | 2-5/15" | 58mm |
Mild Steel Plate (Max. Thickness): |
1/8" |
Rip Capacity - Right of the blade | 25-9/16"| 650mm |
Rip Capacity - Left of the blade | 14-9/16" | 371mm |
Riving Knife Thickness | 1.8mm |
Product Dimensions: | (With Leg Assembly) 35-13/16" X 28-3/4" X 25-11/16" |
Product Dimensions: |
(Without Leg Assembly) |
Table Saw Weight: | 50.8 lbs |
Stand Weight: | 15.87 lbs |
Sound Pressure Level LPA: | 93,2dB(A) K:3dB(A) |
Sound Power Level LWA: | 106,2dB(A) K=3 dB(A) |
Documents
Items Included
28T Multi-Material TCT Blade |

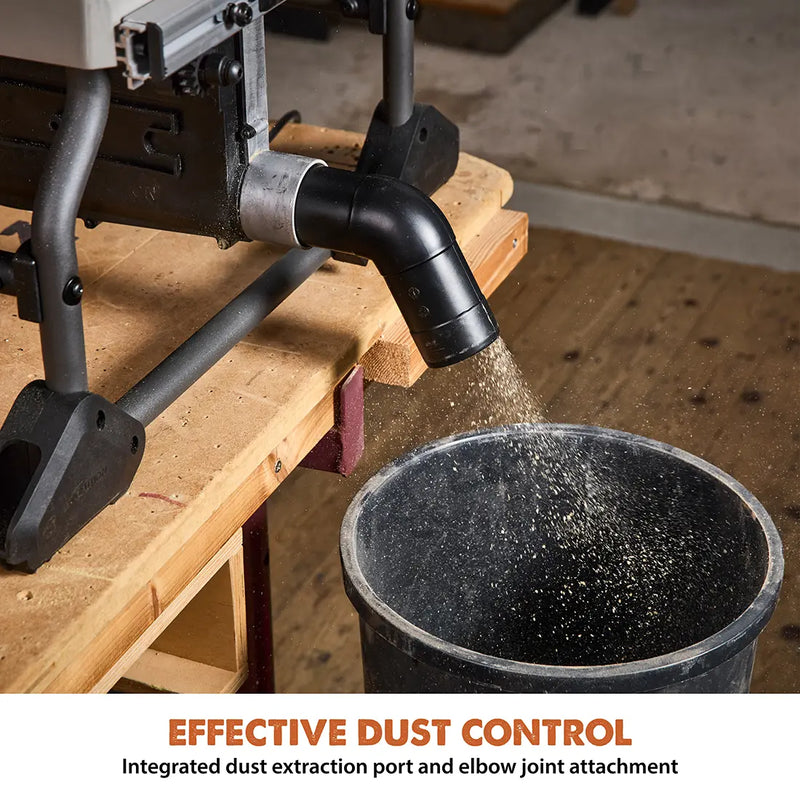

Blade Guard with Dust Extraction Port |
Built In Crosscut Sled |
Dust Extraction 90° Elbow |
Miter Gauge |
Adjustable Rip Fence |
Push Stick |
Riving Knife |
Blade Changing Spanners |
Assorted fixings |
