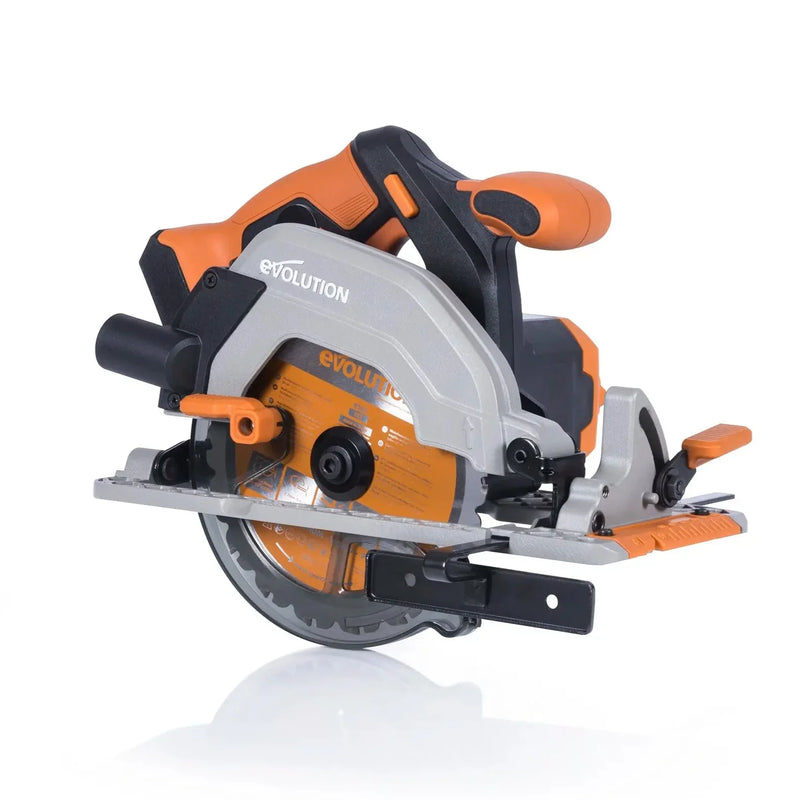

Evolution Cordless R165CCS-Li 6-1/2 in Circular Saw 20V Li-Ion EXT Inc Multi-Material Blade
With Charger & 4Ah Battery:
$229.00
×
Evolution Cordless R165CCS-Li 6-1/2 in Circular Saw 20V Li-Ion EXT Inc Multi-Material Blade
SKU: 066-0004A
EAN/UPC: 849713042750
- Multi-material Cutting.
- Carbide Tipped Blade.
- Portable and Compact Design.
- Ergonomic T-Handle. Read more
Specifications
| Blade Size | 6-1/2 In. |
| Warranty | 3 Years |
| Power Type | Cordless |
| Max Cut Depth Bevel 0° | 2-2/16” |
3 Years Year Warranty Register Your Warranty
45 Day Returns
Earn 180 EVO Points + 5% off your first order
$229.00
* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes cannot be used in the same order.
Description

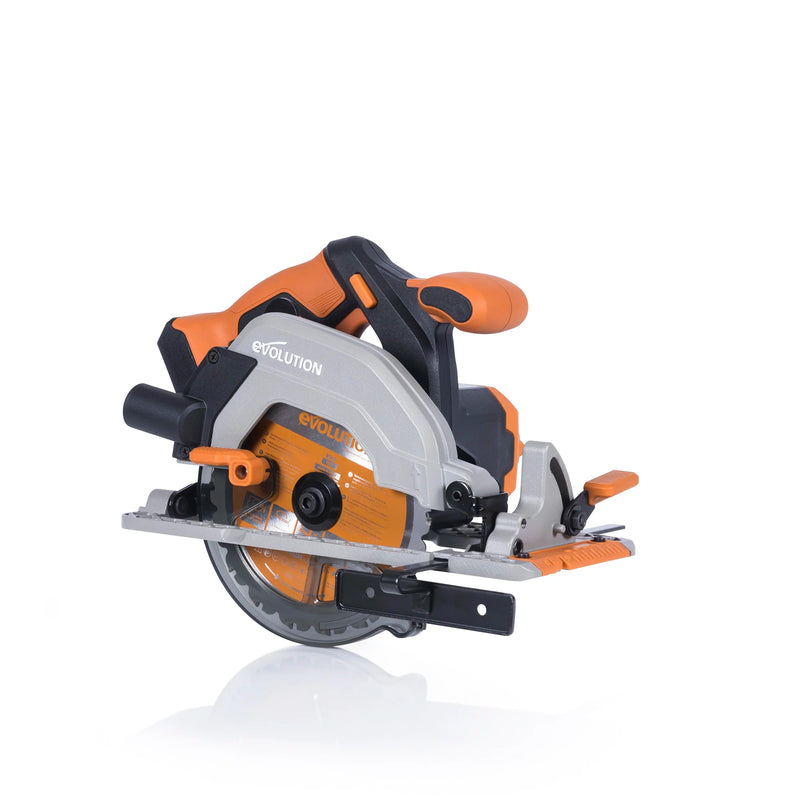

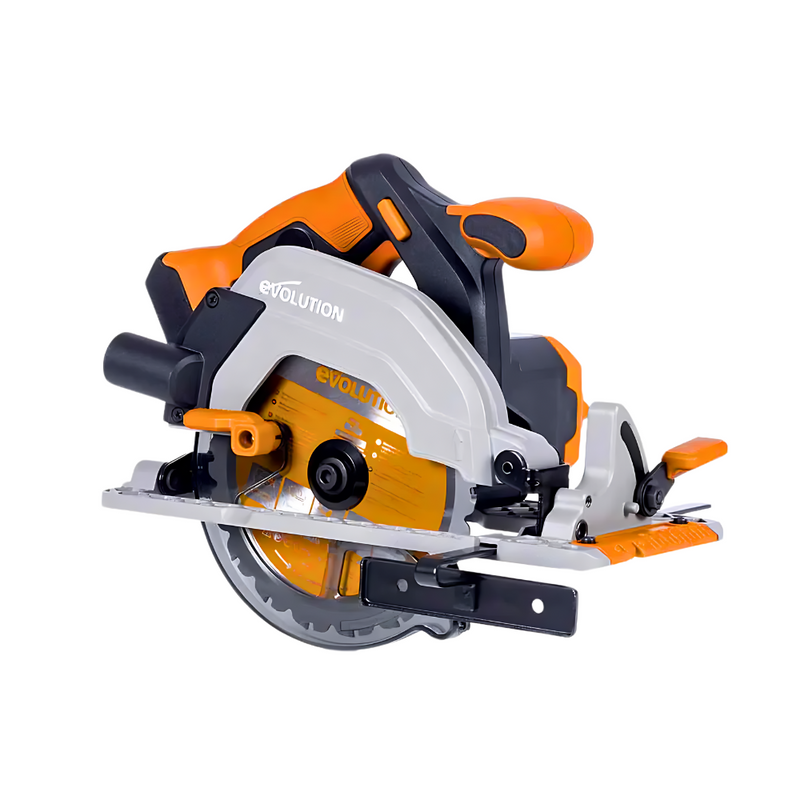

The Evolution R165CCS-Li Cordless Circular Saw delivers precise cuts in new and reclaimed wood, plastics, composites, and metals. Its powerful motor, accuracy, and long run times make it the perfect tool for taking on any worksite, and its compact size and Multi-Material blade technology make it ideal for any home project.
The R165CCS-Li 20V Li-ion Cordless Circular Saw is packed with features; Multi-Material cutting technology, dust collection & vacuum attachment port, its best-in-class adjustable 2-1/2 inch depth of cut., and 0-50° bevel capability provides real versatility. Clean and accurate cuts through new and reclaimed wood as well as cool to the touch, burr-free cuts through mild steel and non-ferrous metals with the supplied Multi-Material blade.
With first-rate ergonomics, a see-through polycarbonate blade guard, a soft start, and quick-stop electronic safety brake features, the R165CCS-Li is a breeze to use. Powerful and accurate with huge run times it's perfect for tradesmen who need a reliable, precision tool that won't break the bank. For home use, Evolution's Multi-material blade technology delivers cut after cut through wood, metals, plastics, and more making it the most versatile saw you can own.

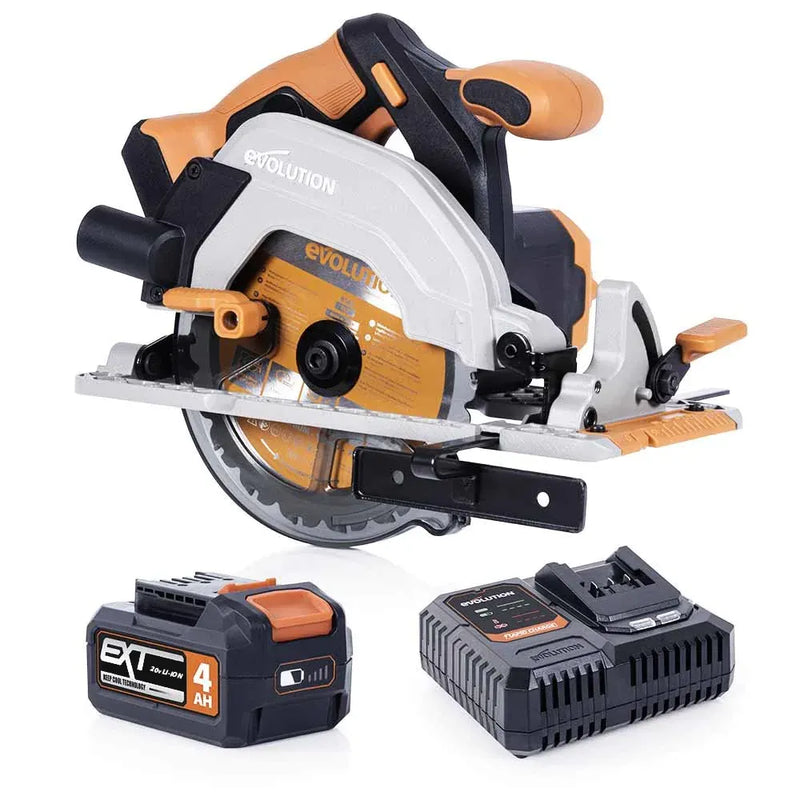

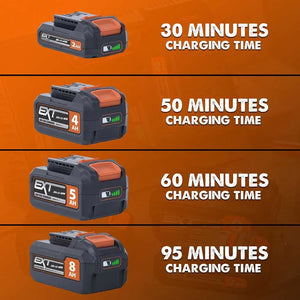

Powered by Evolution’s 20v EXT Li-Ion battery system the R165CCS-Li delivers long run times and has the power to cut any material anywhere. The loaded version is bundled with our R18BAT-Li4 4Ah battery pack and R18RCH-Li Single Port Rapid Charger which will take you from zero to fully charged in only 50 minutes and is capable of cutting through more than 164ft of 1/2 inch thick hardwood ply from a single charge. All of Evolution’s EXT Cordless Li-ion power tools are compatible with all EXT batteries, so you can share across multiple tools for maximum versatility.
If you want a powerful, versatile, cordless Circular Saw with best-in-class adjustable cutting depth, 0-50º bevel cutting ability, and ready to cut any material anywhere the R165CCS-Li is a cut above the competition.
- EXT Li-ion cordless performance and versatility
- High Power 850W Brushed DC motor
- Optimized drivetrain for maximum battery life and run time per charge

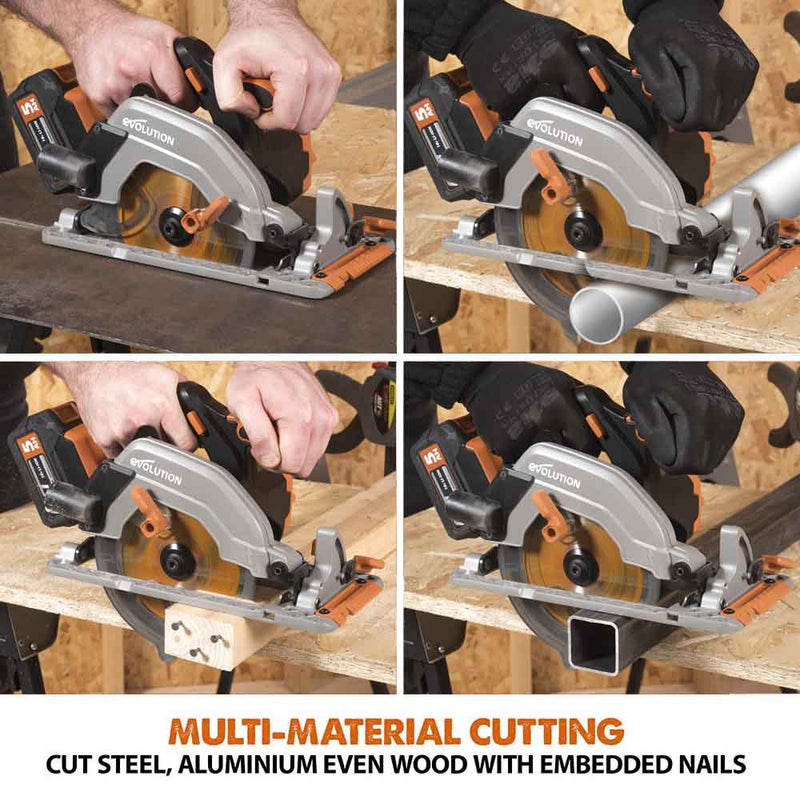

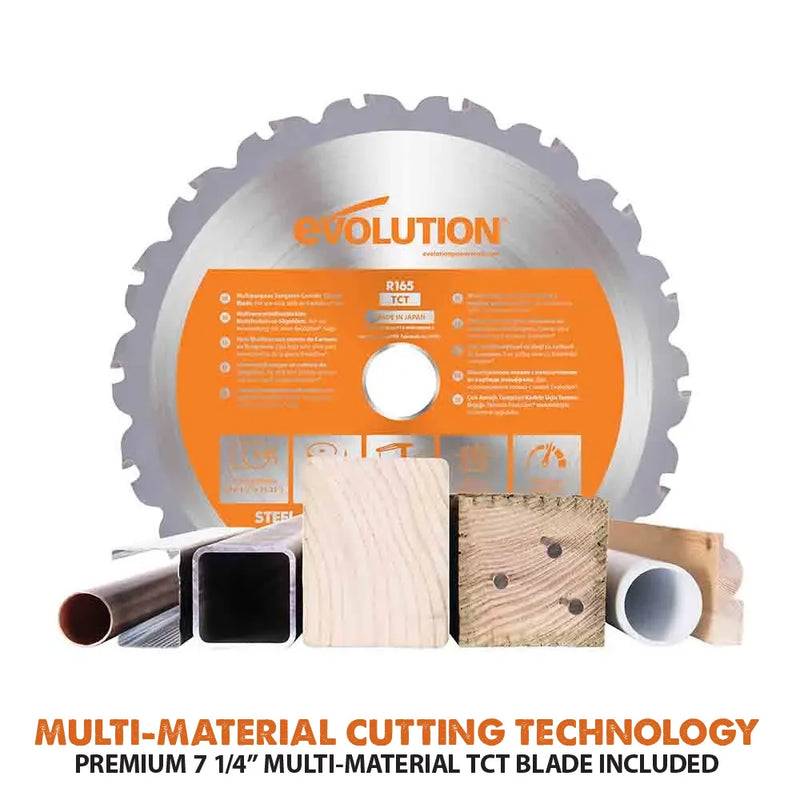

- Multi-Material: premium Japanese 20T Tungsten Carbide Tipped TCT blade, cuts wood, metal, plastic composites, and more

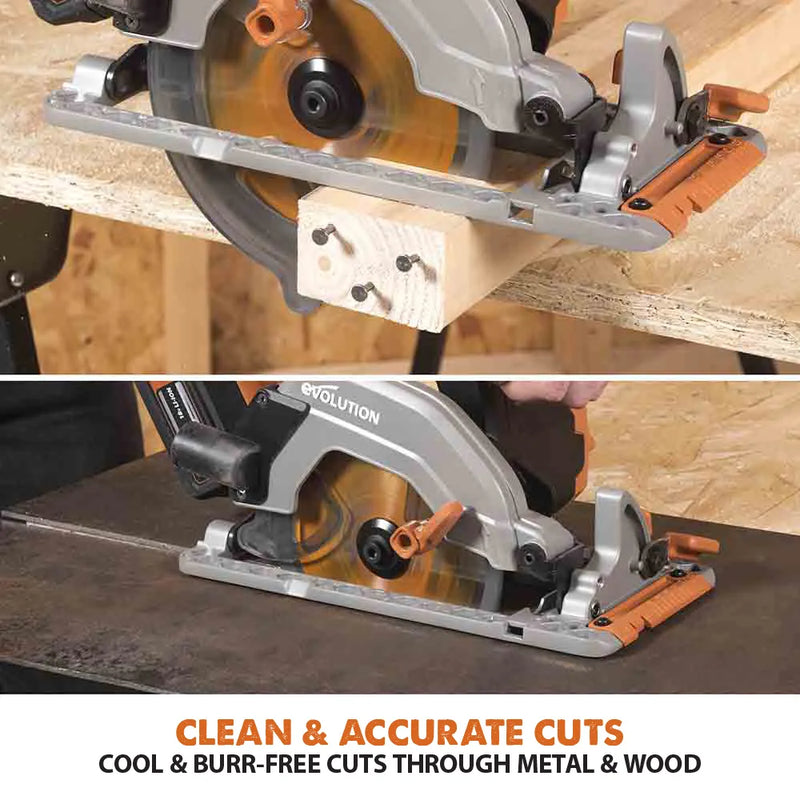

- Virtually spark-free cuts, with no heat, no burrs, and an instantly workable finish
- Cast alloy base, trade tough build.

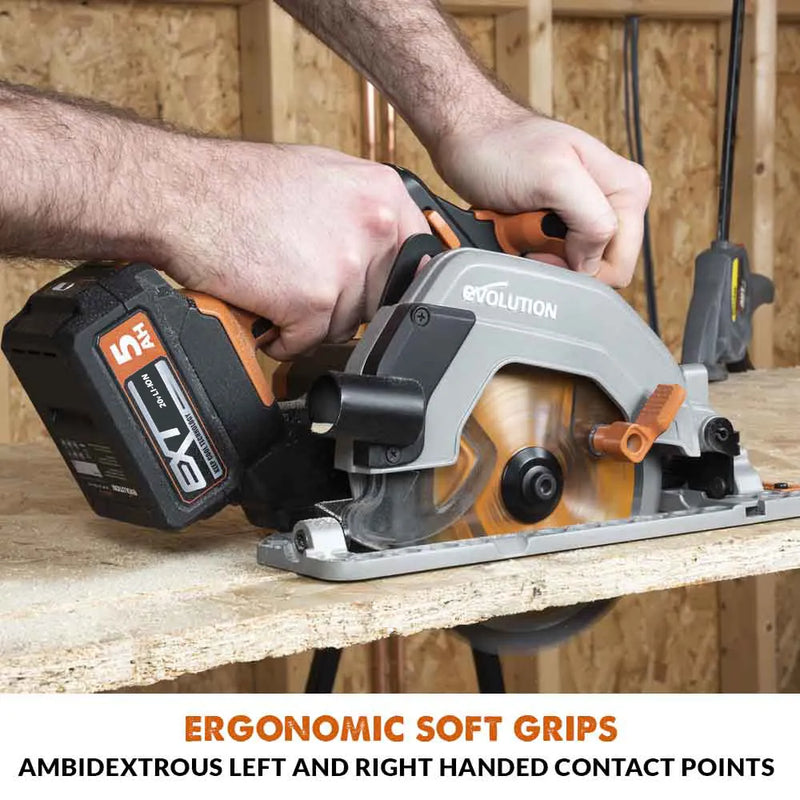

- Ergonomic ambidextrous soft grip handles for control and versatility

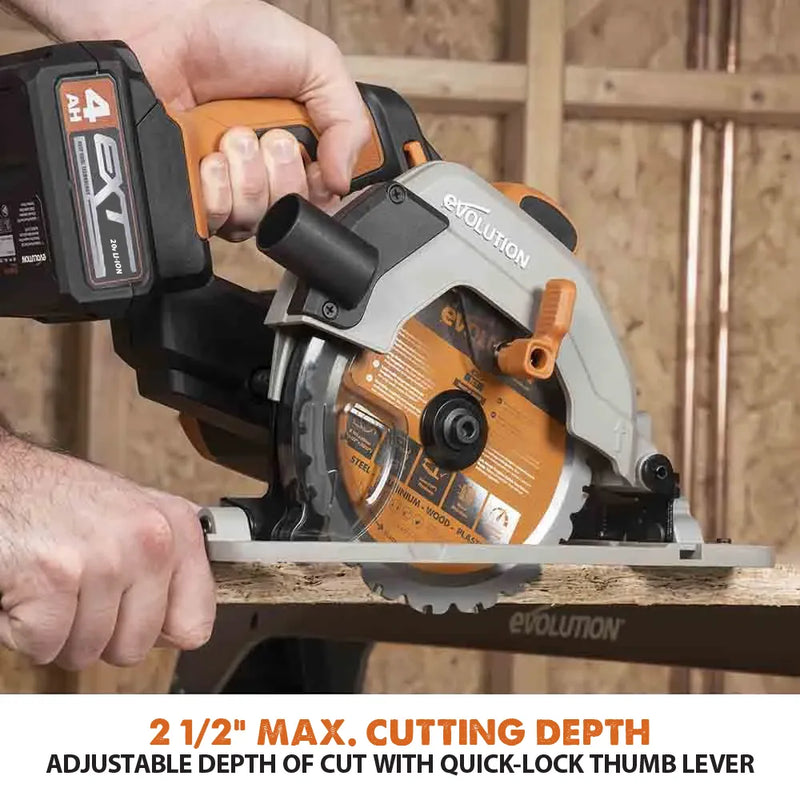

- Best in class, adjustable adjustable 2-1/2 inch depth of cut.

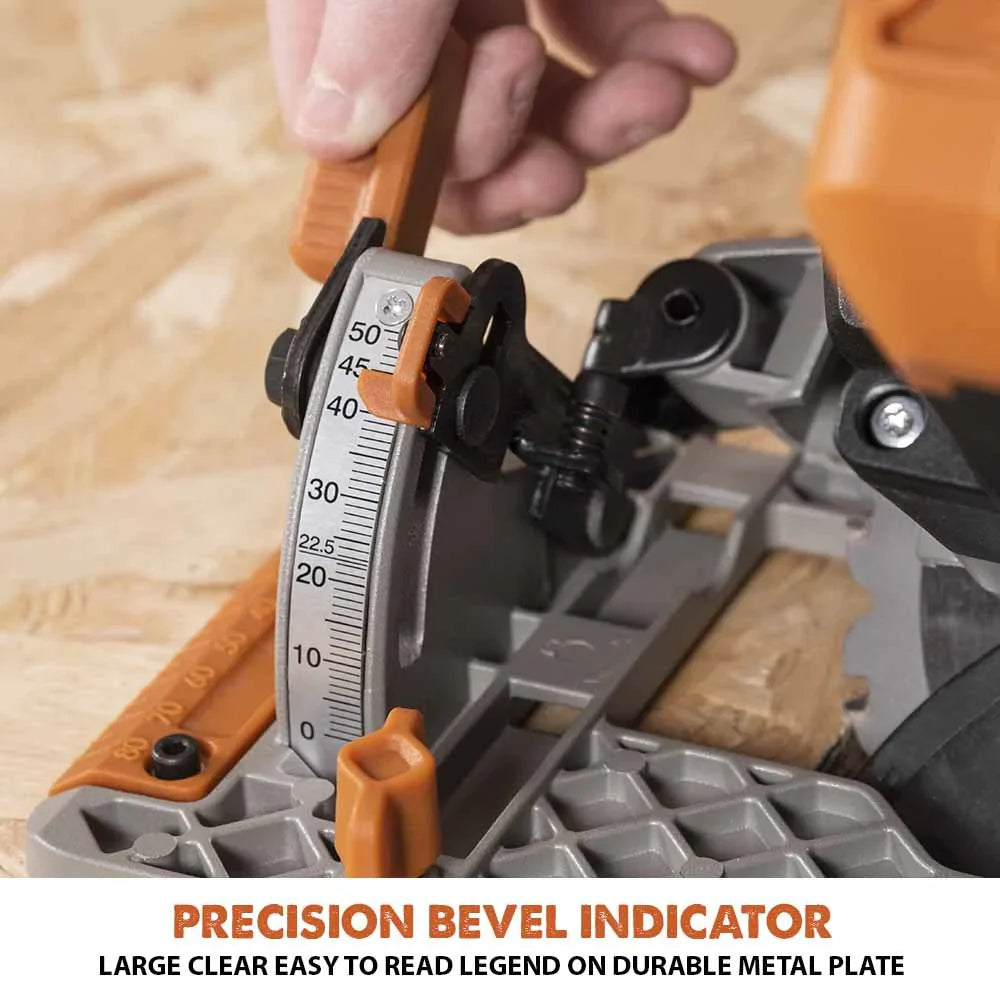

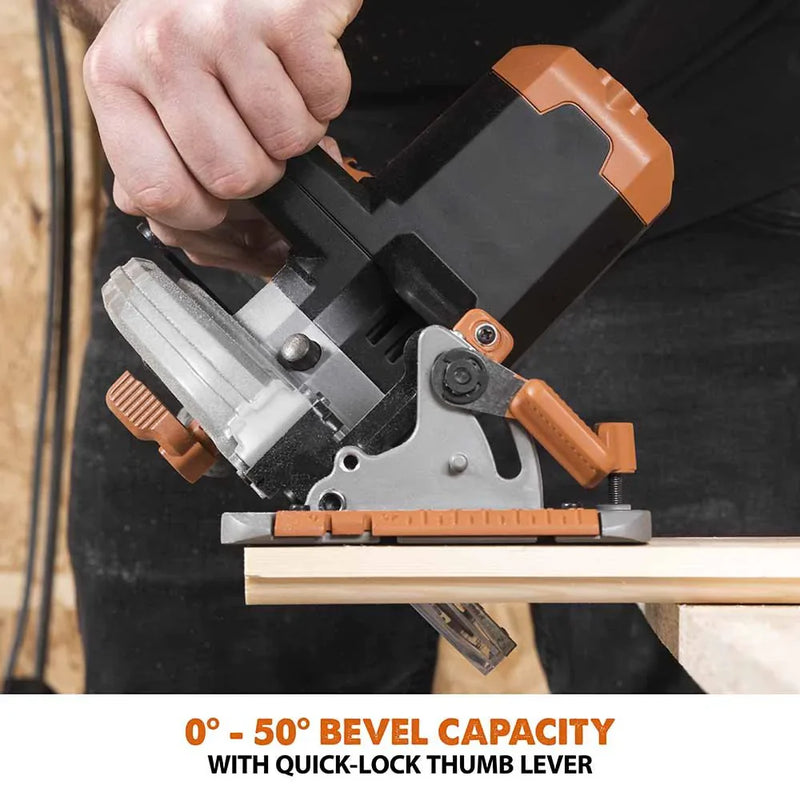

- 0-50° adjustable bevel with virtual blade pivot for perfectly measured cut width

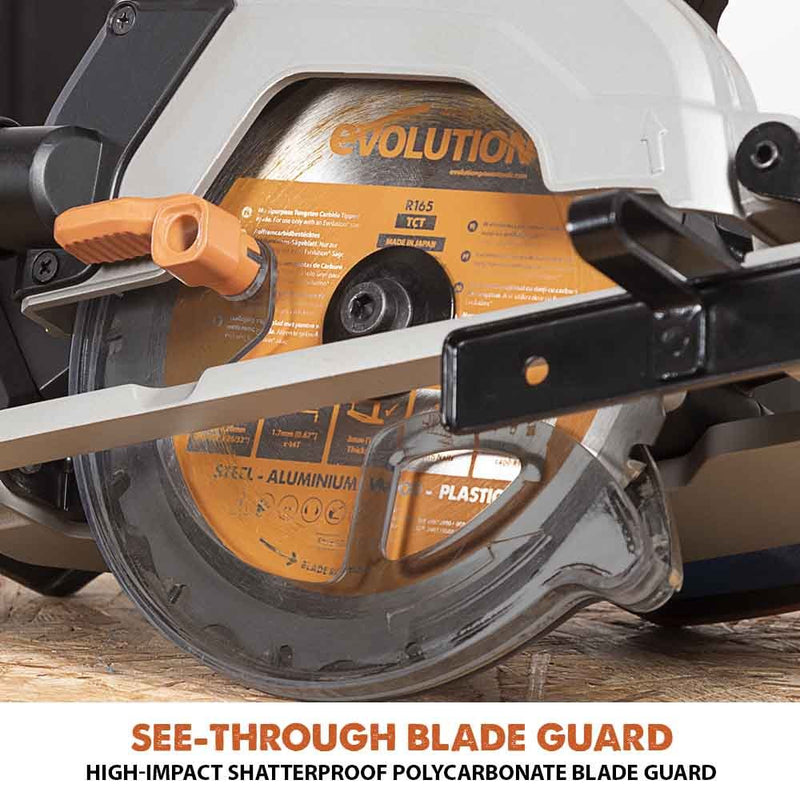

- Shatterproof, see-through polycarbonate blade guard for safe, easy cut alignment

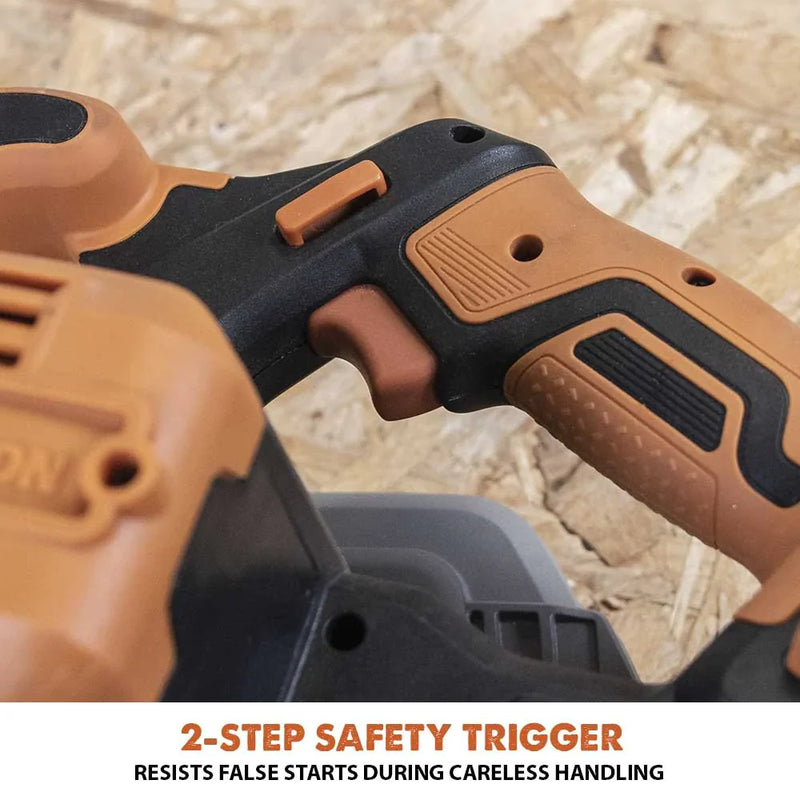

- Soft Start & Quick-Stop Electronic Blade Brake and 2-Step safety trigger for safe motor start-up

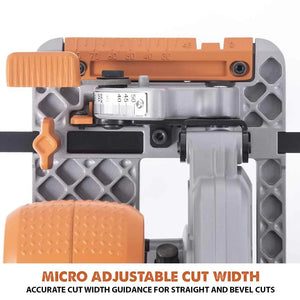

- Micro-adjustable cut width guide for precision full-length board cuts

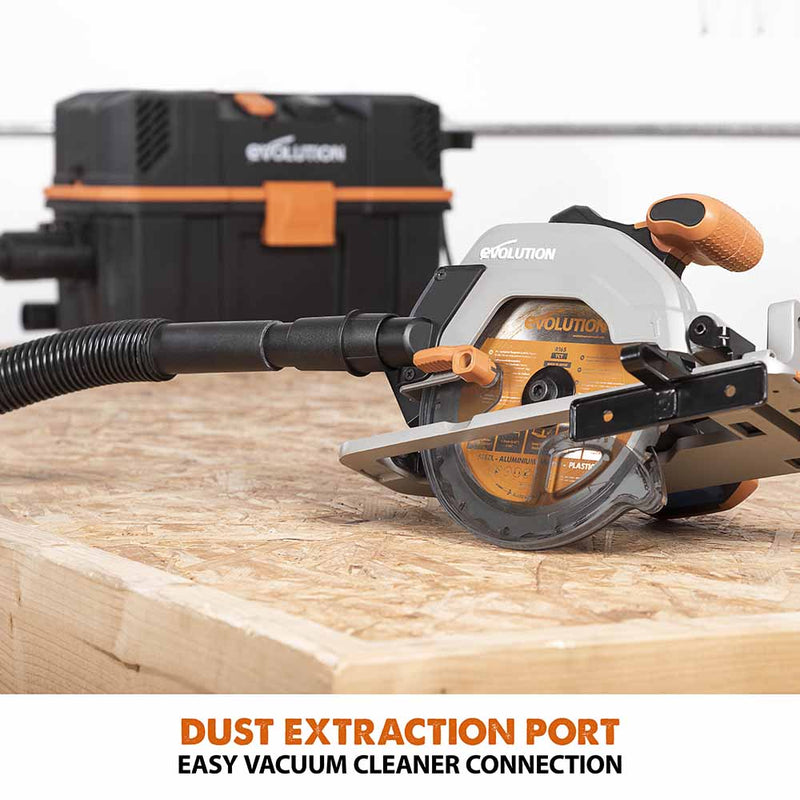

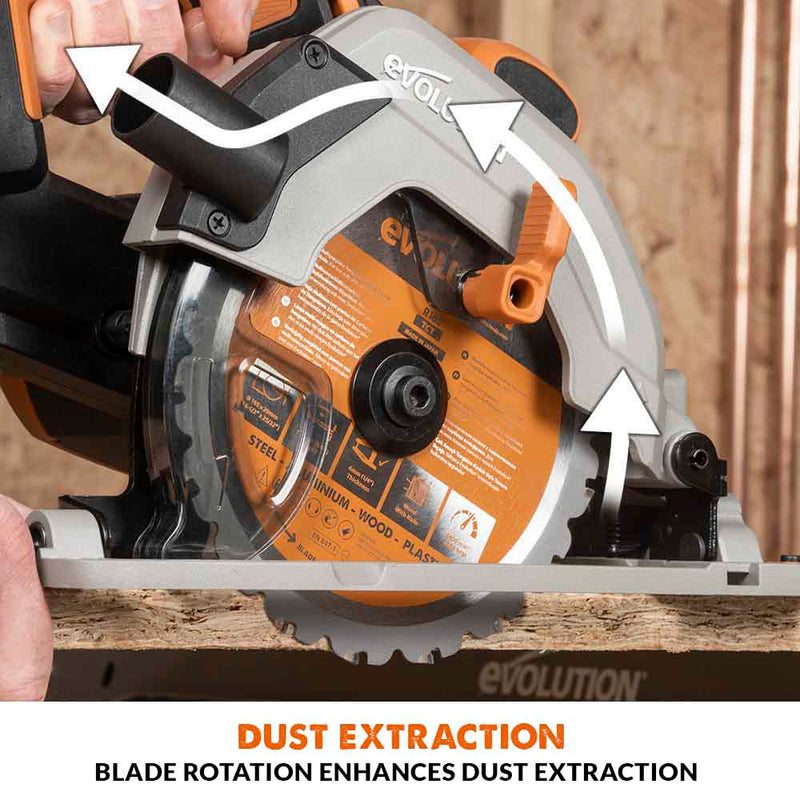

- Vacuum-compatible dust extraction

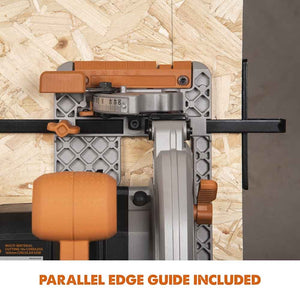

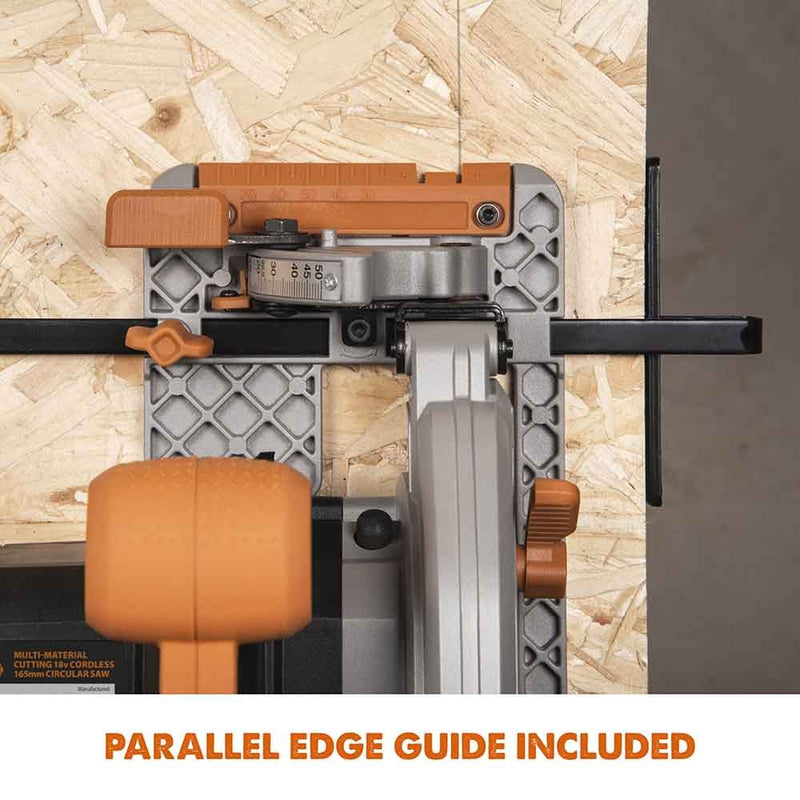

- Reliable straight, smooth, and square cutting with a parallel edge guide
- 3-Year limited warranty

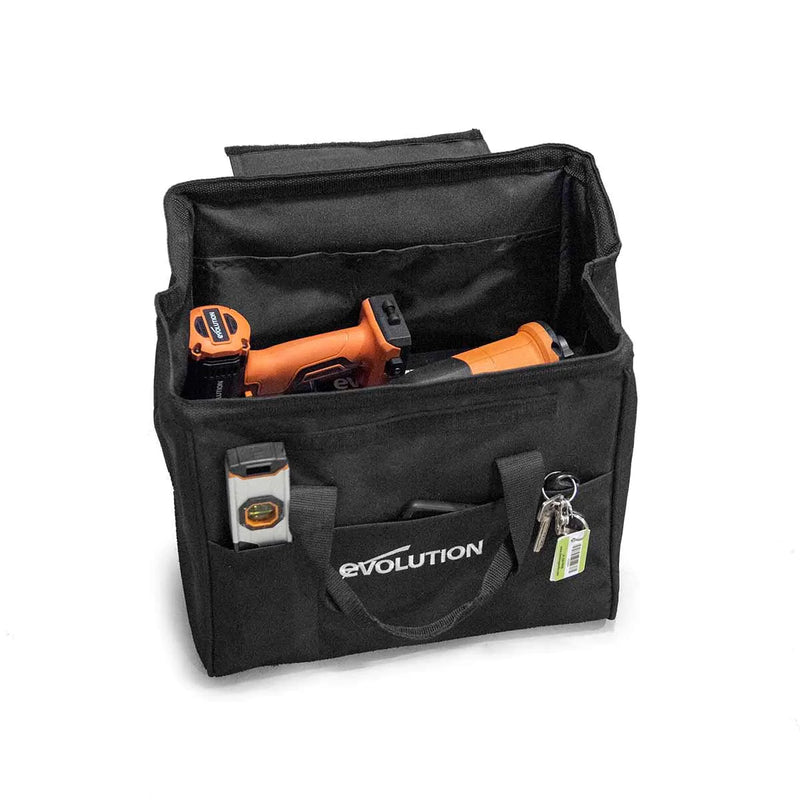

- NB- Circular Saw carry bag not included.
Cutting Capacity
| Max Cutting Thickness (plate) | 1/8 in |
| Max Wall Thickness | 1/8 in |
| Max 90 degree | 2-4/25 in |
| Max 45 Degree | 1-1/2 in |
| Max 50 degree | 1-1/4 in |
Specifications
Machine
| Voltage |
20V |
|
Power |
850W |
|
No Load Speed (min-1 rpm) |
4600rpm |
|
Net Weight |
7.5 lbs |
|
Dust port Adaptor Size |
1-9/32 In. |
| Maximum Bevel Capacity (degrees) | 50° |
Blade
| Blade Diameter | 6-1/2 in |
| Max Speed (min-1 rpm,) | 5200rpm |
| Bore Diameter | 25/32 in |
| Kerf | 0.066 in |
| Noise & Vibration Data | |
| Sound pressure level Lpa | 87.2 db (A); K=3db (A) |
| Sound power level Lwa | 92 db (A); K=3db (A) |
| Vibration | ah,w=2,302m/s2 Main Handle |
| ah,w=2,218m/s2 2nd Handle |
Items Supplied
| Instruction Manual | Bare | Loaded |
| Multi-Material TCT Blade (R165TCT-18CS) | x | x |

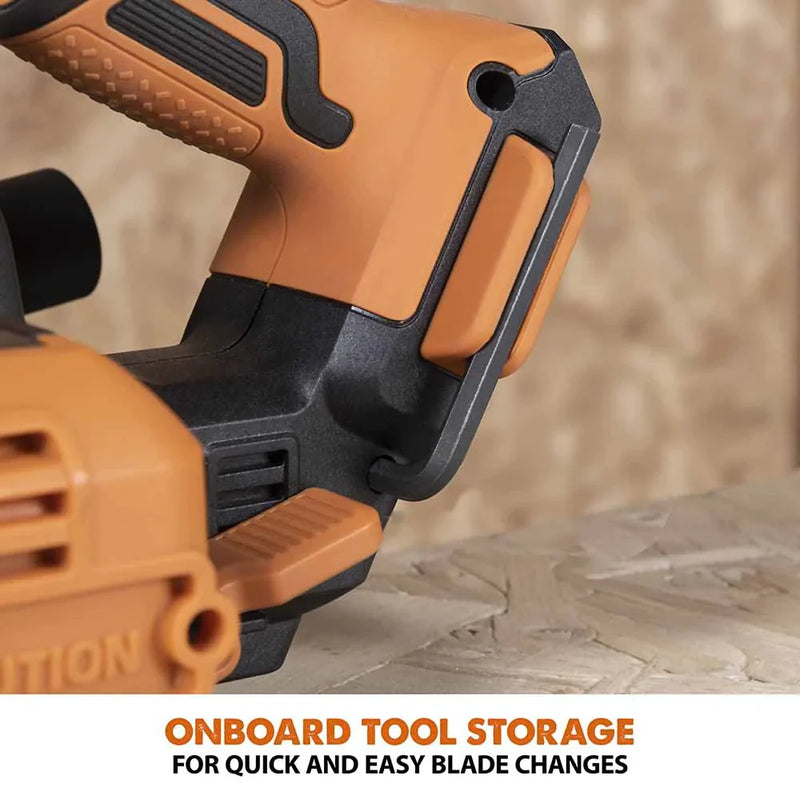

| Hex Key (blade change) | x | x |
| Parallel Edge Guide | x | x |
| Dust Port Adaptor | x | x |
| Dust Hose Adaptor | x | x |
| 2Ah Battery | ||
| 4Ah Battery | x | |
| 5Ah Battery | ||
| 8Ah Battery | ||
| Single Port Fast Charger | x | |
| Dual Port Fast Charger |
3-Year Guarantee
3-Year Guarantee
Please keep your proof of purchase / delivery.
- The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under guarantee will not extend the period of guarantee.
- The guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
- The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the guarantee period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
- Overseas users should contact the official importer for that country.
Evolution does not warrant the repair or replacement of a product when the following has occurred;
- Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
