Evolution EVOMAG42: 1-5/8 In. Magnetic Drill With Carry Case
SKU: EVOMAG42
EAN/UPC: 849713033314
- Compact & Powerful: Handles up to 1-5/8 inch cutters; strong magnetic adhesion.
- Versatile & Portable: Lightweight for easy positioning in tight spaces.
- Integrated Coolant System: Ensures efficient drilling and extended cutter life.
- Includes Carry Case: Ideal for industrial and site use. Read more
3 Years Year Warranty Register Your Warranty
45 Day Returns
Earn 960 EVO Points + 5% off your first order
$959.00
* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes cannot be used in the same order.
Frequently Bought Together
Description
The EVOMAG42 is versatile, accurate and portable with strong magnetic adhesion. Ideal for site use - with so many buildings being built around a steel framework, a magnetic drill is an essential product and ideal for site use.
- Industrial Quality - This incredible Magnetic Drill is deceptive in its capabilities; although small in size it is well-suited for heavy-duty industrial and fabrication work. The EVOMAG42 is versatile, accurate and portable with strong magnetic adhesion.
- Ideal for site use - With so many buildings being built around a steel framework, a Magnetic Drill is an essential product and ideal for site use. It is also easy to carry (with the supplied case) and its lightweight makes it manageable to position in both awkward and confined spaces.

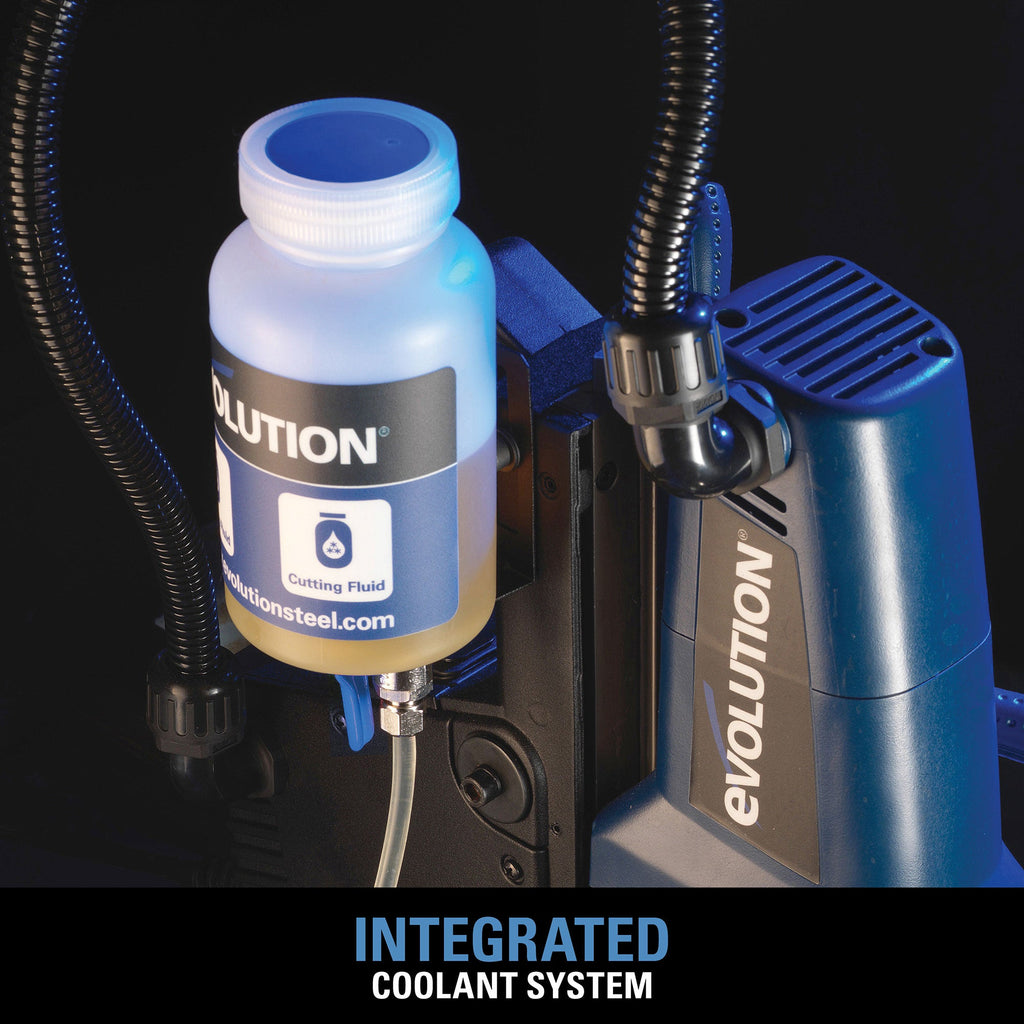

- The impressive EVOMAG42 offers an incredible value with the capability to use up to 1-5/8 inch (42mm) cutters and 1/2 inch (13mm) twist drills. The EVOMAG42 also features an integrated coolant system for magnetic drilling.
- Evolution also offers a large variety of tools to be used with the EVOMAG42. This offering includes a wide range of annular cutters, step drills, and mini-cutters. Extend the life of your cutters and get more value by using Evolution Cutting Fluid.
- Ideal For: Bridges, I-Beams and Framework
- Includes Carry Case
Cutting Capacities
| Maximum Annular Cutting Capacity | 1-5/8 In. / 42 mm |
| Maximum Cutting Depth | 2 inch |
| Cutter Shank | 3/4 inch |
| Standard Twist Drill Capacity | 1/2 inch |
| Magnetic Adhesion | 2860lbs f |
| Minimum Plate Thickness | 3/8 inch |
Specifications
Machine Spec
| Motor (120V 60Hz): | 10A |
| Speed No Load: | 450 rpm |
| Number of Speeds | 1 |
| Insulation Class | 1 |
| Cable Length: | 8ft 2inch |
| Product Weight: |
26 lb |
Dimensions
| Magnet Dimension | 1-5/8 x 3-1/2 x 7-1/8 inch |
| Maximum Machine Height | 25-3/4 inch |
| Minimum Machine Height | 16-1/2 inch |
| Machine Width | 8-3/4 inch |
Noise Data
| Sound Pressure Level LPA: | 89.40dB(A) K:3dB(A) |
| Sound Power Level LWA: | 102.4dB(A) K=3 dB(A) |
Vibration Data
| Hand Arm Vibration | 0.629m/s2 K= 1.5m/s2 |
Items Included
| Instruction Manual |
| Coolant Tank System |
| Handles x3 |
| Safety Strap |
| Safety Guard |
| Safety Guard Fixing Screws x2 |
| Hex Key 2mm |
| Hex Key 3mm |
| Hex Key 4mm |
| Hex Key 5mm |
| Chuck with Chuck Key |
| Carry Case |
Accessories
| Image | Description | Compatible With | Part Number |
|---|---|---|---|
 |
1/2" Chuck & Key | EVOMAG28 and EVOMAG42 | HTA153 |
 |
Chuck Adaptor* *Required to fit the HTA153 1/2" chuck. |
EVOMAG42 | HTA47 |
Documents
3-Year Guarantee
3-Year Guarantee
Please keep your proof of purchase / delivery.
- The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under guarantee will not extend the period of guarantee.
- The guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
- The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the guarantee period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
- Overseas users should contact the official importer for that country.
Evolution does not warrant the repair or replacement of a product when the following has occurred;
- Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
