Saw Blades
×
Evolution EVOSAW185HD: Metal Cutting Chop Saw With 7-1/4 in. Blade
SKU: EVOSAW185HD
EAN/UPC: 849713074379
- No Heat, No Burrs & Virtually No Sparks.
- 2 In. x 4 In. Cross Cut Capacity.
- Pressed Steel Base | Quick, Accurate Angle Adjustments.
- Powerful 10A High Torque Motor. Read more
3 Years Year Warranty Register Your Warranty
45 Day Returns
Earn 320 EVO Points + 5% off your first order
$319.00
* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes cannot be used in the same order.
Frequently Bought Together
Description
The EVOSAW185 easily cuts mild steel without heat or burrs and virtually no sparks. The quick-release adjustable vise allows for fast and accurate angle cuts from 0-45˚. Ideal for cutting steel plate, square tube, angle iron, pipe, rebar, copper pipe, conduit, and steel studs.
- No Heat, No Burrs & Virtually No Sparks.
- No Coolant Required.
- Pressed Steel Base.
- 10A Powerful High Torque Motor.
- 2 In. x 4 In. Cross Cut Capacity.
- 2 In. x 2 In. Square Tube Capacity.
- 2 In. Ø Round Tube Capacity.
- 3 Years Limited Warranty.

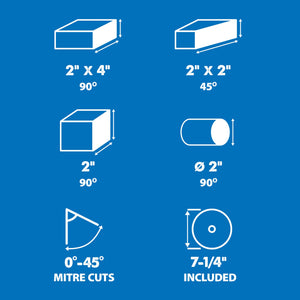

Cutting Capacity
| Mild Steel Plate (Max Thickness): | 1/4 In. |
| Mild Steel Box Section (Max Wall Thickness): | 1/8 In. |
| Square Tube at 90° (Mild Steel): | 2 In. |
| Square Tube at 45° (Mild Steel): | 2 In. |
| Rectangle Tube at 90° (Mild Steel): | 2 In. x 4 In. |
| Rectangle Tube at 45° (Mild Steel): | 2 In. x 2 In. |
| Round Tube at 90° (Mild Steel): | ø 2 In. |
| Round Tube at 45° (Mild Steel): |
ø 2 In. |
Specifications
Machine
| Motor (120V 60Hz): | 10 A |
| Speed No Load: | 4200 rpm |
| Max. Bevel (Left): | 45° |
| Cable Length: | 6-9/16 ft |
Blade
| Blade Diameter | 7-1/4 In. |
| No. of Teeth: | 40 |
| Arbor | 20mm |
| Kerf | .078 In. |
Dimensions
| Motor (120V 60Hz): | 10 A |
| Speed No Load: | 4200 rpm |
| Max. Bevel (Left): | 45° |
| Cable Length: | 6-9/16 ft |
Items Included
| 40T Mild Steel TCT Blade | |
| Hex Key 6mm (Vise Adjustment) | |
| Hex Key 5mm (Blade Change) | |
| Hex Key 3mm (Upper Blade Guard) | |
| Dust Extraction Port 36mm | |
| Speed Handle | |
| Spare Motor Brushes (1 set) |
Documents
3-Year Guarantee
3-Year Guarantee
Please keep your proof of purchase / delivery.
- The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under guarantee will not extend the period of guarantee.
- The guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
- The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the guarantee period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
- Overseas users should contact the official importer for that country.
Evolution does not warrant the repair or replacement of a product when the following has occurred;
- Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
