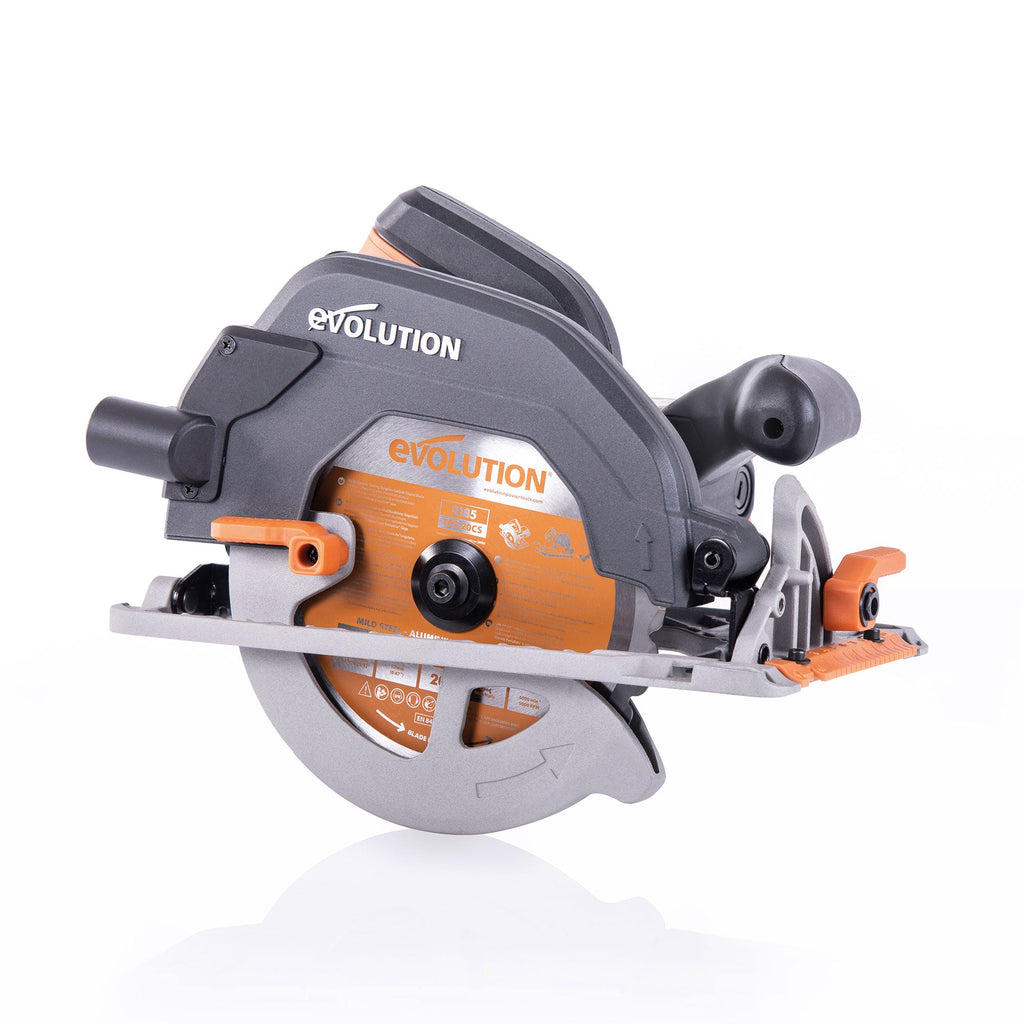

Evolution R185CCS: Multi-Material Cutting Circular Saw 7-1/4 in. Blade
SKU: R185CCS
EAN/UPC: 849713074126
- Multi-Material cutting technology.
- Adjustable 2-1/2 inch depth of cut.
- 0° - 60° bevel tilt with 22.5° and 45° bevel detents.
- Powerful 15A motor, Hi-torque gearbox. Read more
Specifications
| Blade Size | 7-1/4 In. |
| Warranty | 3 Years |
| Power Type | Corded |
| Max Cut Depth Bevel 0° | 2-2/16” |
3 Years Year Warranty Register Your Warranty
45 Day Returns
Earn 160 EVO Points + 5% off your first order
$159.00
* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes cannot be used in the same order.
Frequently Bought Together
Description

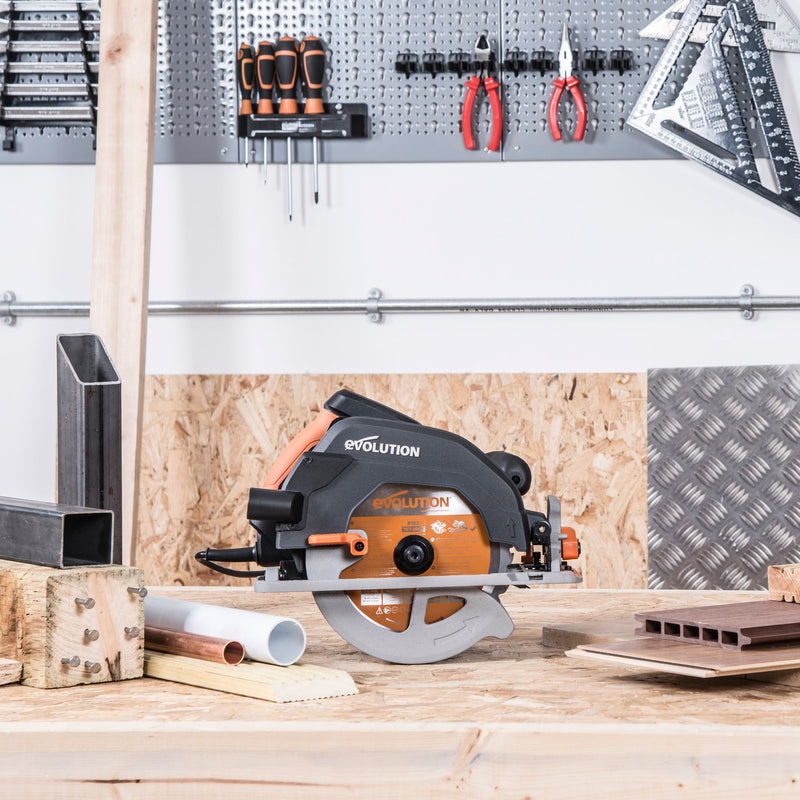

The ideal circular saw for any trade or workshop. Featuring adjustable 2-1/2 inch cutting depth and 0˚ - 60˚ bevel tilt with 22.5° and 45° bevel detents. This saw has the power to perform - tested and trade rated to cut through a variety of materials with ease.
- Multi-Material cutting technology. One saw, one blade, cuts all.*

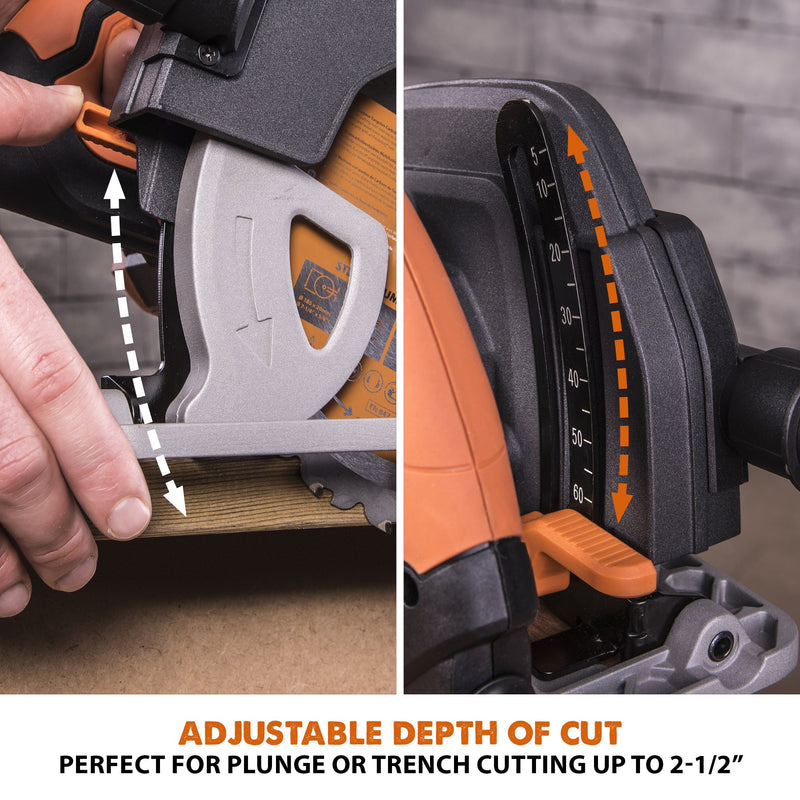

- Accurate cutting with adjustable 2-1/2 inch depth of cut - perfect for trench cutting.

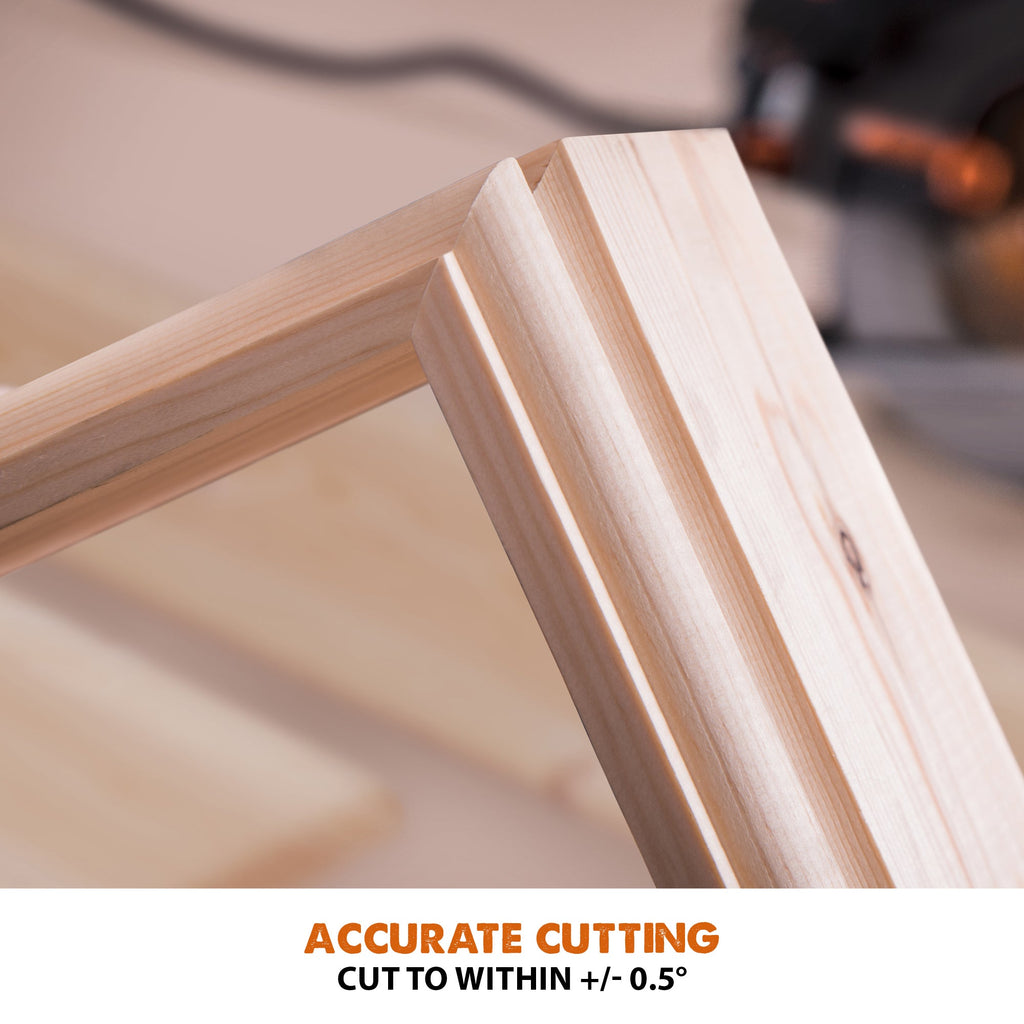

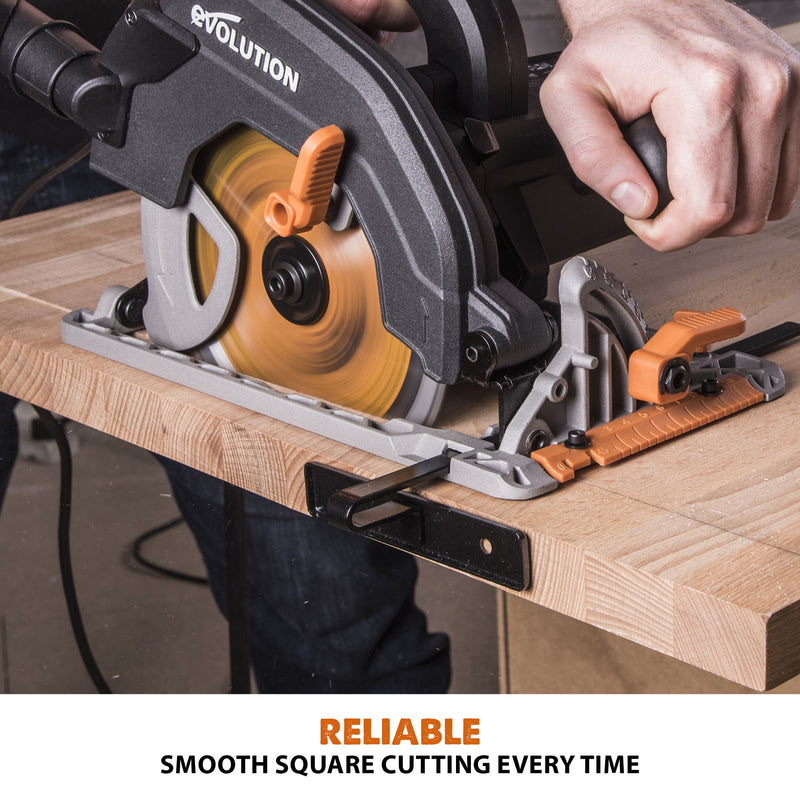

- Reliable, smooth square cutting every time in a variety of materials.

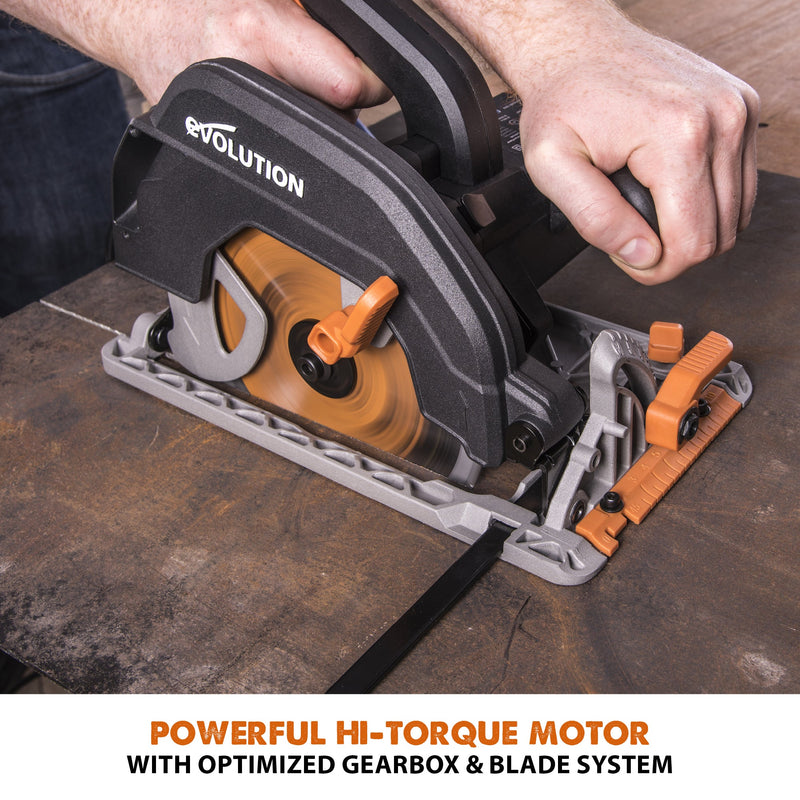

- Powerful 15A hi-torque motor with an optimized gearbox and blade system.

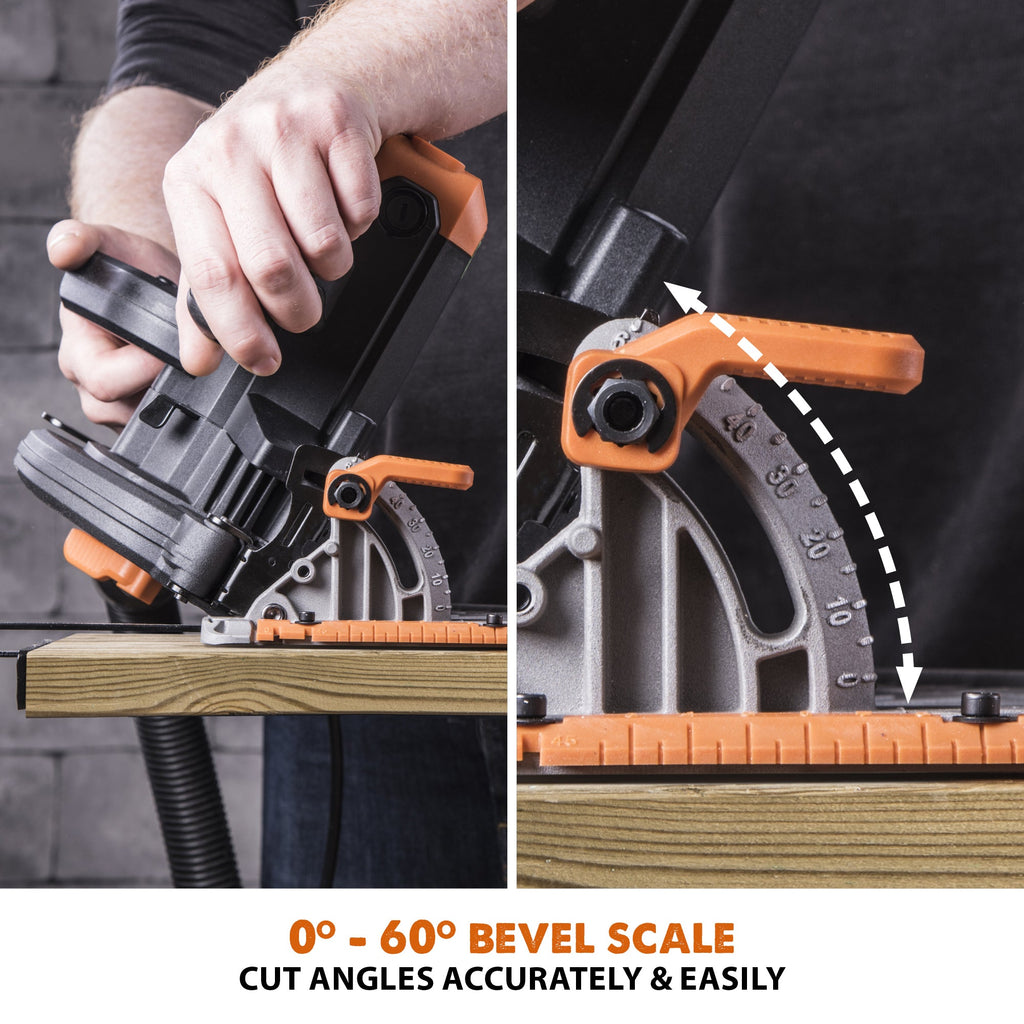

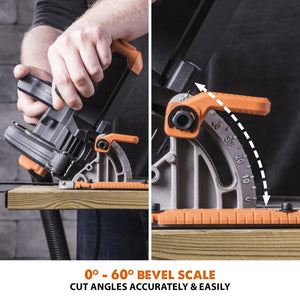

- 0° - 60° bevel tilt with 22.5° and 45° bevel detents cuts angles accurately and easily.

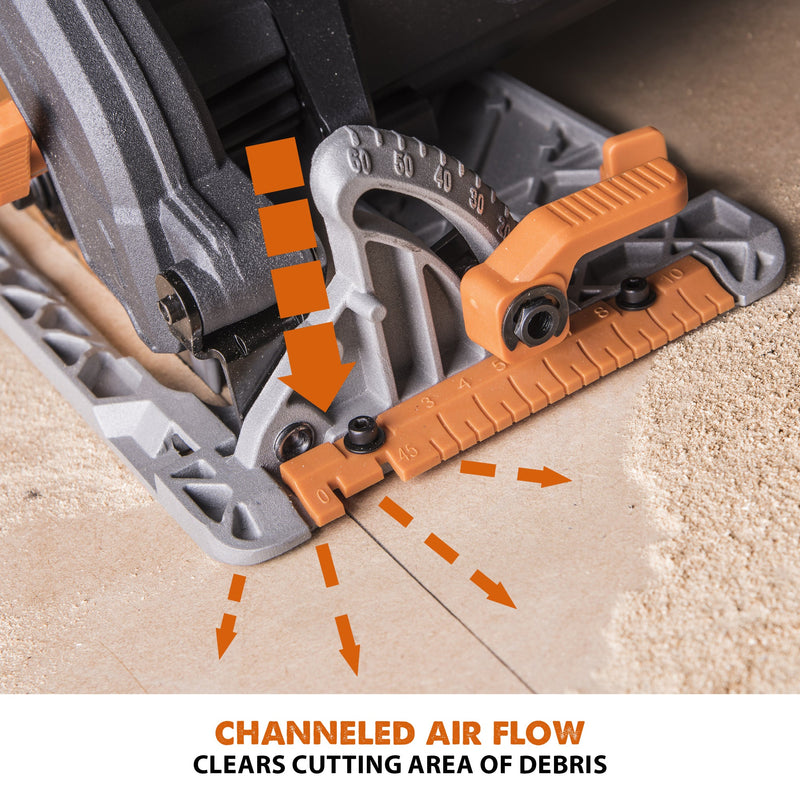

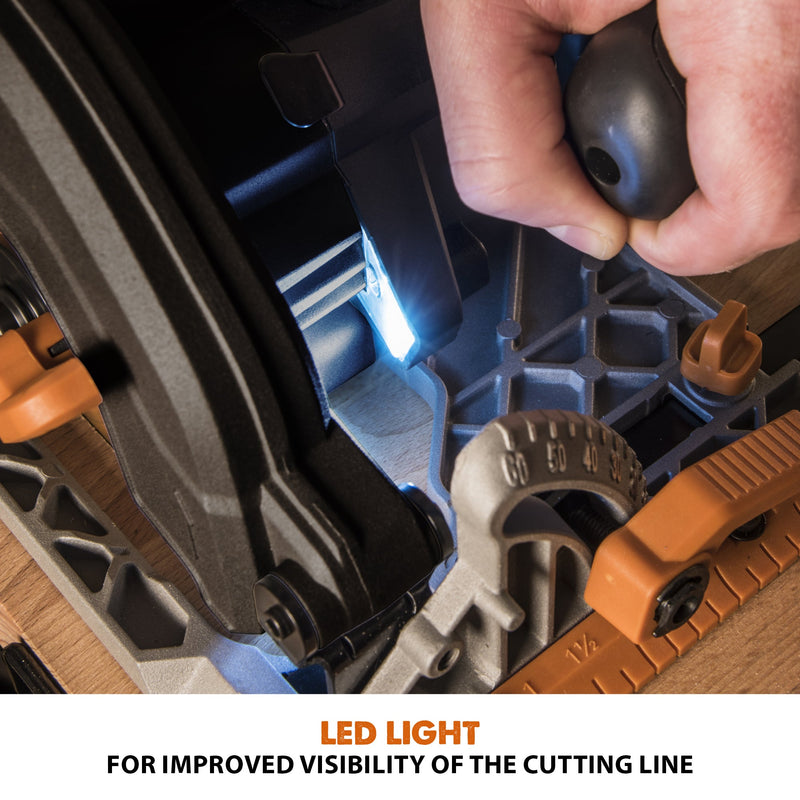

- LED Light channeled airflow and base indicators ensure optimum visibility of your cutting line.

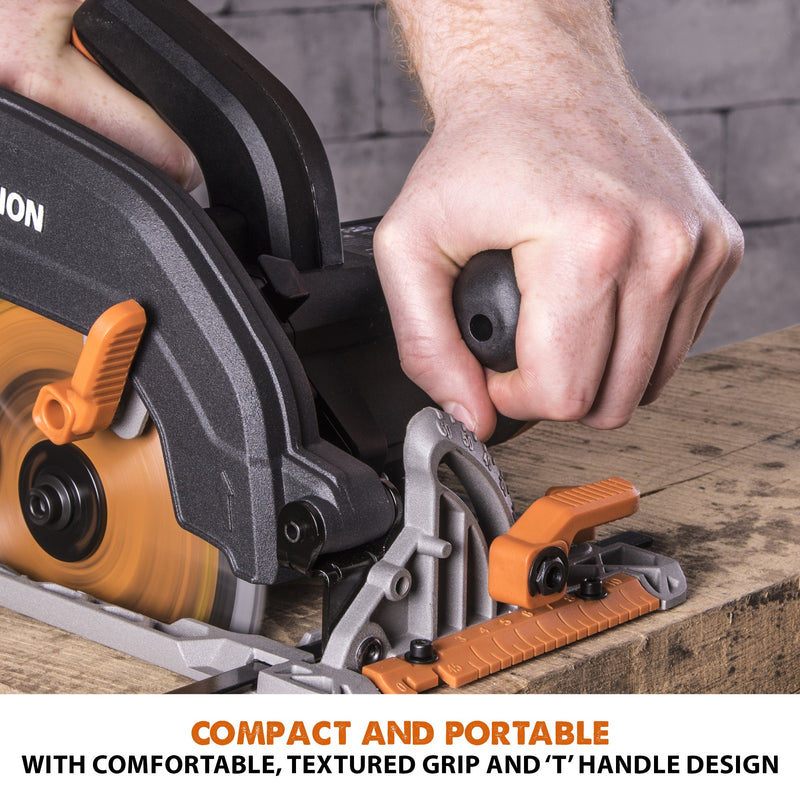

- Ergonomic, soft-grip handles provide maximum control, versatility, and precision.

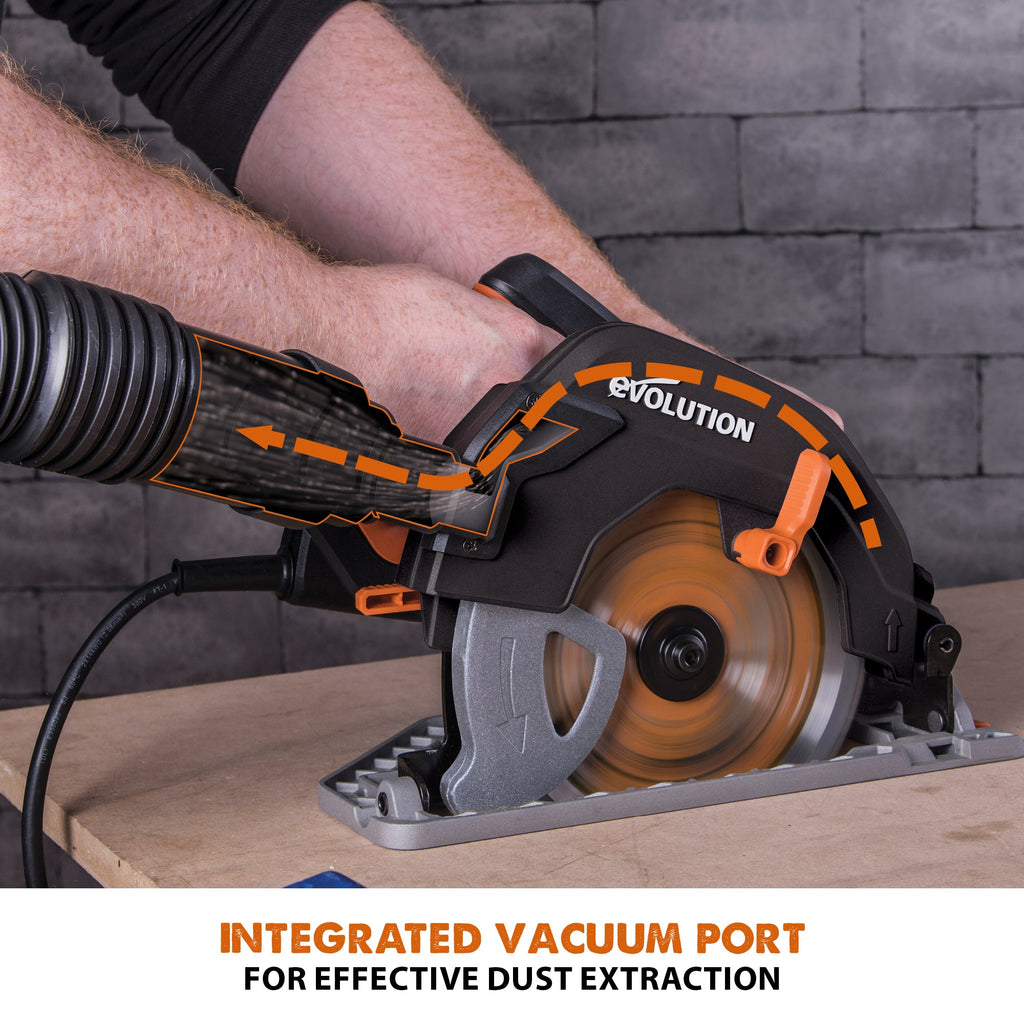

- Dust extraction port and adaptor included for vacuum compatibility.
- Japanese Tungsten-Carbide-Tipped (TCT) 7-1/4 inch blade included.
- 3 Year limited warranty.

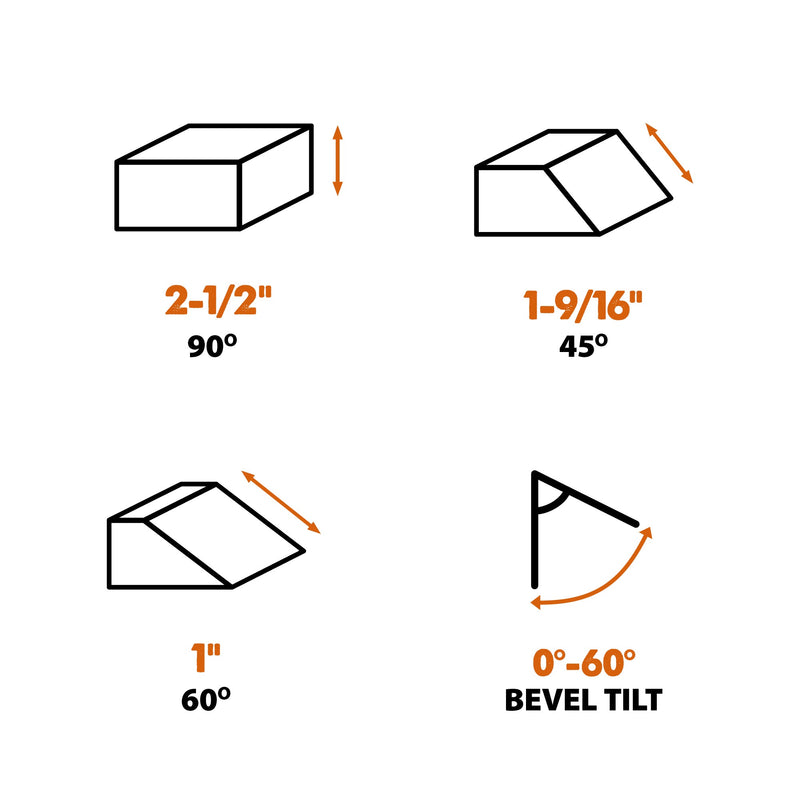

Cutting Capacities
| Max. Depth of Cut (0°): | 2-1/2in. |
| Max. Depth of Cut (45°): | 1-9/16in. |
| Max. Depth of Cut (60°): | 1in. |
| Mild Steel Plate (Max. Thickness): |
1/4in. |
| Mild Steel Box Section (Max. Wall Thickness): |
1/4in. |

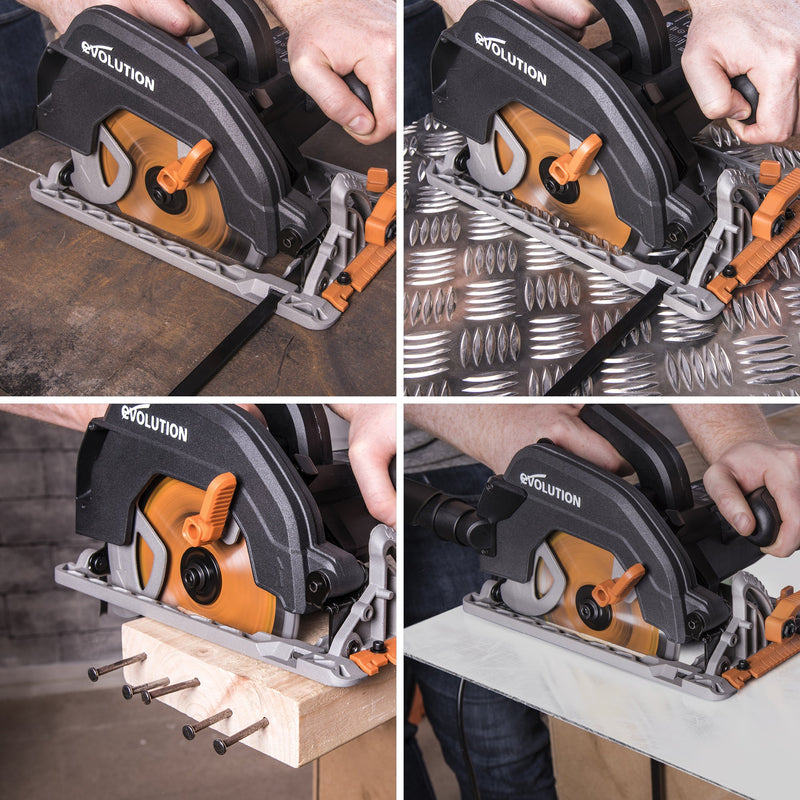

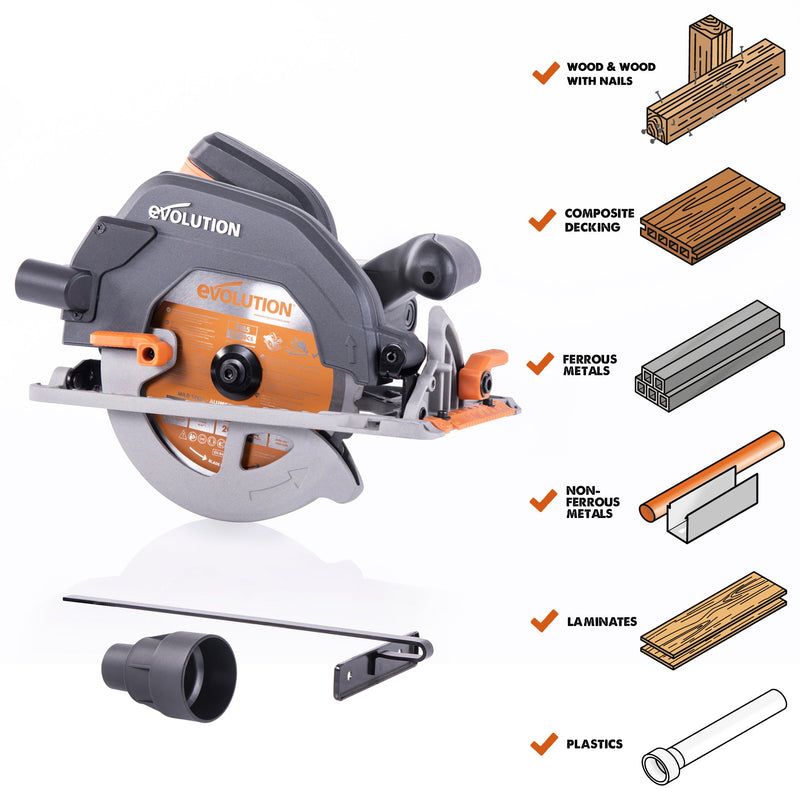

Cutting Applications
| Wood | Hardwood & tanalised decking, MDF laminates, mouldings, reclaimed wood with nails, scaffold boards & poles, stud-work. |

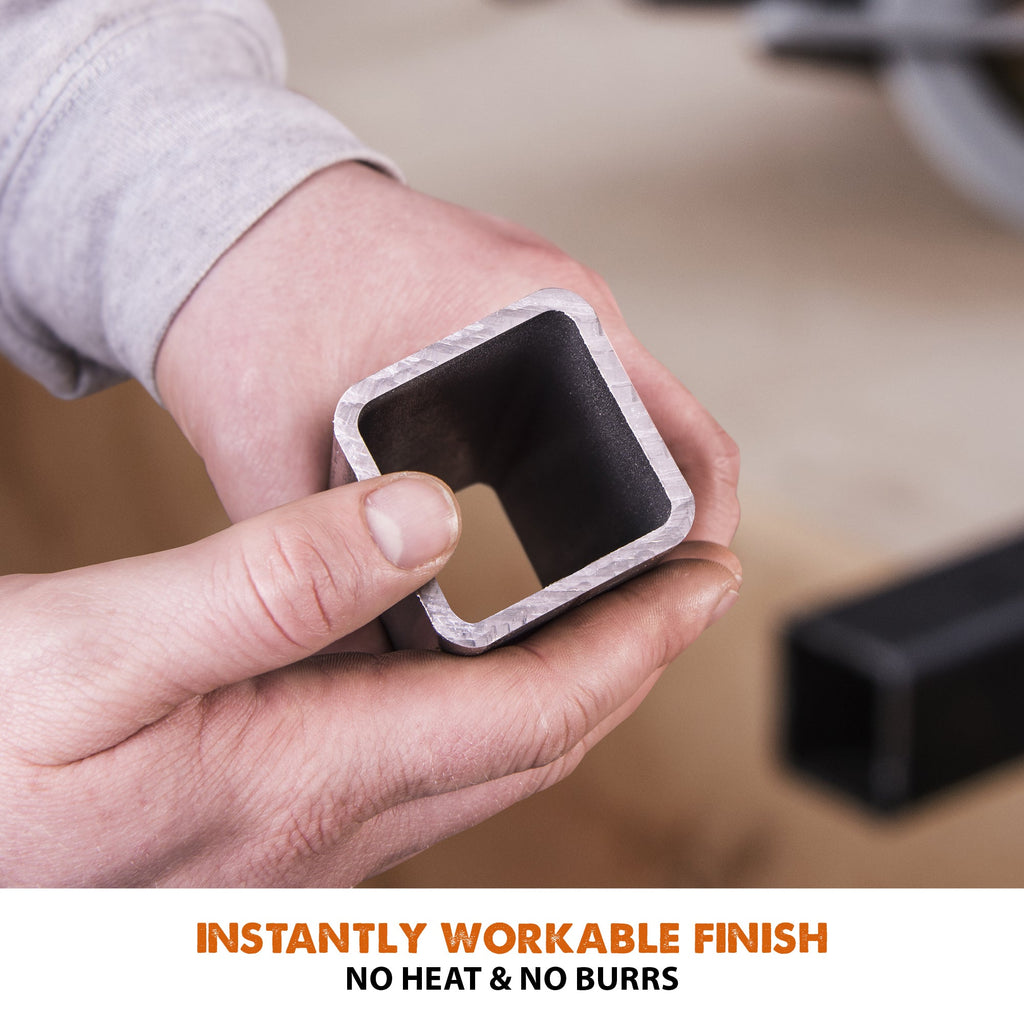

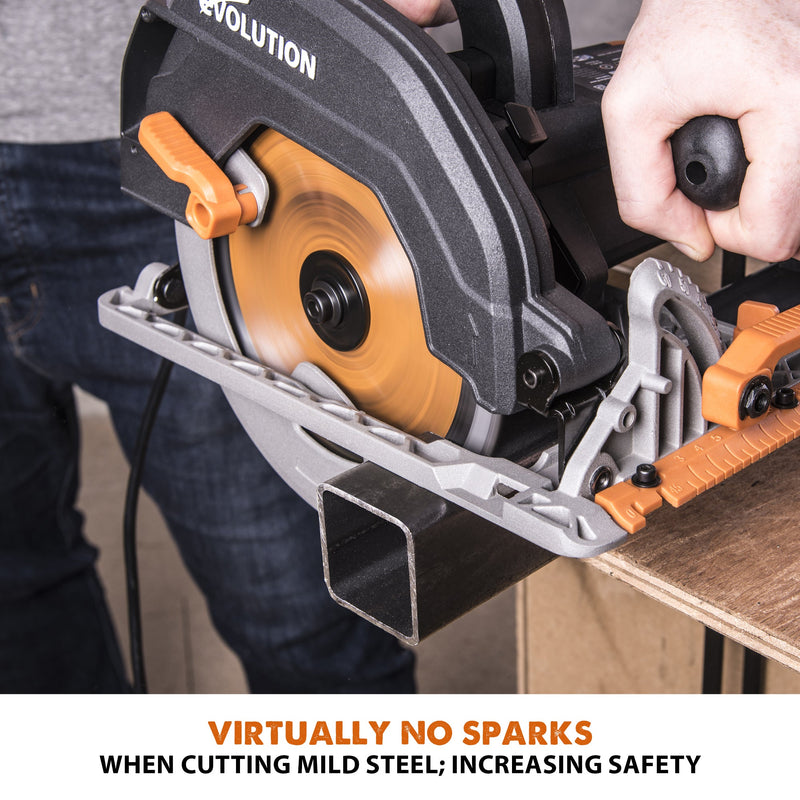

| Ferrous Metal | Mild Steel, angled, box section, square tube, metal stud dry walling, rebar, RSJs, plate (1/4 inch), unistrut. |
| Non-Ferrous Metal | Aluminum, armoured cables, cable tray, copper, floor edgings, roof flashings, stair nosings. |
| Plastic | Electrical conduit, plastic pipes, plexiglas, rubber & reinforced hoses, (WPC) Wood Plastic Composites. |
| Not Recommended | Hardened high carbon, coated and stainless steel. Note: Cutting galvanised steel may reduce blade life. |
Specifications
Machine
| Motor (120V 60Hz): | 15 A |
| Speed No Load: | 3700 rpm |
| Max. Bevel (Left): | 60° |
| Circular Saw Base: | Cast Aluminum |

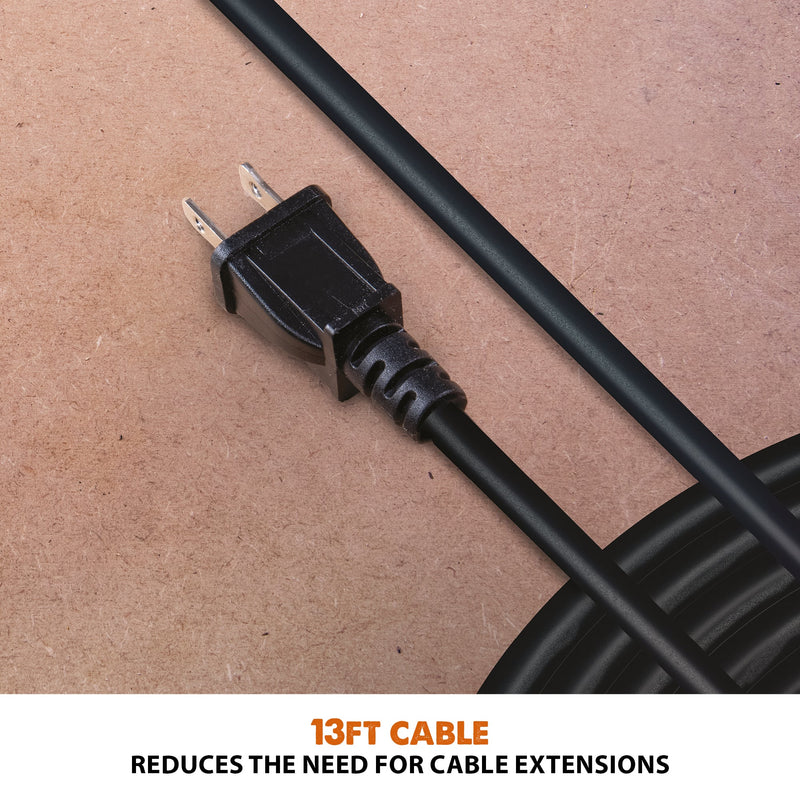

| Cable Length: | 13ft |
Blade
| Blade Dia.: | 7-1/4" |
| No. of Teeth: | 16 & 20 |
| Arbor: | 25/32 in. |
| Kerf: | 0.066 in. |
Dimensions & Weights
|
Product Dimensions: |
10 x 15 x 10.5 In. |
|
Packaging Dimensions: |
14.5 x 11 x 9 In. |
|

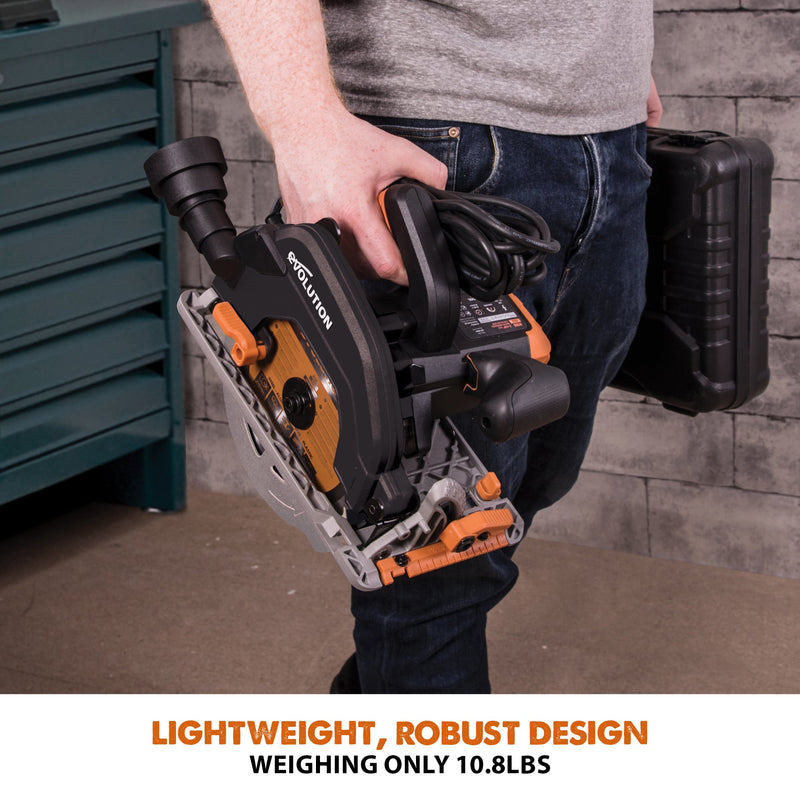

Product Weight: |
10.8 lbs |
|
Packaged Weight: |
13.2 lbs |
Items Included
| 16T Multi-Material TCT Blade |

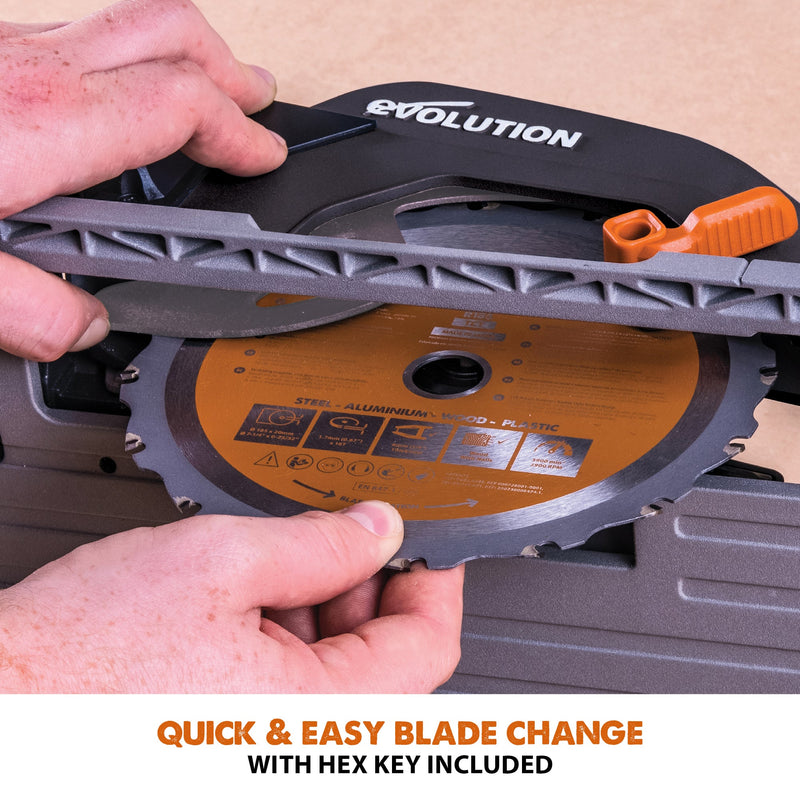

| Hex Key (Blade Change) |

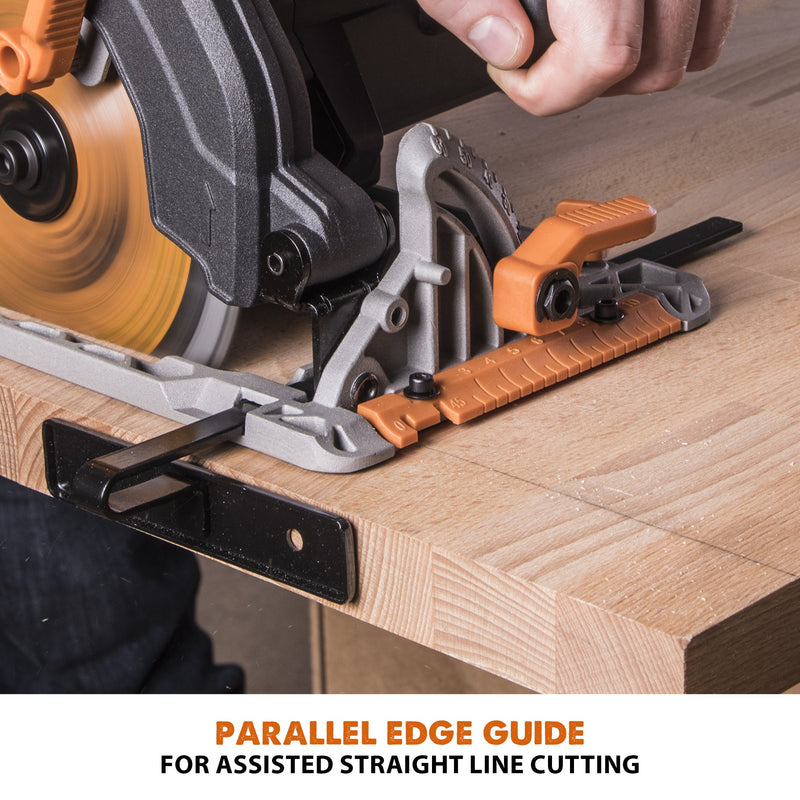

| Parallel Edge Guide |
| Dust Port Adapter |
| Dust Hose Connector |
| LED Light |
3-Year Guarantee
3-Year Guarantee
Please keep your proof of purchase / delivery.
- The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under guarantee will not extend the period of guarantee.
- The guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
- The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the guarantee period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
- Overseas users should contact the official importer for that country.
Evolution does not warrant the repair or replacement of a product when the following has occurred;
- Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
