Evolution R185CCSX+: Multi-Material Cutting Circular Saw 7-1/4 in. Blade
$229.00
×

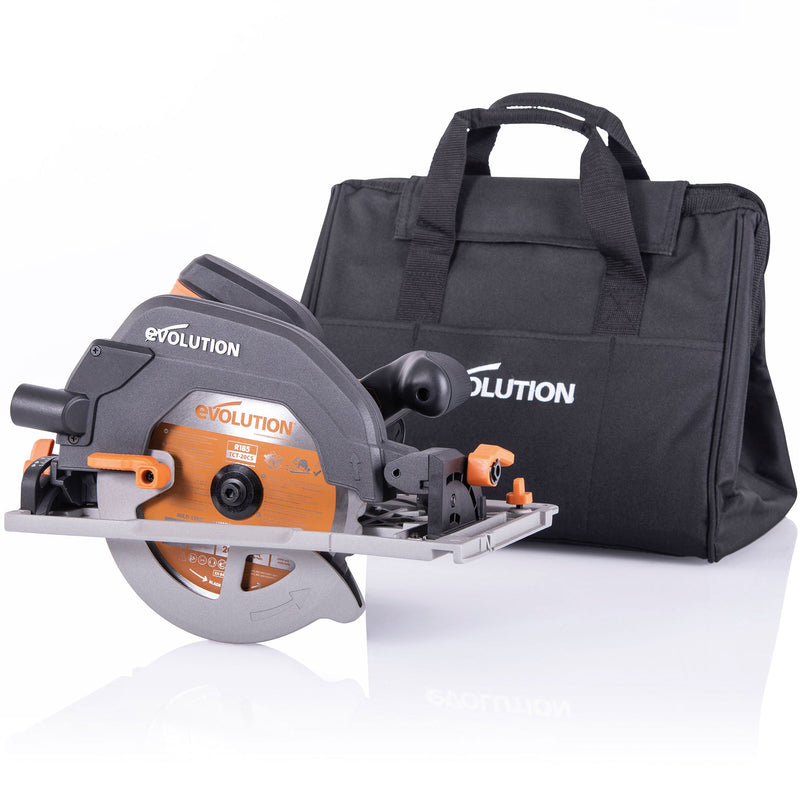

Evolution R185CCSX+: Multi-Material Cutting Circular Saw 7-1/4 in. Blade
SKU: R185CCSX+
EAN/UPC: 849713077707
- Multi-Material cutting technology.
- Adjustable 2-1/2 inch depth of cut.
- Dust extraction port & adaptor included.
- Sturdy and lightweight, perfect for portability. Read more
Specifications
| Blade Size | 7-1/4 In. |
| Warranty | 3 Years |
| Power Type | Corded |
| Max Cut Depth Bevel 0° | 2-1/2” (2-5/16” w/Track) |
3 Years Year Warranty Register Your Warranty
45 Day Returns
Earn 230 EVO Points + 5% off your first order
$229.00
* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes cannot be used in the same order.
Description

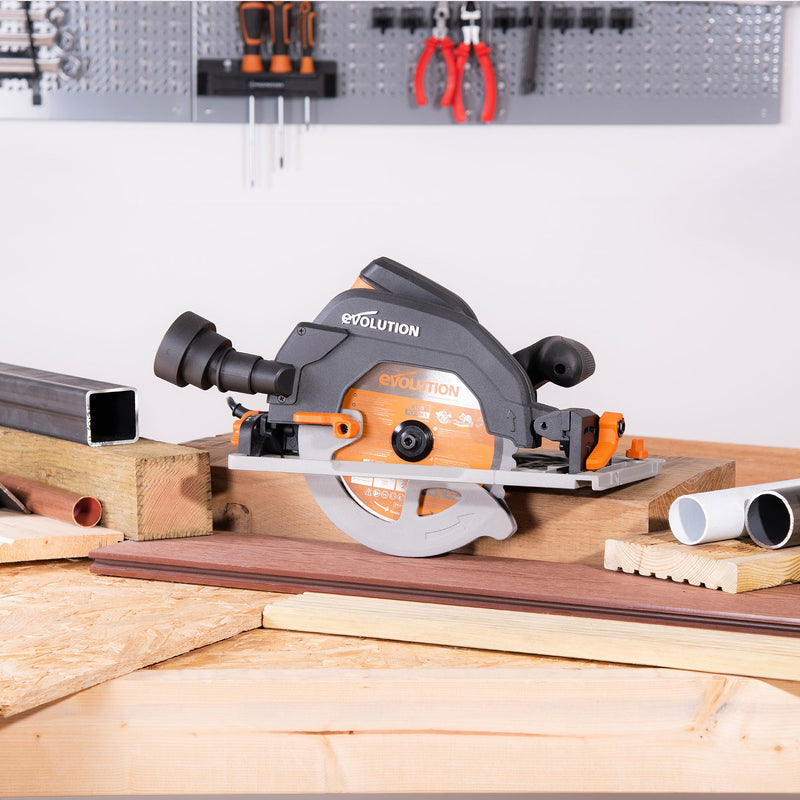

The ultimate multi-material cutting circular saw. Designed by the professionals for the professionals. The R185CCSX+ model gives you extra functionality, extra support and extra reach than any other Evolution circular saw in the family. Integrated LED light, channelled air-flow, 13 ft cable, storage bag and compatibility with Evolution's 4 ft 7 in track, are just some of the features included in this package. (Track sold separately)

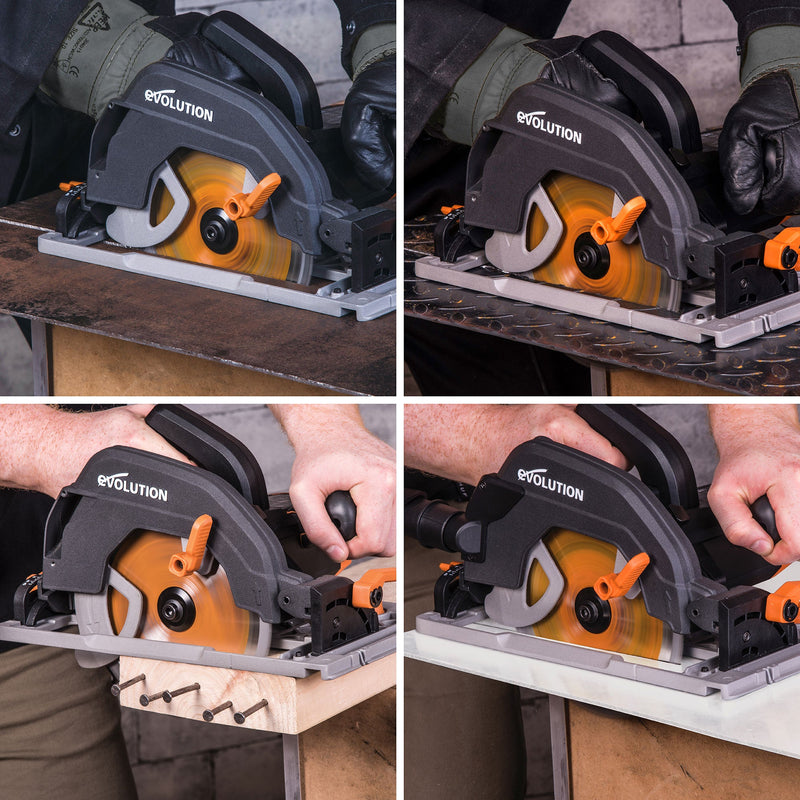

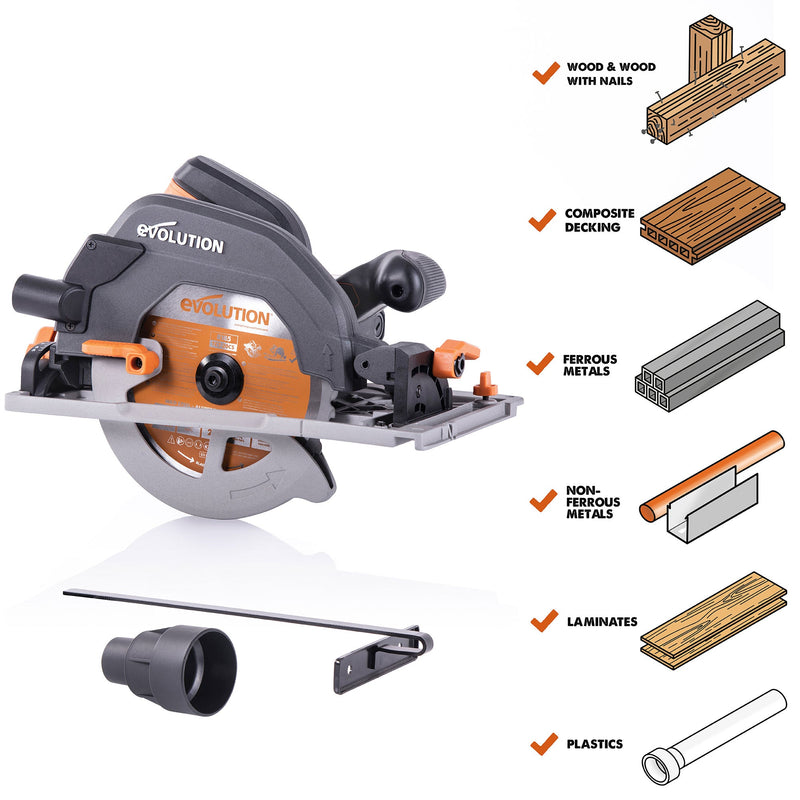

- Multi-Material cutting technology. One saw, one blade, cuts all.*

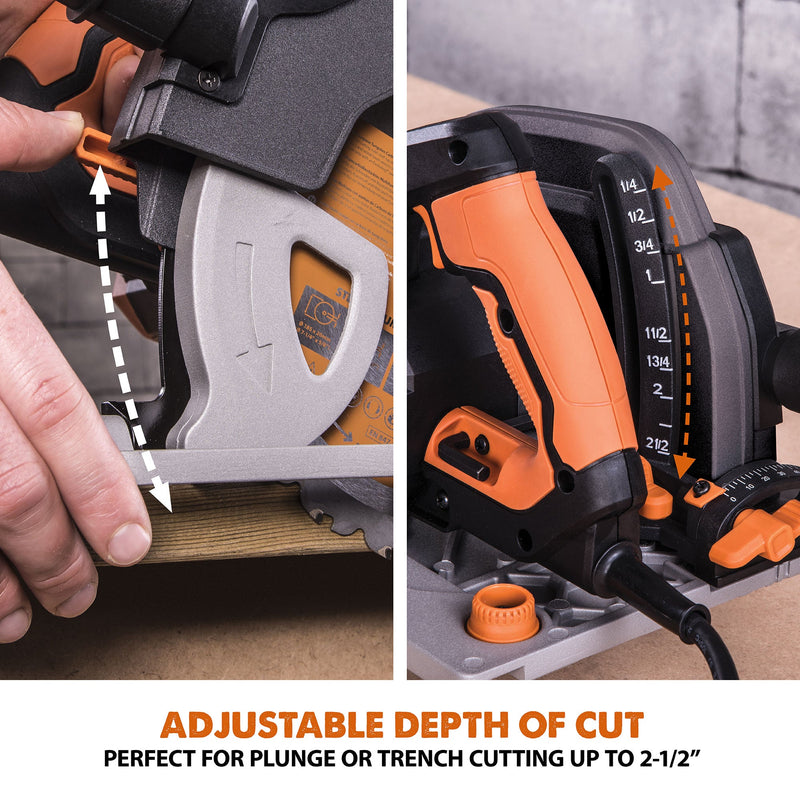

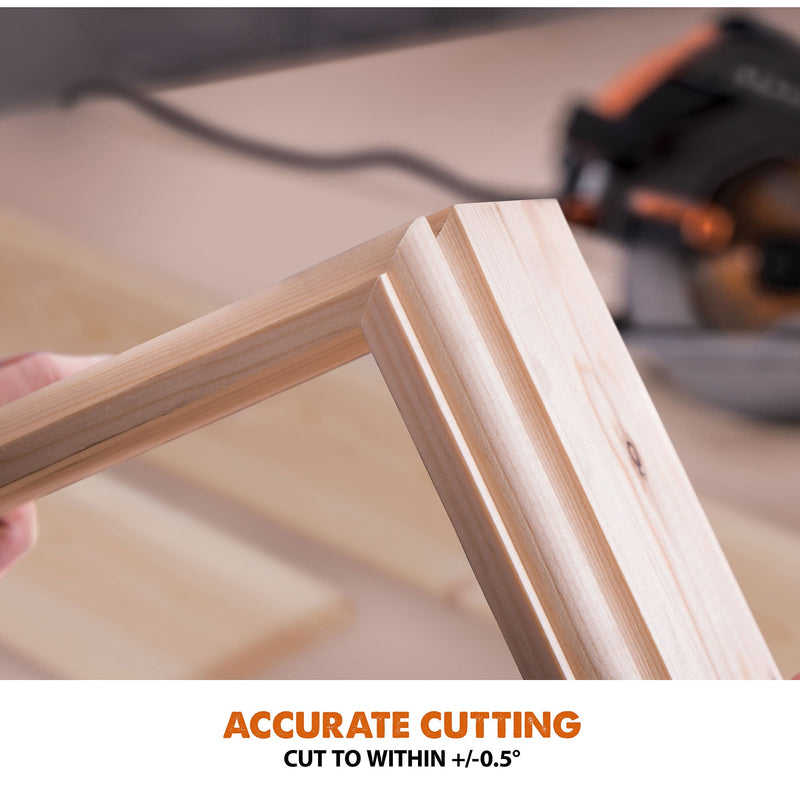

- Accurate cutting with adjustable 2-1/2 inch depth of cut - perfect for trench cutting.

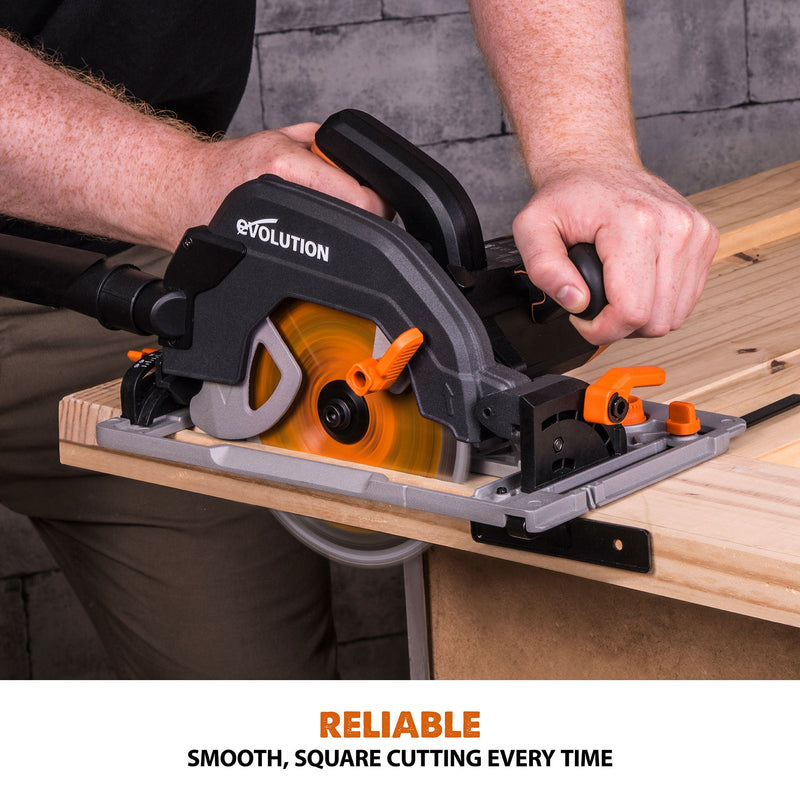

- Reliable smooth square cutting every time in a variety of materials.

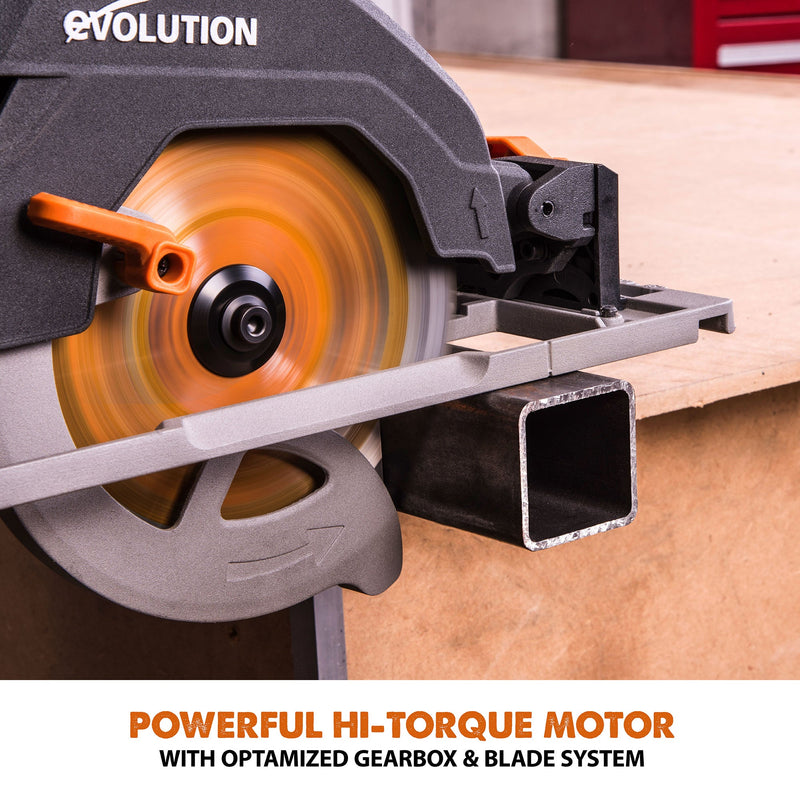

- Powerful 15A hi-torque motor with optimised gearbox & blade system.

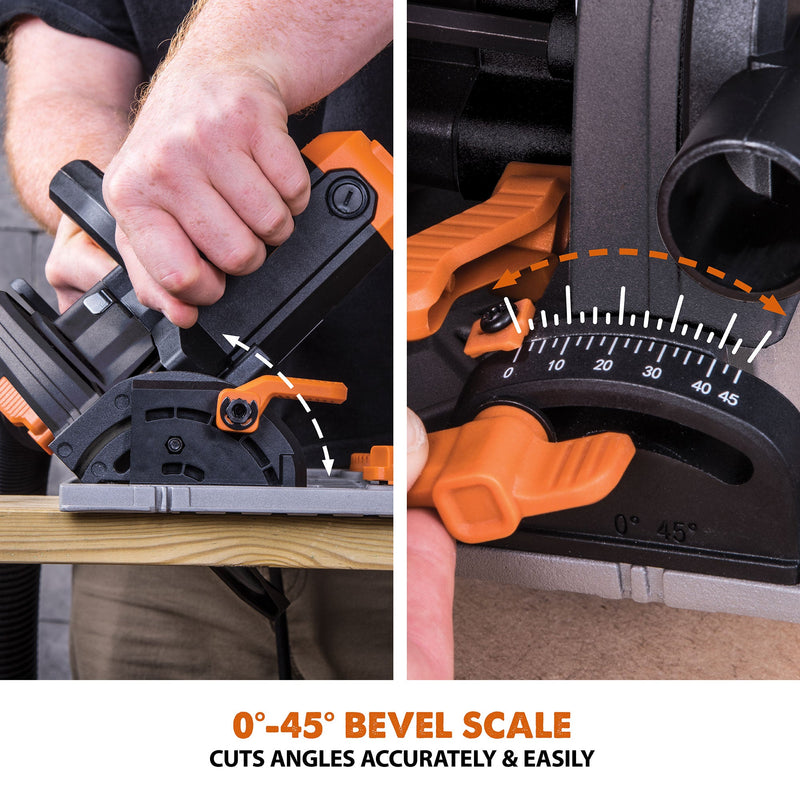

- 0° - 45° bevel tilt with virtual pivot keeps the blade on the same cutting line at any angle when fixed to a track.

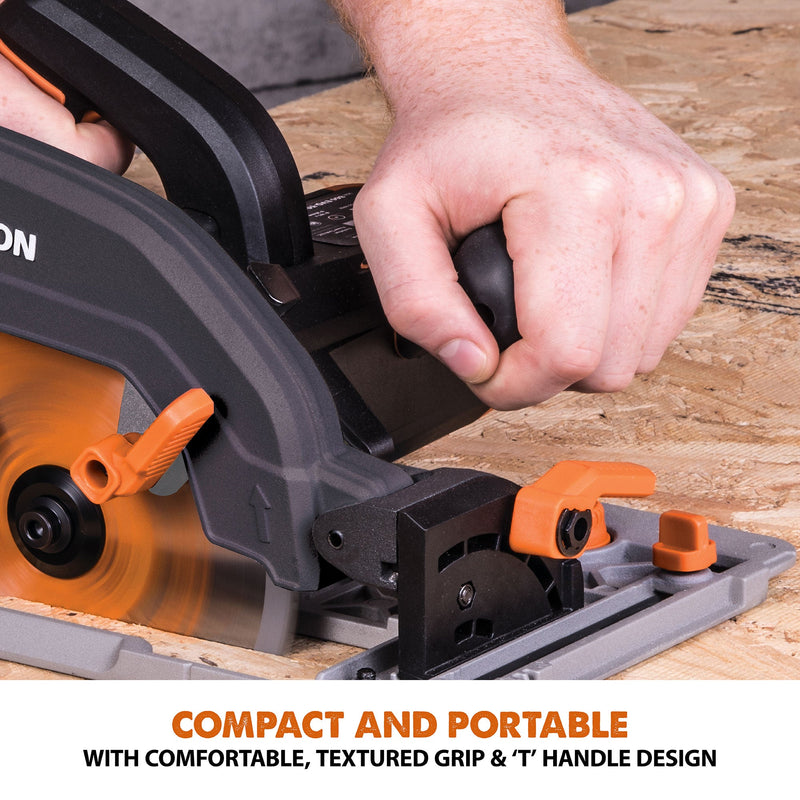

- Ergonomic, soft grip handles provide maximum control, versatility and precision.

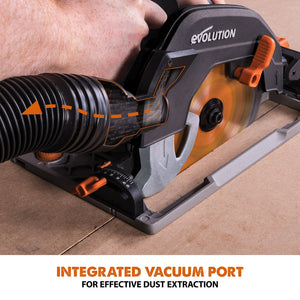

- Dust extraction port & adaptor included for vacuum compatibility.

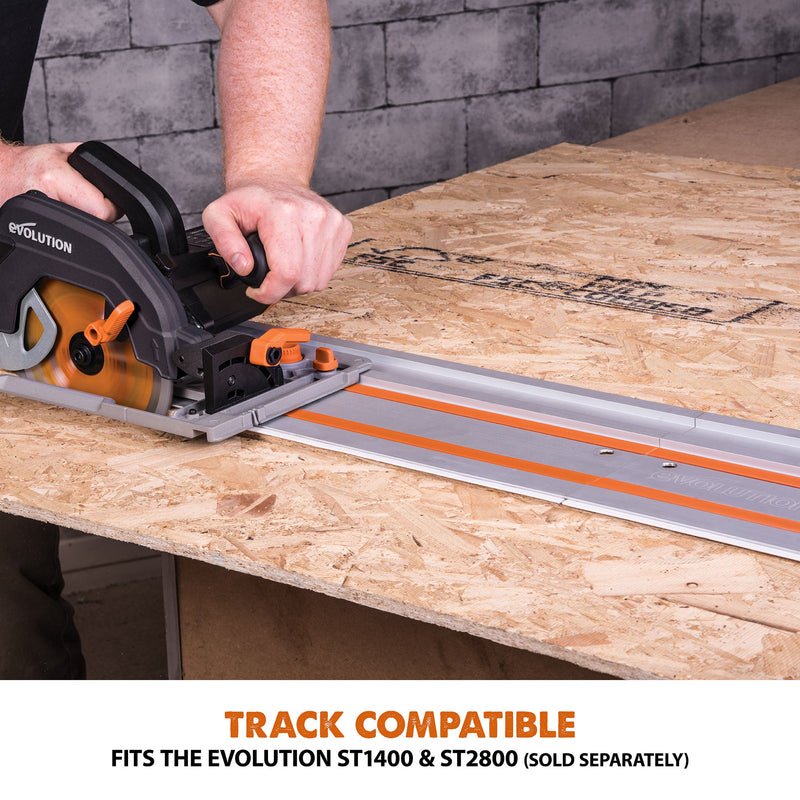

- Compatible With Evolution's 4 ft 7 in track (Sold Separately)
- Robust & sturdy construction with even weight distribution, weighing 11.2 lbs
- 3 Year limited warranty.
+PLUS Features

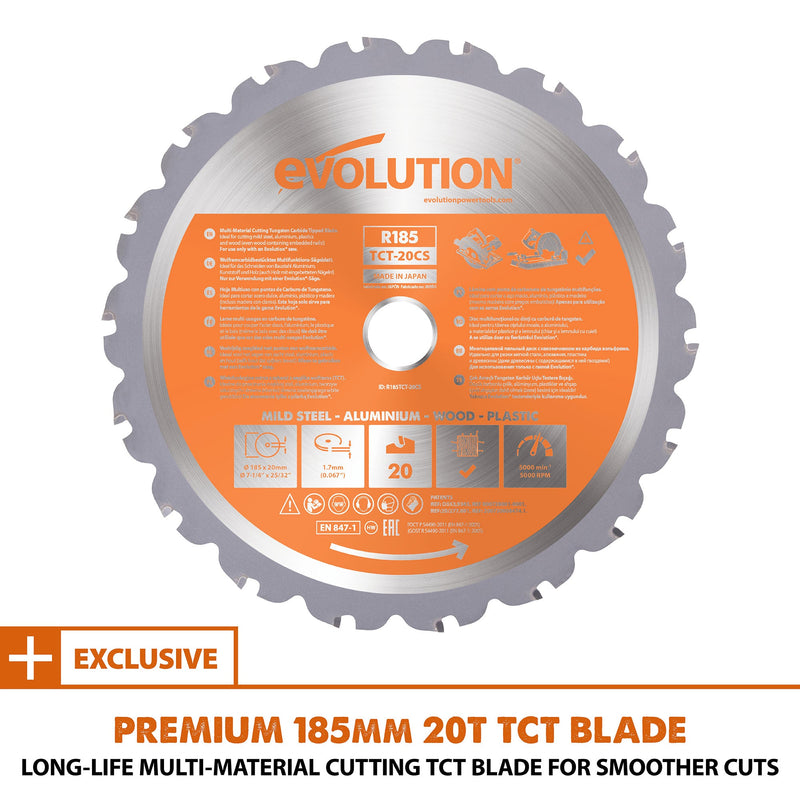

- Premium Japanese Tungsten-Carbide-Tipped (TCT) 7-1/4 inch blade included.

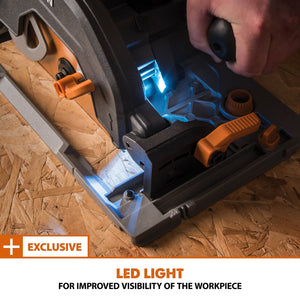

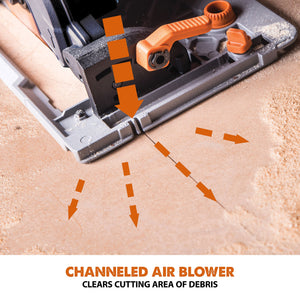

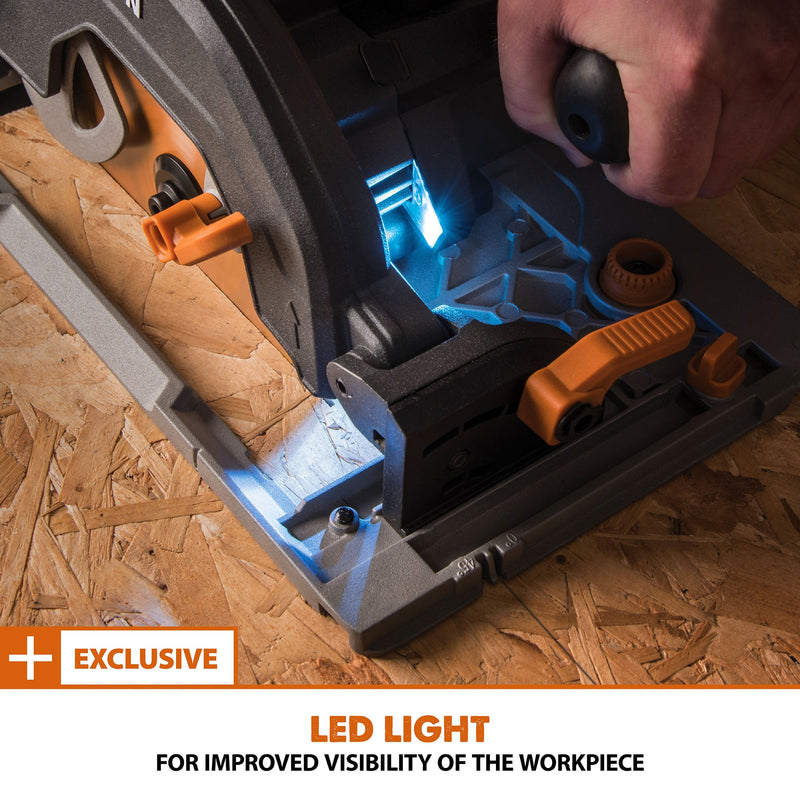

- Optimum visibility of your cutting line with LED Light & channelled air flow.

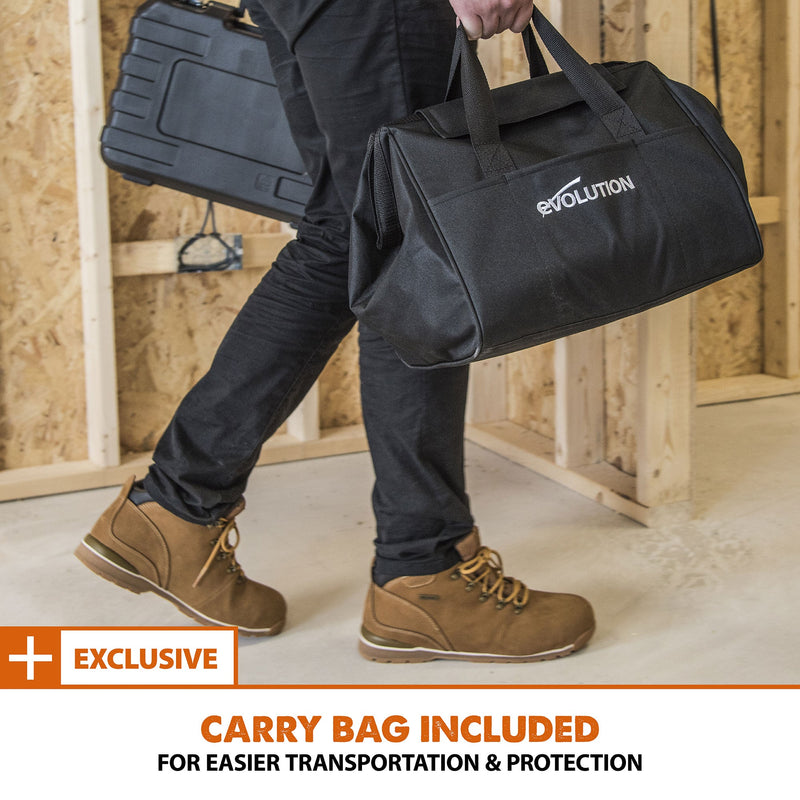

- Easy to transport and carry around the workplace with storage bag included.

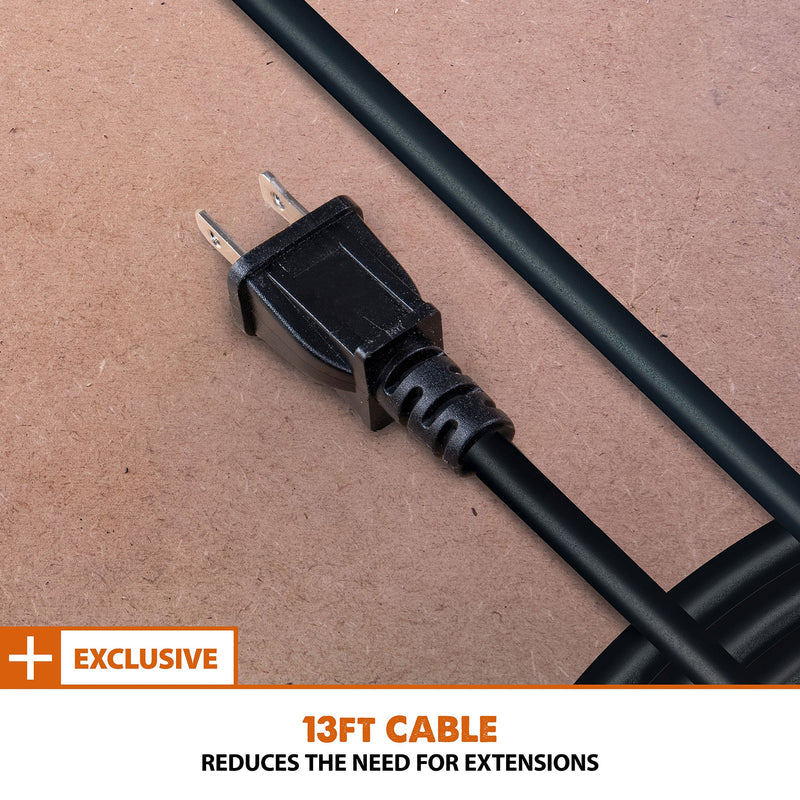

- 13ft cable gives you the maximum power and the extended reach you need.
Cutting Capacities

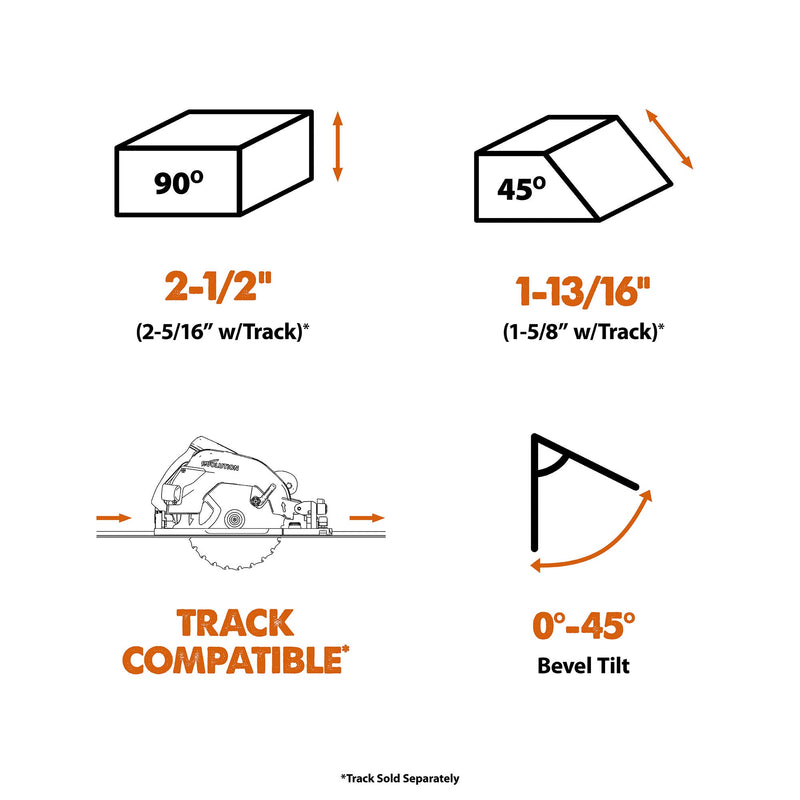

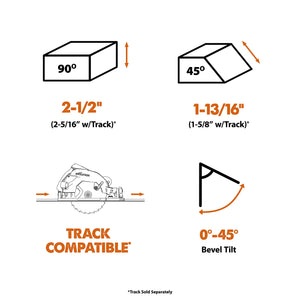

| Max. Depth of Cut (0°): | 2-1/2" (2-5/16" with track fitted) |
| Max. Depth of Cut (45°): | 1-13/16" (1-5/8" with track fitted) |
| Mild Steel Plate (Max. Thickness): |
1/4" |
| Mild Steel Box Section (Max. Wall Thickness): |
1/4" |
Cutting Applications
| Wood | Hardwood & tanalised decking, MDF laminates, mouldings, reclaimed wood with nails, scaffold boards & poles, stud-work. |

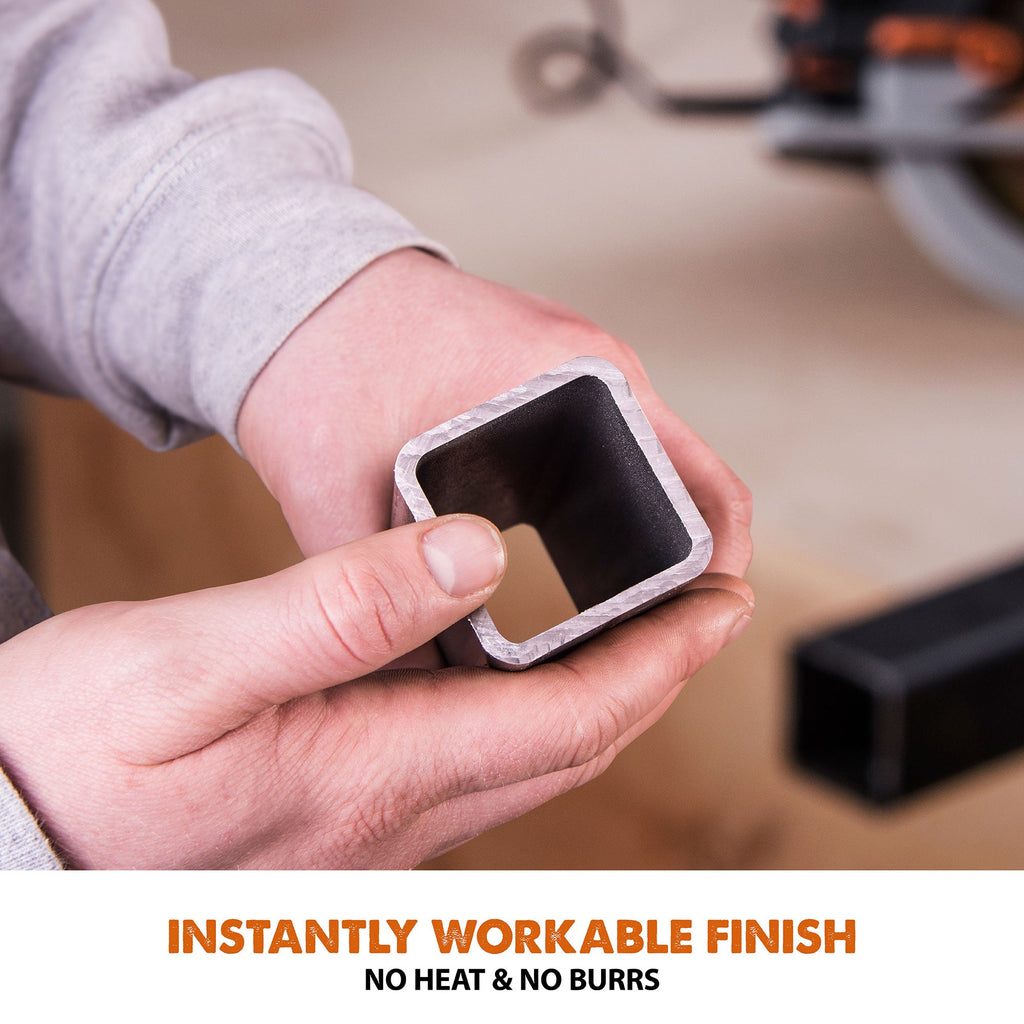

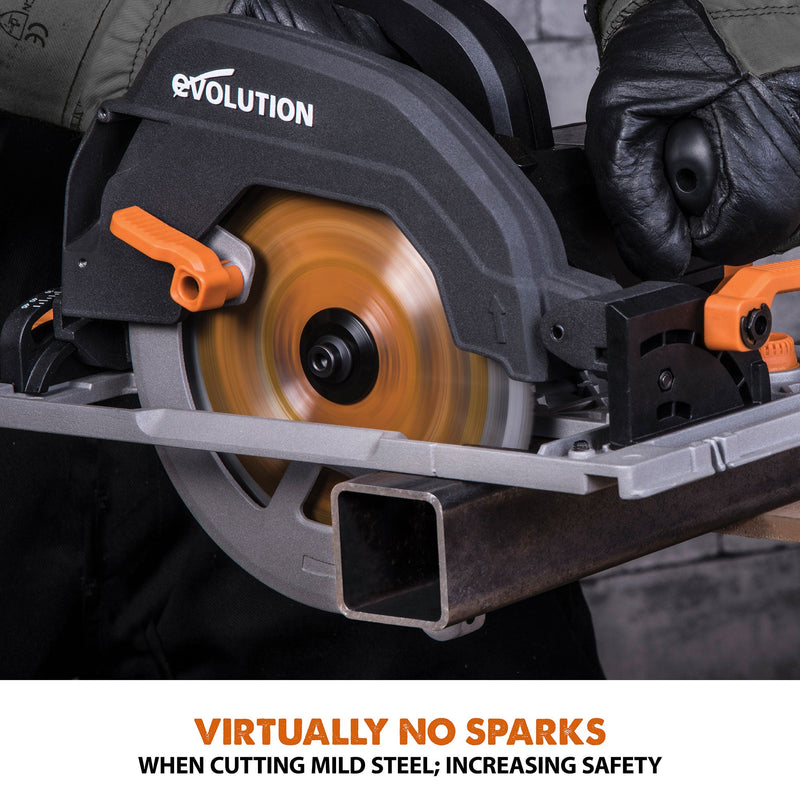

| Ferrous Metal | Mild Steel, angled, box section, square tube, metal stud dry walling, rebar, RSJs, plate (1/4 inch), unistrut. |
| Non-Ferrous Metal | Aluminum, armoured cables, cable tray, copper, floor edgings, roof flashings, stair nosings. |
| Plastic | Electrical conduit, plastic pipes, plexiglas, rubber & reinforced hoses, (WPC) Wood Plastic Composites. |
| Not Recommended | Hardened high carbon, coated and stainless steel. Note: Cutting galvanised steel may reduce blade life. |
Specifications
Machine
| Motor (120V 60Hz): | 15 A |
| Speed No Load: | 3700 rpm |
| Max. Bevel (Left): | 45° |
| Circular Saw Base: | Cast Aluminum |
| Cable Length: | 13ft |
Blade
| Blade Dia.: | 7-1/4" |
| No. of Teeth: | 20 |
| Arbor: | 25/32" |
| Kerf: | 0.066 in |
Dimensions & Weights
| Packaging Dimensions: | 15 x 11-3/4 x 11 In. |
| Product Weight: | 11.2 lbs |
| Packaged Weight: | 15.8 lbs |
Items Included
| Multi-Material TCT Blade |

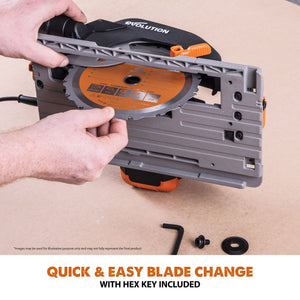

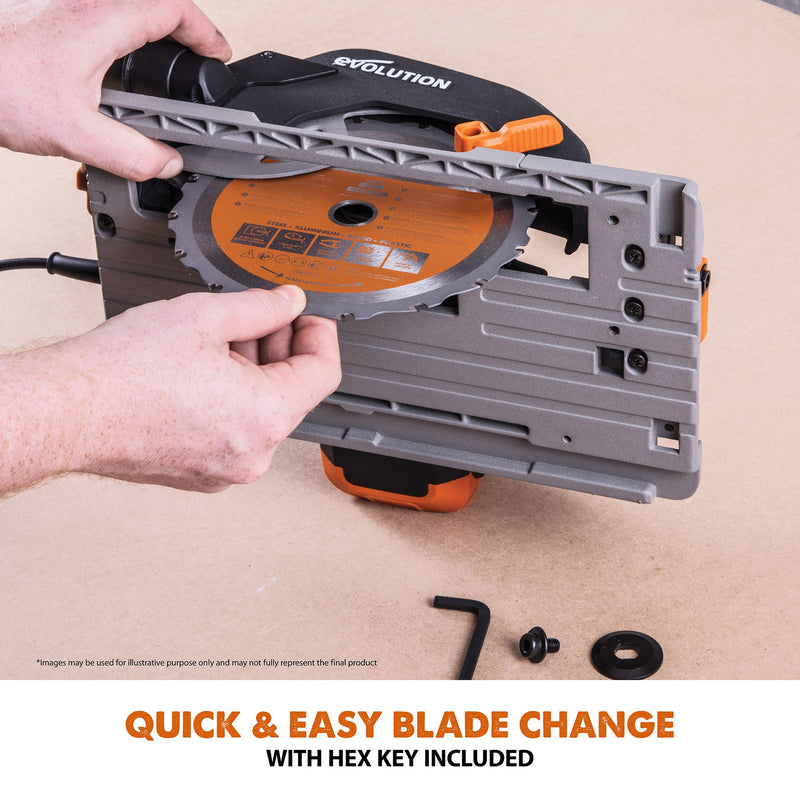

| Hex Key (Blade Change) |

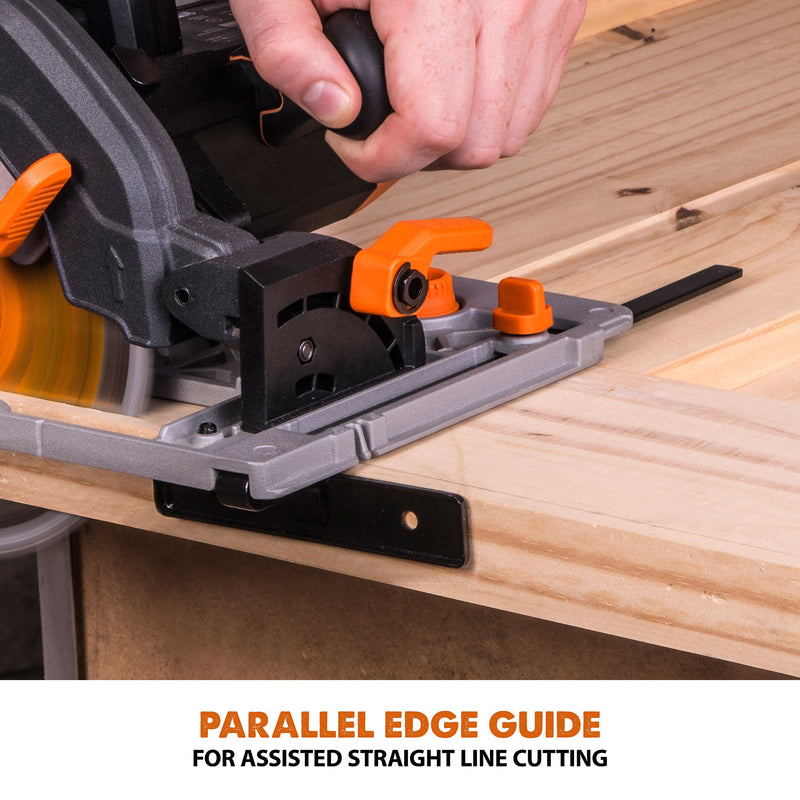

| Parallel Edge Guide |
| Dust Port Adapter |
| Dust Hose Connector |
| Carry Case |
| LED Light |
3-Year Guarantee
3-Year Guarantee
Please keep your proof of purchase / delivery.
- The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under guarantee will not extend the period of guarantee.
- The guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
- The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the guarantee period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
- Overseas users should contact the official importer for that country.
Evolution does not warrant the repair or replacement of a product when the following has occurred;
- Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
