Evolution RAGE4: Multi-Material Cutting Chop Saw With 7-1/4 in. Blade
SKU: RAGE4
EAN/UPC: 849713024619
- Multi-Material cutting technology.
- Cuts mild steel with ready-to-weld, clean & square cold-cuts.
- Accurate & durable vise portability with 0˚ - 45˚ miter detents.
- Compact, portable, high-quality construction. Read more
Specifications
| Blade Size | 7-1/4 In. |
| Warranty | 3 Years |
| Power Type | Corded |
| Max Cut Capacity |
|
| Max Mitre |
|
3 Years Year Warranty Register Your Warranty
45 Day Returns
Earn 270 EVO Points + 5% off your first order
$269.00
* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes cannot be used in the same order.
Frequently Bought Together
Description
The Evolution RAGE4 is a 7-1/4" Chop Saw (185mm) designed exclusively for Electricians and Plumbers. Producing fast, ultra-clean cuts through armored cable, Unistrut and cable tray, as well as conduit, chrome, copper & plastic pipe, plus plastic hose. Easier to use than a hacksaw, far more portable than a 14" (355mm) chop saw.
- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate cutting - cuts mild steel with ready-to-weld, clean & square cold-cuts.
- Unlike abrasive cutting, the RAGE4 TCT blade cuts steel with no harmful dust, no burrs & virtually no sparks, leaving an instantly workable finish.
- Reliable smooth square cutting every time in a variety of materials.
- Powerful 1250W hi-torque motor with optimized gearbox & blade system.
- Accurate & durable vice portability with 0˚ - 45˚ miter detents.
- A robust, durable base - ideal when handling heavy-duty, metallic applications.
- Lightweight, easy to transport, taking up little space, weighing only 20.1 lbs (9.1kg).
- Versatile, repositional fence for cutting of round, square & rectangle materials.
- Chip guard & dust extraction port for added safety & cleaner working environment.
- Compatible with the Evolution 7-1/4" (185mm) Diamond blade for cutting stone, concrete, and brick. (Sold separately).
- Premium Japanese Tungsten-Carbide-Tipped (TCT) 7-1/4" blade included.
- 3 Year limited warranty.

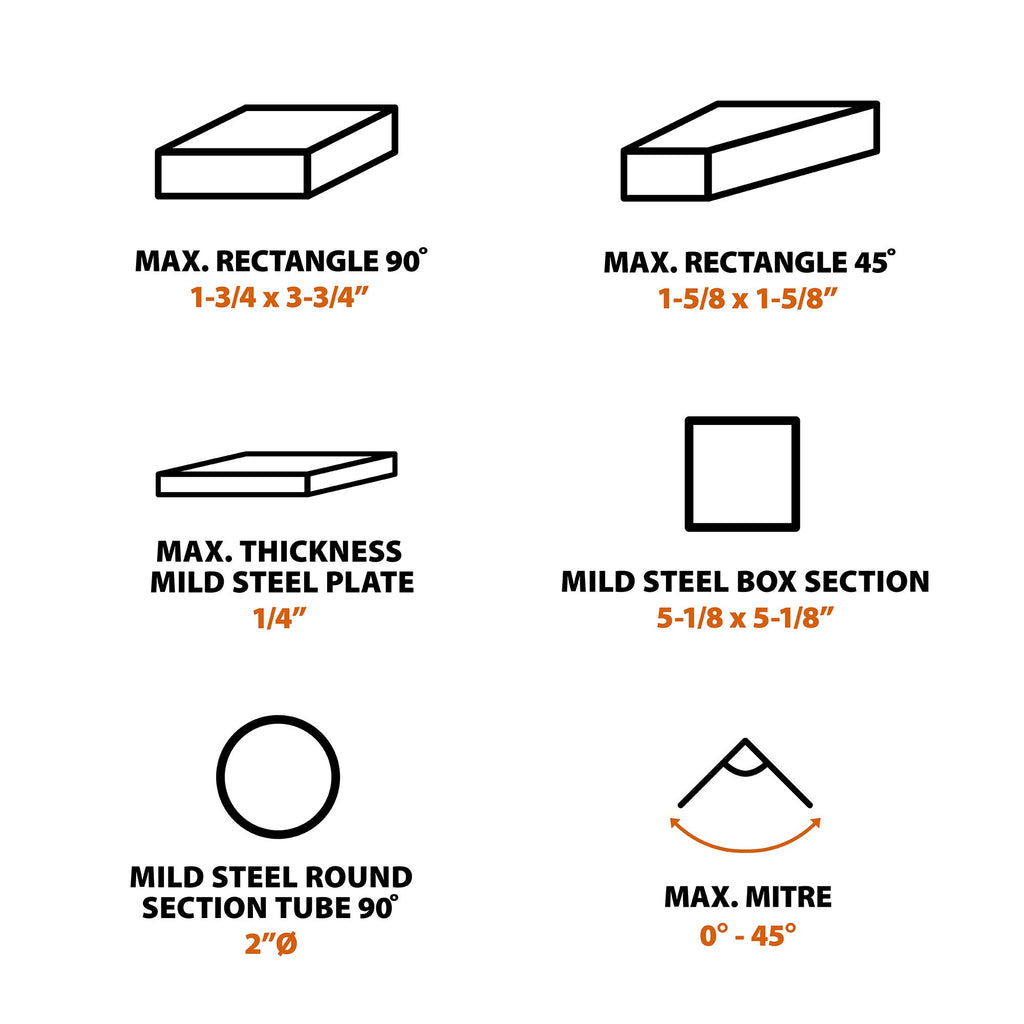

Cutting Capacity
| Max. Cross Cut (0° x 0°): | 1-3/4 in. x 3-3/4 in. |
| Max. Miter Cut (45° x 0°): | 1-5/8 in. x 1-5/8 in. |
| Max Round Tube (0° x 0°): | 2 in. |
| Mild Steel Plate (Max. Thickness): | 1/4 in. |
Cutting Applications
| Wood | Hardwood & tanalised decking, MDF laminates, mouldings, reclaimed wood with nails, scaffold boards & poles, stud-work. |
| Ferrous Metal | Mild Steel, angled, box section, square tube, metal stud dry walling, rebar, RSJs, plate (1/4 inch), unistrut. |
| Non-Ferrous Metal | Aluminum, armoured cables, cable tray, copper, floor edgings, roof flashings, stair nosings. |
| Plastic | Electrical conduit, plastic pipes, plexiglas, rubber & reinforced hoses, (WPC) Wood Plastic Composites. |
| Not Recommended | Hardened high carbon, coated and stainless steel. Note: Cutting galvanised steel may reduce blade life. |
Specifications
Machine
| Motor (120V 60Hz): | 10A |
| Speed No Load: | 4200rpm |
| Max. Miter: | 45° |
Blade
| Blade Dia.: | 7-1/4 in. |
|
No. of Teeth: |
20 |
|
Bore: |
20 mm |
| Kerf: | 0.066 in. |
Dimensions
| Product Dimensions: |
10 x 15 x 10.5 In. |
|
Packaging Dimensions: |
20-5/64 x 12-19/32 x 12-13/64 in. |
|
Product Weight: |
20.1 lbs |
|
Packaged Weight: |
22.4 lbs |
Items Included
|
Instruction Manual |
|
20T Multi-Material TCT Blade |
|
15/65 in. Hex Key (Vice Adjustment) |
|
1/8 in. Hex Key (Upper Blade Guard) |
| 13/64 in. Hex Key (Blade Change) |
| Rubber Vice Jaw Protector |
| Dust Extraction Port |
| Spare Motor Brushes |
Documents
3-Year Guarantee
3-Year Guarantee
Please keep your proof of purchase / delivery.
- The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under guarantee will not extend the period of guarantee.
- The guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
- The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the guarantee period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
- Overseas users should contact the official importer for that country.
Evolution does not warrant the repair or replacement of a product when the following has occurred;
- Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
