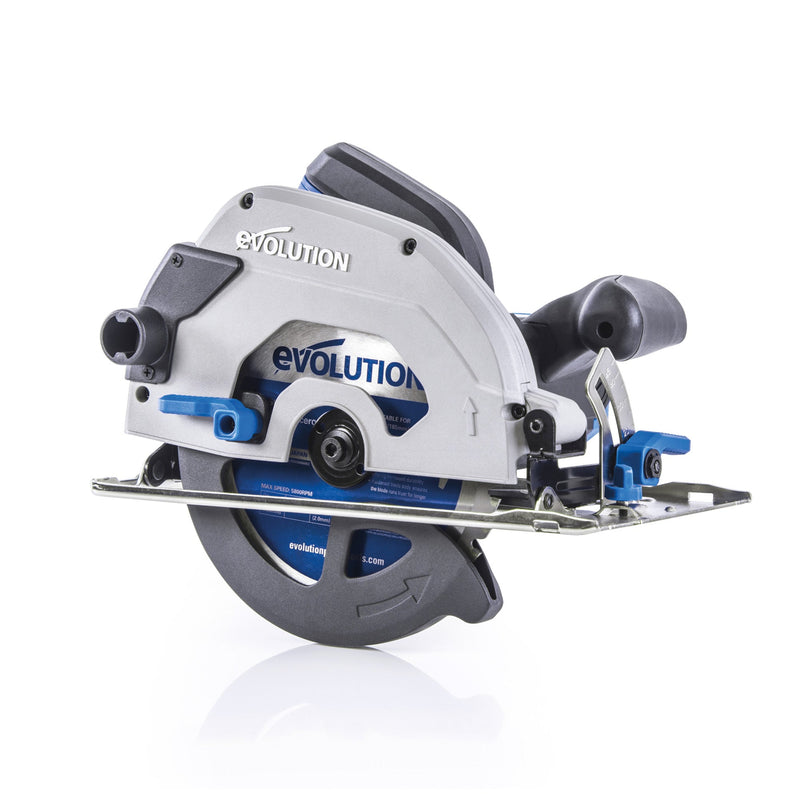

Evolution S185CCSL: Metal Cutting Circular Saw 7-1/4 in. Blade
SKU: S185CCSL
EAN/UPC: 849713084835

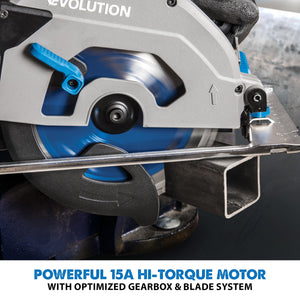

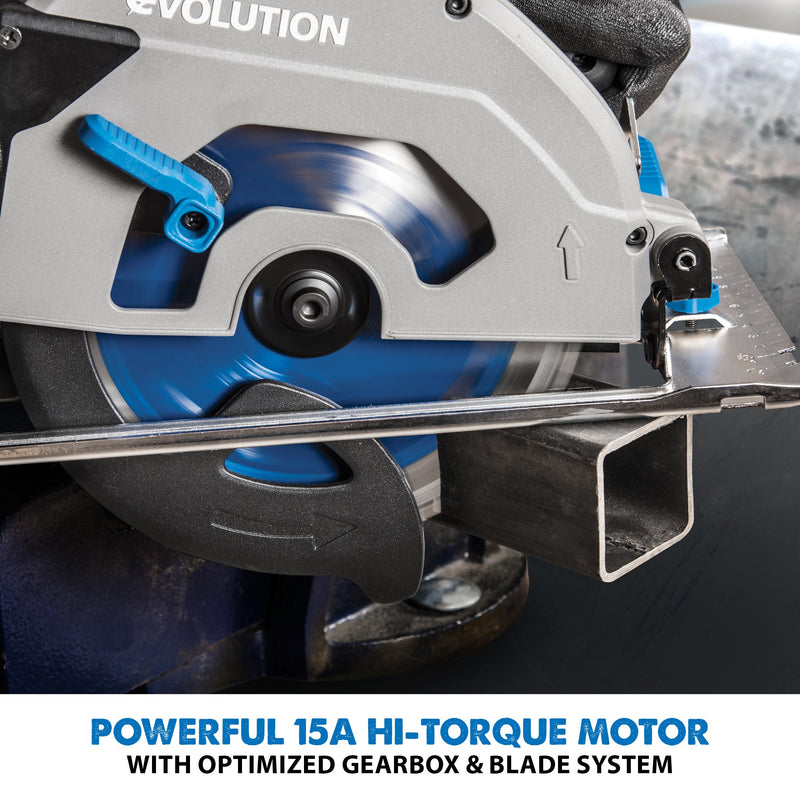

- Powerful 15A Motor: Cuts steel, aluminum, and wood with no heat, burr, or sparks.
- Adjustable Base Plate: Up to 2-1/2" cutting capacity and 45° bevel angle.
- Lightweight: Only 11.4 lbs for easier handling.
- Clean Cuts: Includes optional premium blades for versatile use. Read more
Specifications
| Blade Size | 7-1/4 In. |
| Warranty | 3 Years |
| Power Type | Corded |
| Max Cut Depth Bevel 0° | 2-1/2" |
3 Years Year Warranty Register Your Warranty
45 Day Returns
Earn 240 EVO Points + 5% off your first order
$239.00
* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes cannot be used in the same order.
Frequently Bought Together
Description

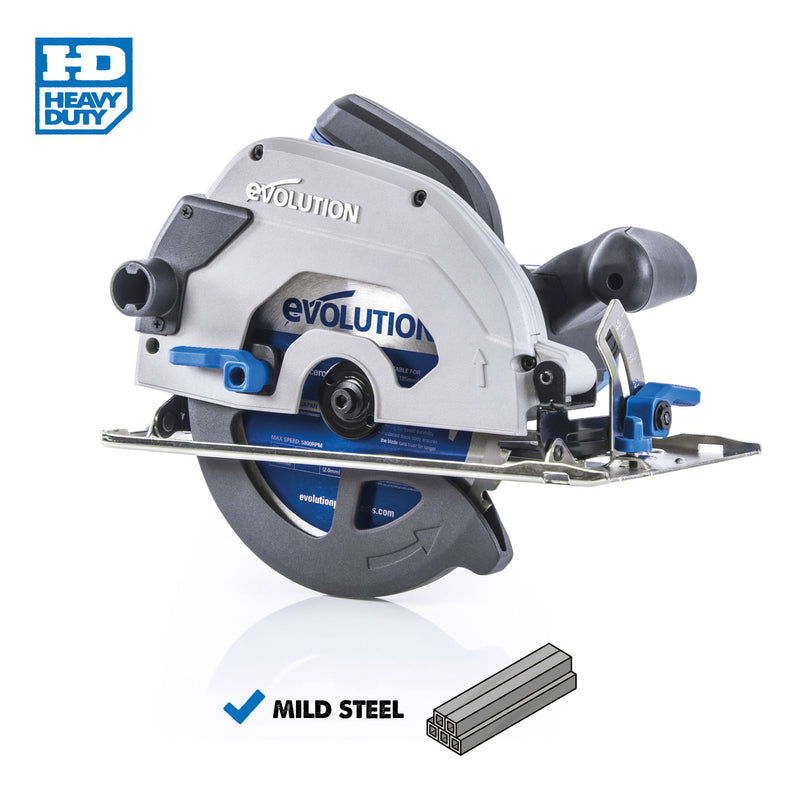

Looking for a heavy-duty circular saw with a powerful 15 amp motor, 11.4 lb light-weight design that cuts steel like a hot knife through butter? The S185CCSL Metal Cutting Circular Saw is built for heavy-duty, day in, day out steel fabrication.

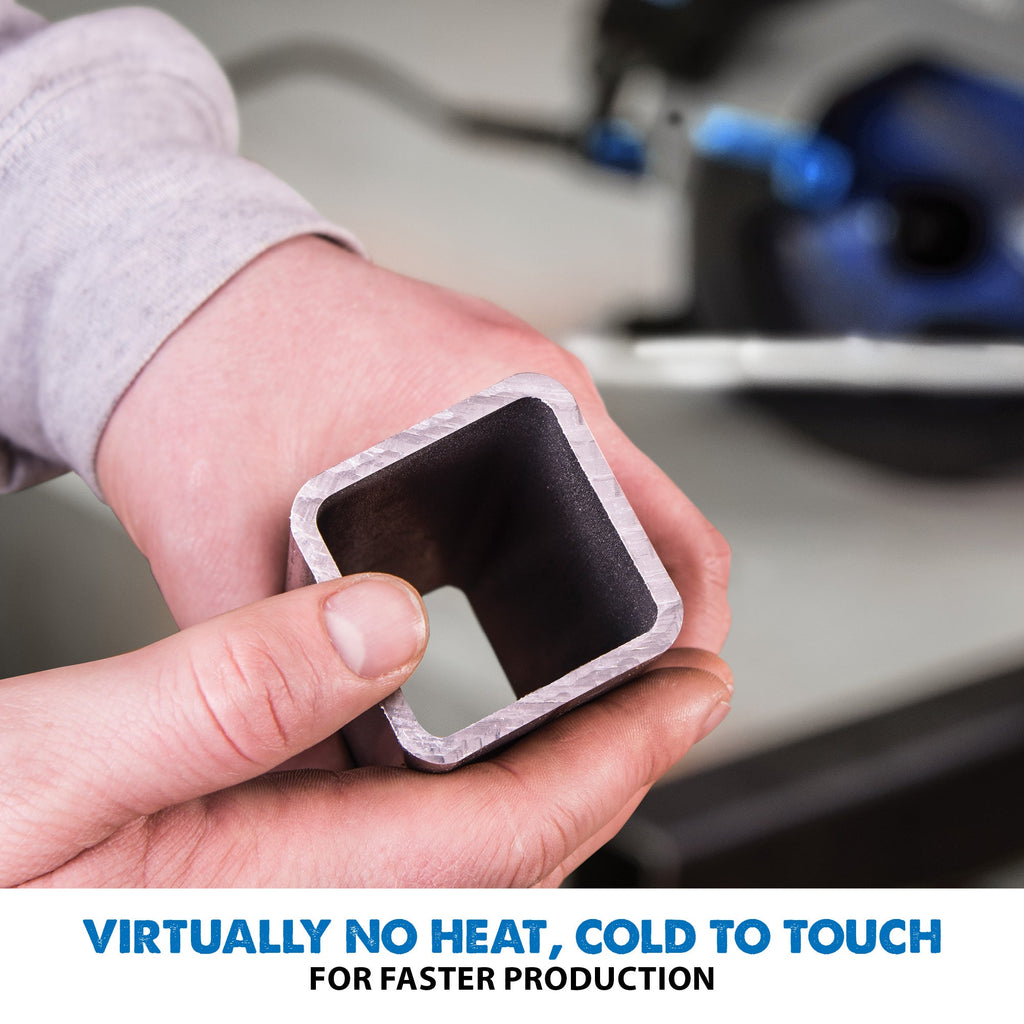

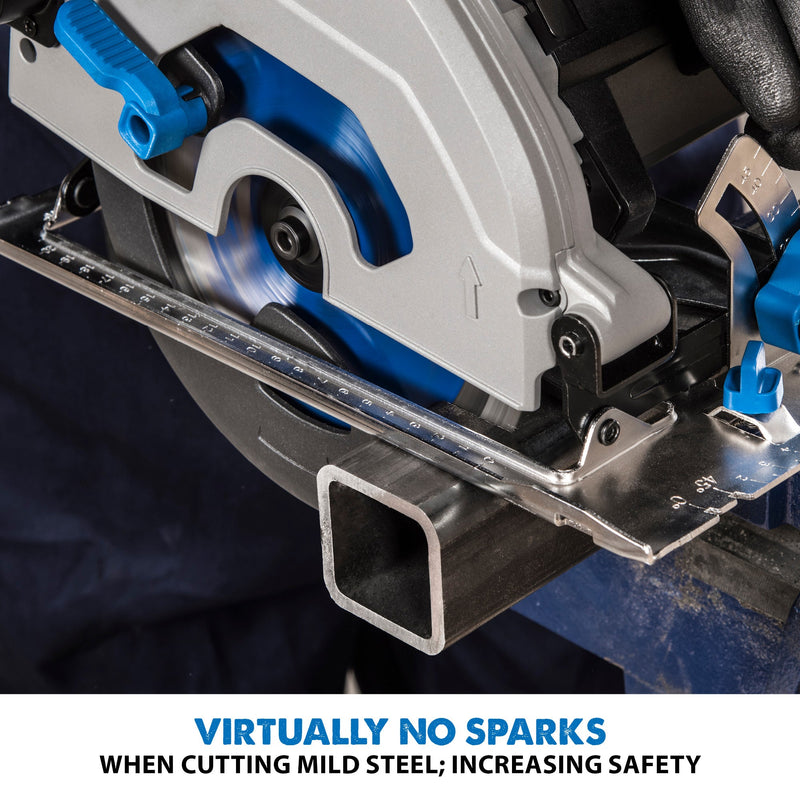

- Equipped with a 7-1/4 inch, 40 tooth mild steel capable blade. Providing an instantly workable finish and produces virtually no heat, no burr, and no sparks.

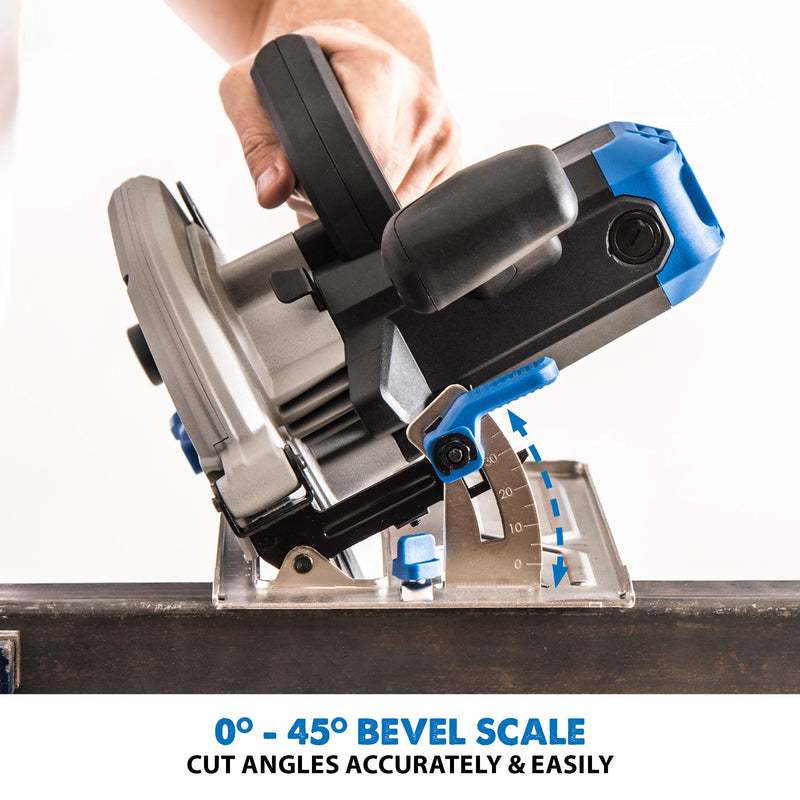

- The paddle levers allow you to easily adjust the base plate to perform up to 45° accurate bevel cutting.

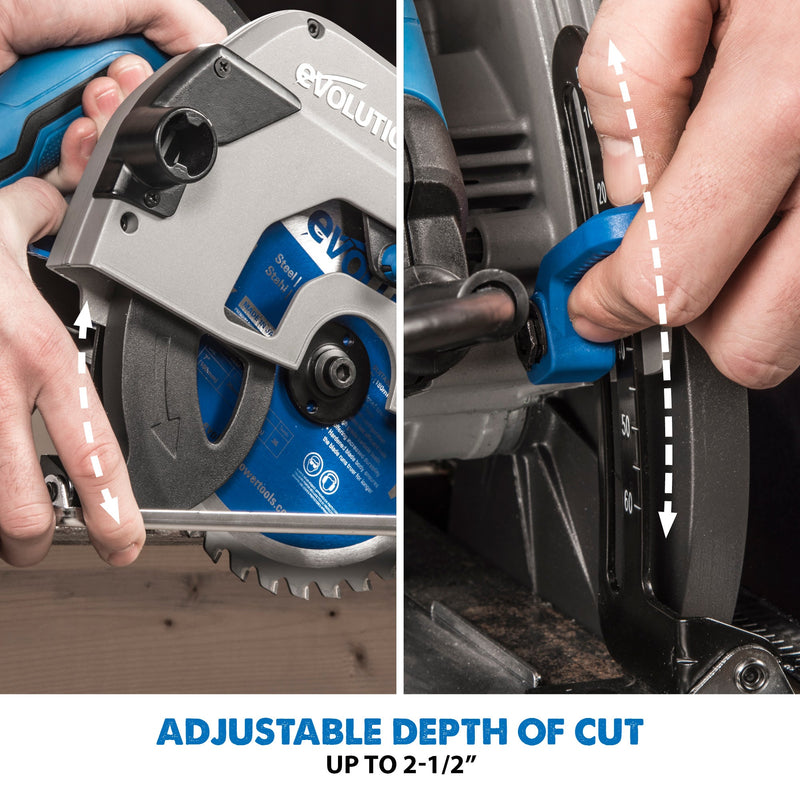

- Adjusting the rear paddle lever enables you to set the base plate in a higher position giving you a cutting capacity up to 2-1/2 inches.

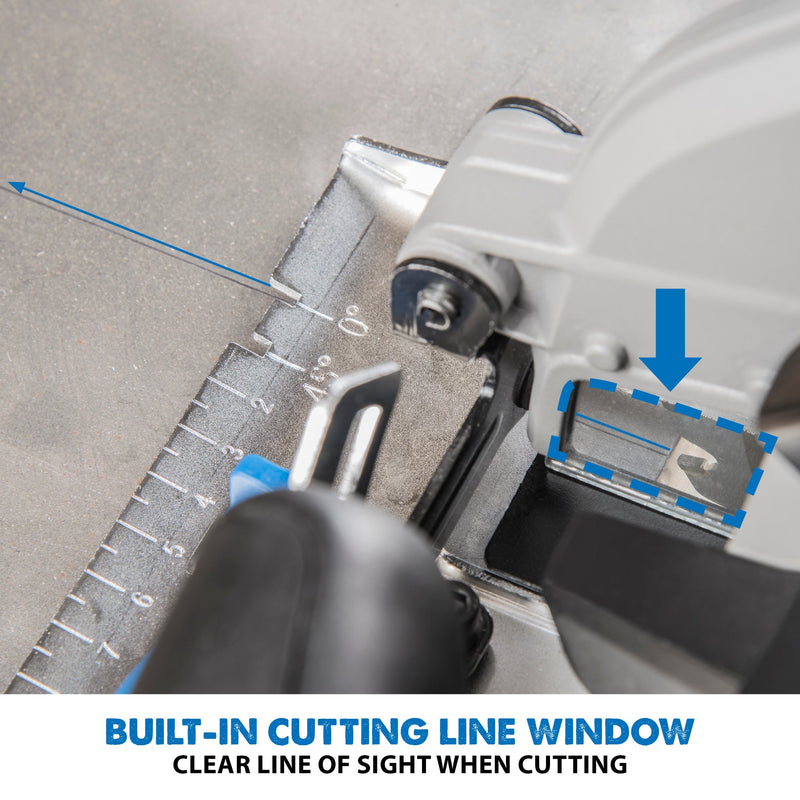

- Fitted with a clear glass window you can see when standing in the normal cutting position where the blade meets the material being cut, ensuring your blade is exactly aligned with the cutting line.
- Channeled air-flow directs air to the cutting line, clearing it from any debris.
- A parallel edge guide is provided for even greater straight cutting assistance.

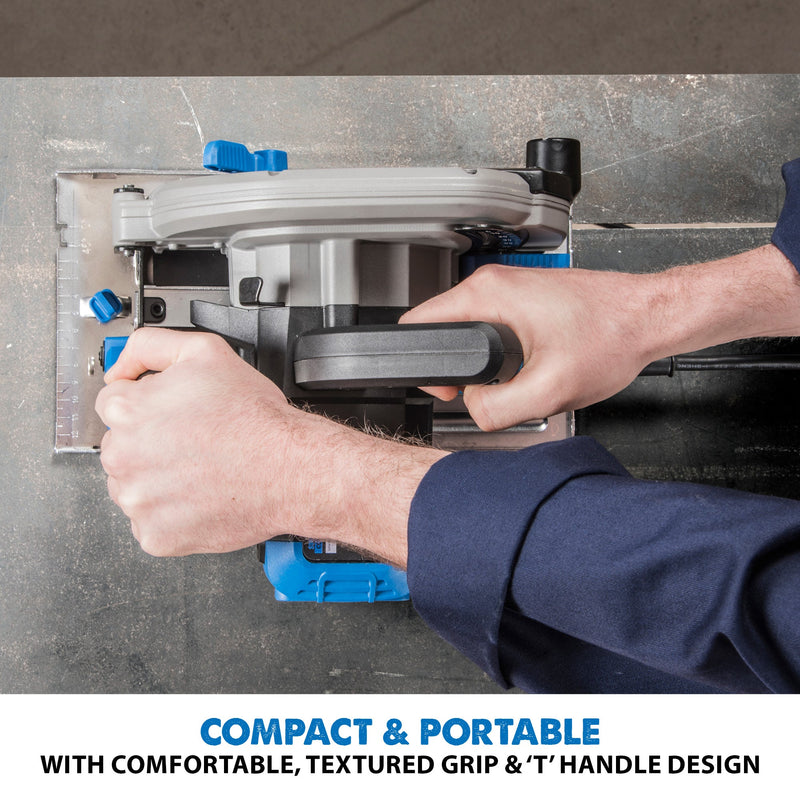

- One of the lightest circular saws on the market, weighing only 11.4 lbs, transforms heavy-duty cutting into faster, easier and safer productivity.

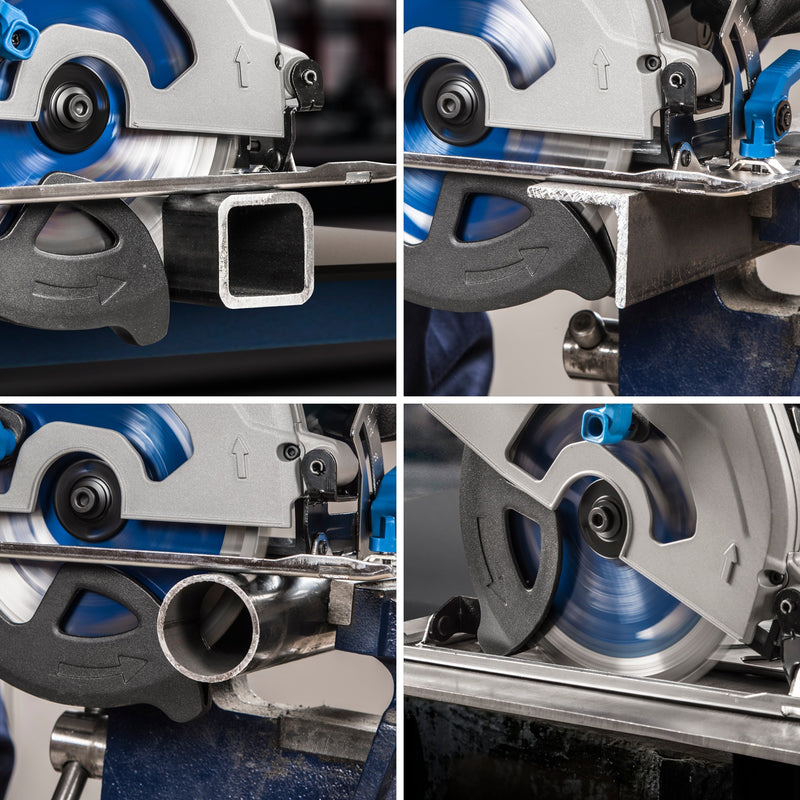

- Cut mild steel, stainless steel, aluminum and wood with the optional premium blades available.

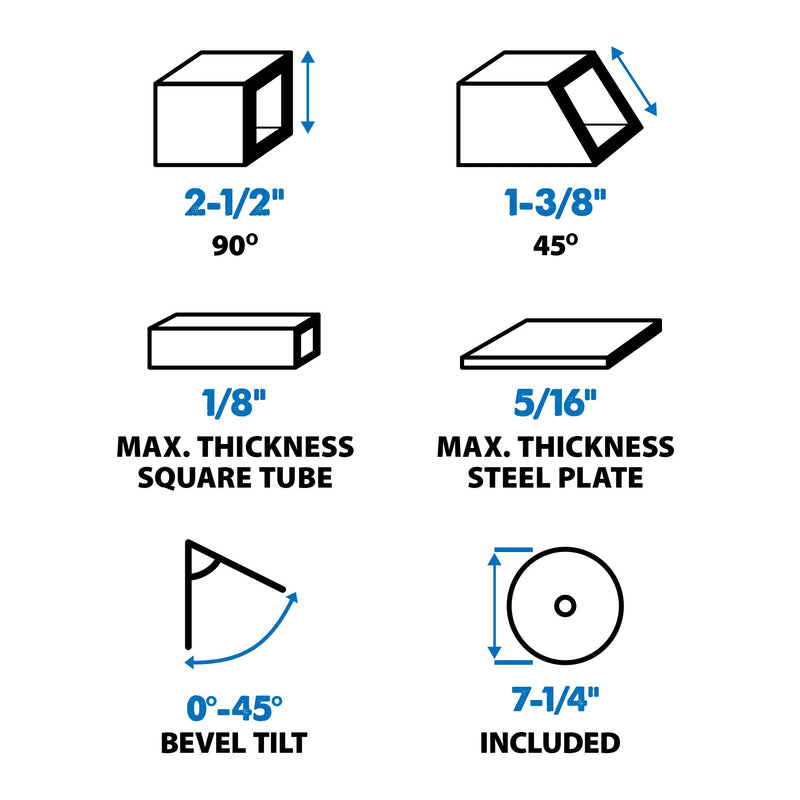

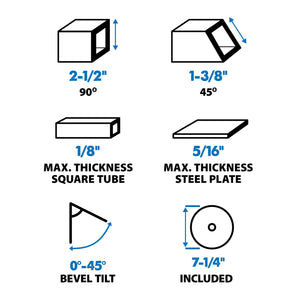

Cutting Capacities
| Max. Depth of Cut (0°): | 2-1/2 In. |
| Max. Depth of Cut (45°): | 1-3/8 In. |
| Mild Steel Plate (Max. Thickness): |
5/16 In. |
| Mild Steel Square Tube (Max. Wall Thickness): | 1/8 In. |

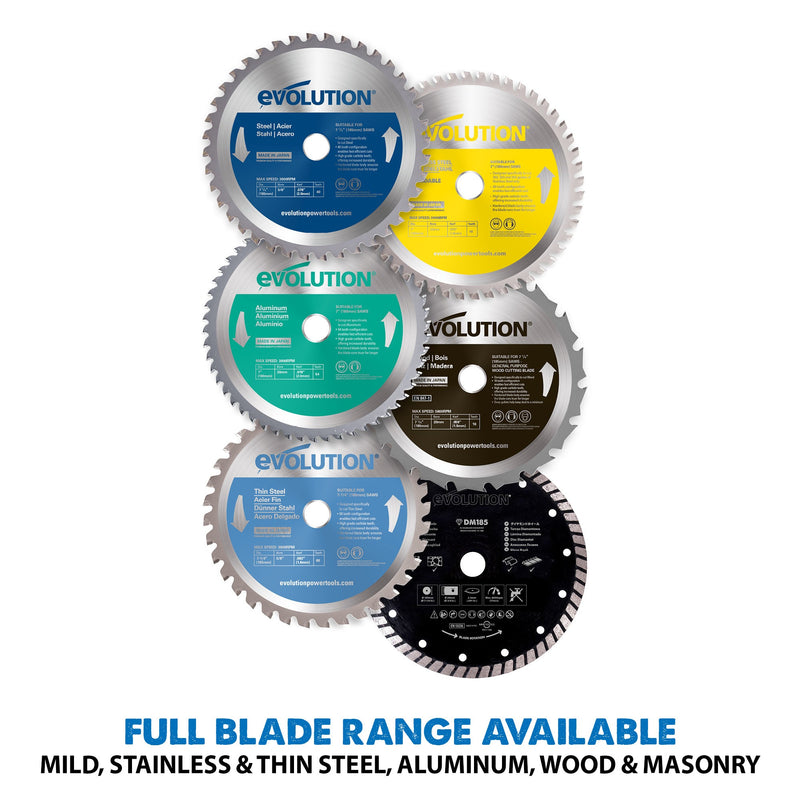

Compatible Blades
- 7-1/4 In. Mild Steel Cutting Blade (185BLADEST)
- 7-1/4 In. Stainless Steel Cutting Blade (185BLADESSN)
- 7-1/4 In. Thin Steel Cutting Blade ( 7-1/4BLADETS)
Specifications
Machine Spec
| Motor (120V 60Hz): | 15A |
| Speed No Load: | 3700 rpm |
| Max. Bevel (Left): | 45° |
| Circular Saw Base: | Pressed Steel |

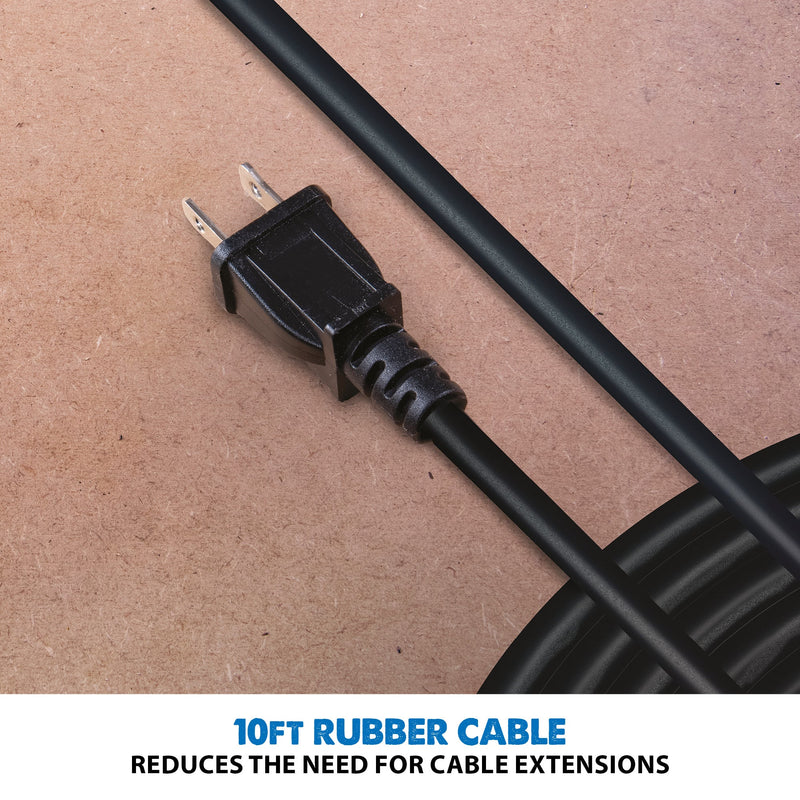

| Cord Length: | 10ft |
Blade Spec
| Blade Dia.: | 7-1/4 In. |
| No. of Teeth: | 40 |
| Bore: | 20 mm |
| Kerf: | .078 In. |
Dimensions & Weights
| Product Dimensions: | 10 In. x 12-1/8 In. x 9-1/2 In. |
| Packaging Dimensions: | 9 In. x 14-1/2 In. x 11 In. |
| Product Weight: | 11.4 lb |
Noise Data
| Sound Pressure Level LPA: | 92.9 dB(A) K:3 B(A) |
| Sound Power Level LWA: | 103.9 dB(A) K:3 dB(A) |
| Vibration: | ahM=3.041m/s2 ahW=3.697m/s2 |
Items Included
| 7-1/4 In. 40 Tooth Mild Steel TCT Blade |

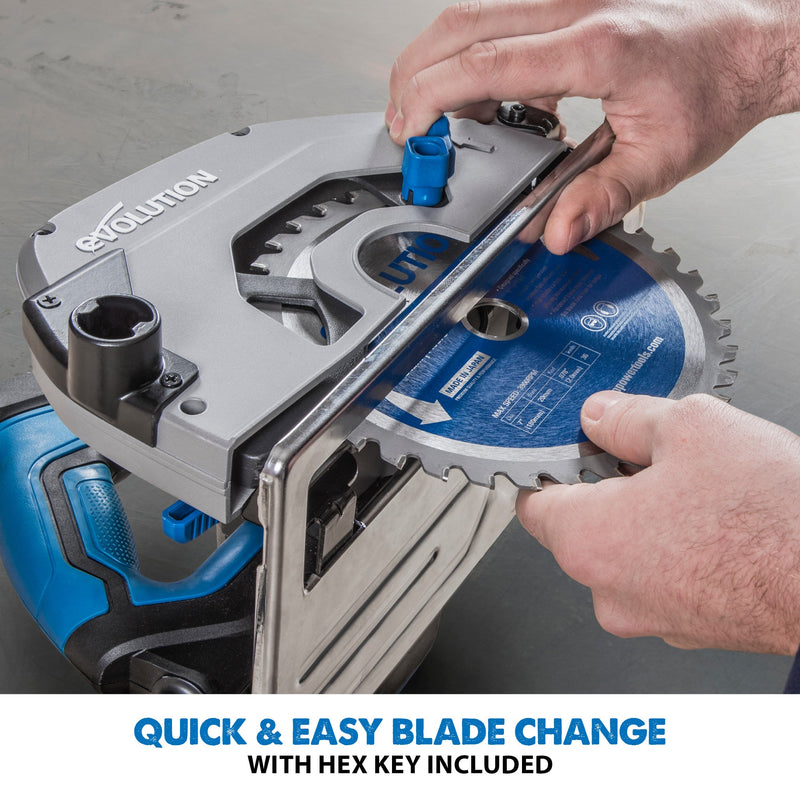

| Hex Key (Blade Change) |
| Parallel Edge Guide |
Documents
3-Year Guarantee
3-Year Guarantee
Please keep your proof of purchase / delivery.
- The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under guarantee will not extend the period of guarantee.
- The guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
- The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the guarantee period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
- Overseas users should contact the official importer for that country.
Evolution does not warrant the repair or replacement of a product when the following has occurred;
- Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
