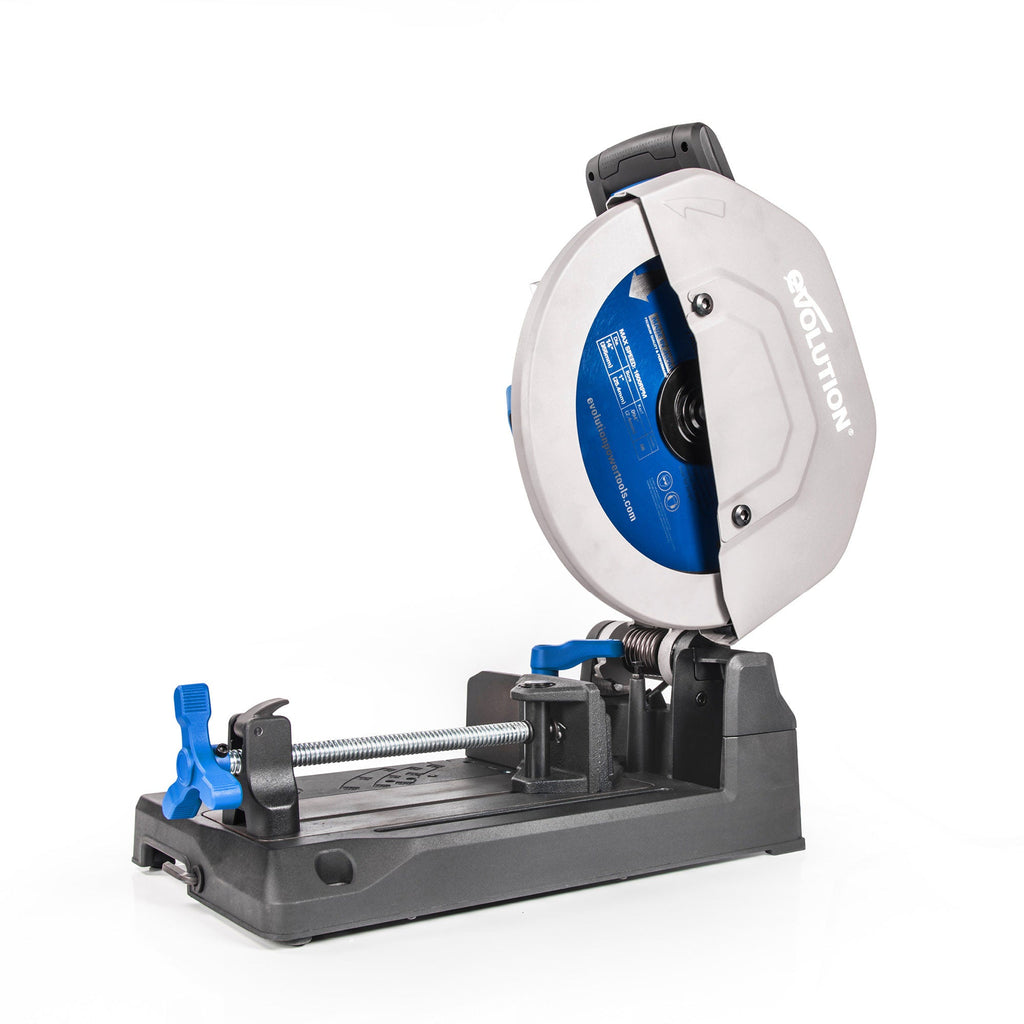

Evolution S380CPS: Metal Cutting Chop Saw With 14 In. Mild Steel Blade | 15 In. Blade Can Be Fitted
Evolution S380CPS: Metal Cutting Chop Saw With 14 In. Mild Steel Blade | 15 In. Blade Can Be Fitted
SKU: S380CPS
EAN/UPC: 849713074324
- Cast Aluminum Base.
- Quick-release vise for fast & secure clamping.
- Accurate & durable cast iron vise.
- Miter saw, 0-45° angle capability.
Specifications
| Blade Size | 14" |
| Power | Corded |
| Max Mitre |
|
Evolution S380CPS: Metal Cutting Chop Saw With 14 In. Mild Steel Blade | 15 In. Blade Can Be Fitted
$699.00
New Lower Price
Out of stock
Frequently Bought Together
Videos
- Description
- Specifications
- Cutting Capacities
- 3 Years Warranty
- Downloads
Description
S380CPS 15in. Metal Cutting Chop Saw with Mild Steel Blade. Supplied with a 14” (355mm) blade. Capable of fitting a 15” (380mm) mild steel cutting blade
- Heavy-duty cast aluminum base with integrated wear plate & bench mounting holes.
- Quick-release vice with robust square-threaded rod for fast & secure clamping.
- Accurate & durable cast steel vice with 0° - 45° miter capacity & locking pin.
- Compact design with a head lock down pin & carry handle for easy transportation.
- Chip collection tray for a cleaner, safer working environment.
- Ergonomic, ambidextrous trigger with comfortable textured grip.
- Attachable ‘v’ shape block included for secure clamping of round & square tube.

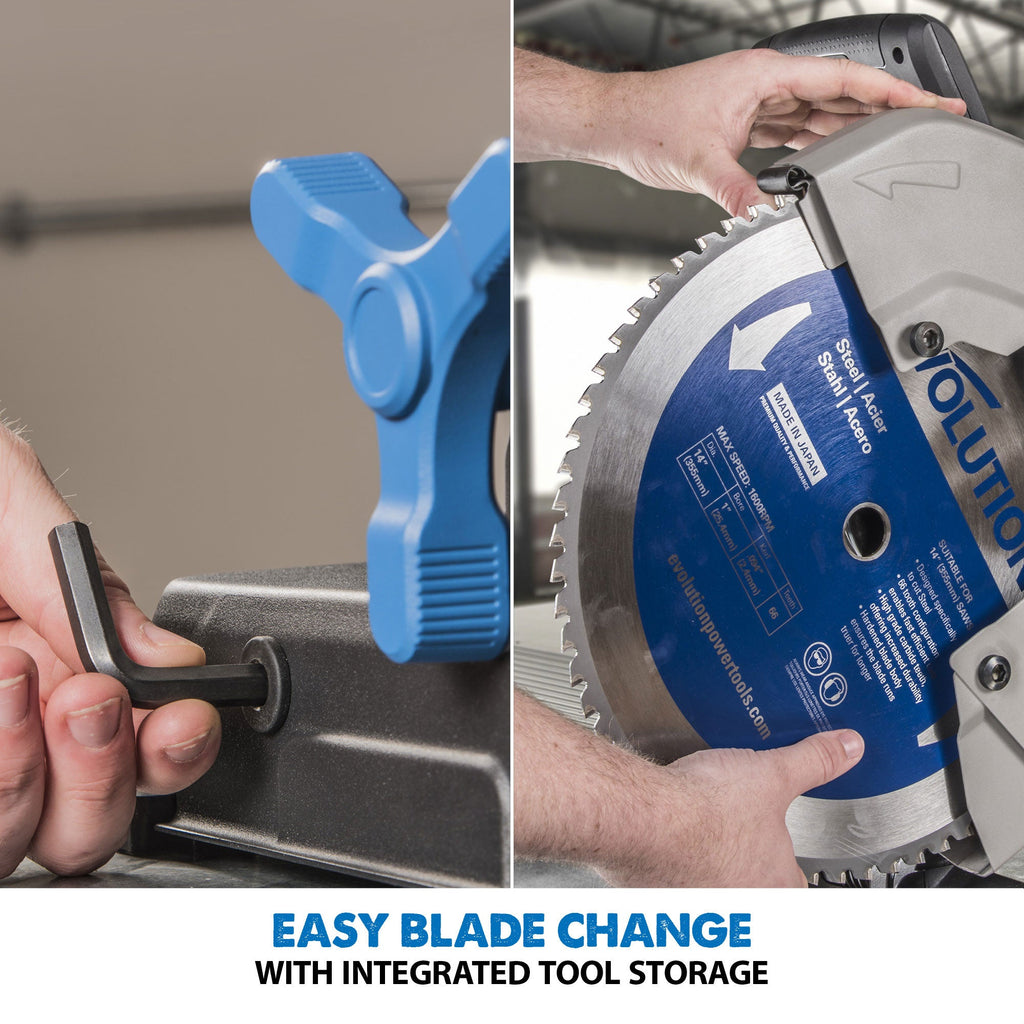

- Easy blade change with integrated tool storage.
Specifications
Machine Spec
| Motor (120V 60Hz): | 15A |
| Speed No Load: | 1450 rpm |
| Max. Bevel (Left): | 45° |
| Cable Length: | 10 ft |
Blade Spec
| Blade Dia.: | 14 In. (Supplied with a 14” (355mm) blade. Capable of fitting a 15” (380mm) mild steel cutting blade) |
| No. of Teeth: | 66 |
| Bore: | 1 In. |
| Kerf: | .094 In. |
Items Included
| 66 Tooth Mild Steel TCT Blade |
| Hex Key 5/16" (8mm) (Blade Change) |
| V-Block |
Cutting Capacities
| Mild Steel Plate (Max Thickness): | 1/2 In. |
| Stainless Steel Plate (Max Thickness): | 13/64 In. |
| Square Tube at 90° (Mild Steel): | 5 x 5 In. |
| Square Tube at 45° (Mild Steel): | 3-1/2 x 3-1/2 In. |
| Rectangle Tube at 90° (Mild Steel): | 3-3/4 x 7-1/8 In. |
| Rectangle Tube at 45° (Mild Steel): | 3-1/8 x 4-3/8 In. |
| Round Tube at 90° (Mild Steel): | 5-1/8 In. |
| Round Tube at 45° (Mild Steel): | 4-1/8 In. |
| Minimum Cut Off Piece Length: | 5/16 In. |
3 Years Warranty
Please keep your proof of purchase / delivery.
- The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under warranty will not extend the period of warranty.
- The warranty provides benefits which are additional to and do not affect your statutory rights as a consumer.
- The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the warranty period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
- Overseas users should contact the official importer for that country.
Evolution does not warrant the repair or replacement of a product when the following has occurred;
- Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
Description
Description
S380CPS 15in. Metal Cutting Chop Saw with Mild Steel Blade. Supplied with a 14” (355mm) blade. Capable of fitting a 15” (380mm) mild steel cutting blade
- Heavy-duty cast aluminum base with integrated wear plate & bench mounting holes.
- Quick-release vice with robust square-threaded rod for fast & secure clamping.
- Accurate & durable cast steel vice with 0° - 45° miter capacity & locking pin.
- Compact design with a head lock down pin & carry handle for easy transportation.
- Chip collection tray for a cleaner, safer working environment.
- Ergonomic, ambidextrous trigger with comfortable textured grip.
- Attachable ‘v’ shape block included for secure clamping of round & square tube.
- Easy blade change with integrated tool storage.
Specifications
Specifications
Machine Spec
| Motor (120V 60Hz): | 15A |
| Speed No Load: | 1450 rpm |
| Max. Bevel (Left): | 45° |
| Cable Length: | 10 ft |
Blade Spec
| Blade Dia.: | 14 In. (Supplied with a 14” (355mm) blade. Capable of fitting a 15” (380mm) mild steel cutting blade) |
| No. of Teeth: | 66 |
| Bore: | 1 In. |
| Kerf: | .094 In. |
Items Included
| 66 Tooth Mild Steel TCT Blade |
| Hex Key 5/16" (8mm) (Blade Change) |
| V-Block |
Cutting Capacities
Cutting Capacities
| Mild Steel Plate (Max Thickness): | 1/2 In. |
| Stainless Steel Plate (Max Thickness): | 13/64 In. |
| Square Tube at 90° (Mild Steel): | 5 x 5 In. |
| Square Tube at 45° (Mild Steel): | 3-1/2 x 3-1/2 In. |
| Rectangle Tube at 90° (Mild Steel): | 3-3/4 x 7-1/8 In. |
| Rectangle Tube at 45° (Mild Steel): | 3-1/8 x 4-3/8 In. |
| Round Tube at 90° (Mild Steel): | 5-1/8 In. |
| Round Tube at 45° (Mild Steel): | 4-1/8 In. |
| Minimum Cut Off Piece Length: | 5/16 In. |
3 Years Warranty
3 Years Warranty
Please keep your proof of purchase / delivery.
- The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under warranty will not extend the period of warranty.
- The warranty provides benefits which are additional to and do not affect your statutory rights as a consumer.
- The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the warranty period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
- Overseas users should contact the official importer for that country.
Evolution does not warrant the repair or replacement of a product when the following has occurred;
- Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
